Part number
2TLA020051R5400
$117.44 Critical stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Eden

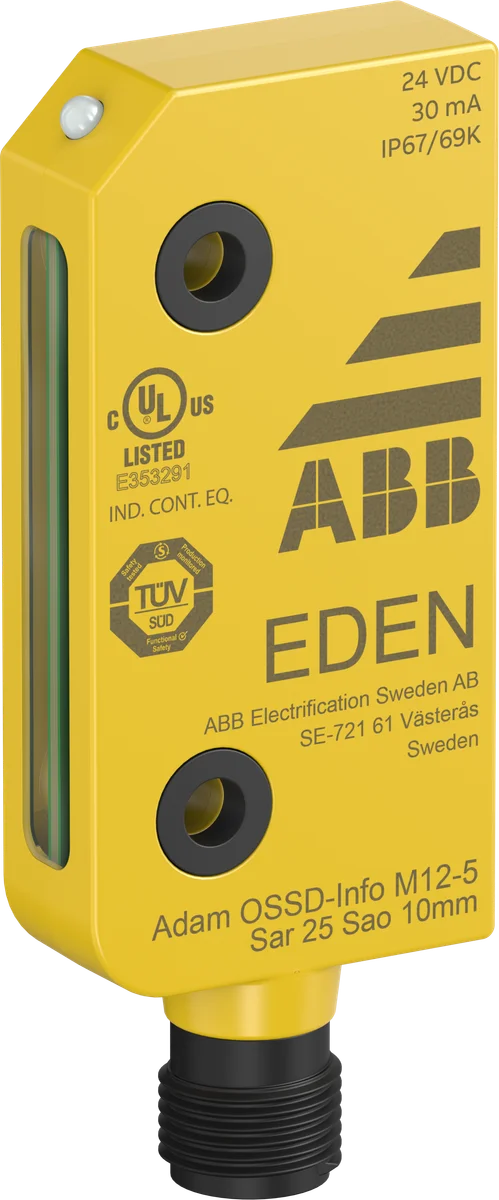

ABB 2TLA020051R5400 Adam OSSD-Info M12-5 Eden Series Magnetic Proximity Switch 30×75.2×12mm Safety Sensor

Mounting Type
Not flat
EAN
7350024480337
Description

About the 2TLA020051R5400

The ABB Adam OSSD-Info M12-5 (SKU: 2TLA020051R5400) is a magnetic proximity switch from the Eden Series, engineered for safety-critical industrial automation applications. Featuring OSSD (Output Signal Switching Device) outputs and an M12 5-pin connector interface, this compact 30×75.2×12mm sensor delivers reliable non-contact position detection for machine guarding, access control, and safety interlock systems. Weighing just 26 grams, the Adam OSSD-Info M12-5 is designed for seamless integration into space-constrained control panels and machinery.

Certifications & Standards

  • UL: Listed to Underwriters Laboratories safety standards for the North American market
  • CSA: Certified by the Canadian Standards Association for use in Canada
  • cULus: Combined UL and CSA certification for both US and Canadian markets
  • CE: Compliant with European Union safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed marking for Great Britain market compliance
  • CCC: China Compulsory Certification for the Chinese market
  • RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances
  • WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

  • Machine Guarding: Non-contact safety door and guard monitoring on industrial machinery
  • Access Control Interlocks: Safety interlock detection for protective enclosures and gates
  • Automated Production Lines: Position detection and status feedback in automated manufacturing environments
  • Robotics & Handling Systems: Reliable magnetic sensing for robotic cell safety zones
  • Control Panel Integration: Compact form factor ideal for space-constrained panel installations
Specification

Full specification

55 values · Last verified 30 Oct 2026

Installation 1

Mounting Type Not flat

Dimensions 4

Product Net Depth / Length 12 mm
Product Net Height 75.2 mm
Product Net Width 30 mm
Product Net Weight 0.026 kg

Safety Information 4

Certification Agency TÜV Süd
Safety Category 4
Performance Level (PL) Up to e
Safety Integrity Level (SIL) 3
Show all 55 specifications ↓ Show less ↑46 more values in Identification, Technical, Technical UL/CSA, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 14

Part number 2TLA020051R5400
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7350024480337
eCl@ss 27272402
Minimum Order Quantity 1 piece
Customs Tariff Number 8536508000
Product Main Type Eden
Product Name Sensor
Function Non-contact safety sensor used as interlocking device - Actuator to be ordered separately
Sub-Function Info signal
Status Indicator Yes

Technical 7

Communication Interface OSSD
Connection Configuration M12-5 male
Number of Outputs Non-Failsafe, Undelayed Contacts 0, Non-Failsafe, Undelayed Semiconductors 1
Operating Distance (Sn) 15 mm
PCB Coated No
Probability of Dangerous Failure per Hour (PFDH) 4.5 10-9 hour
Rated Control Supply Voltage (Us) 24 V DC

Technical UL/CSA 1

Enclosure Type UL/CSA 4X

Environmental 4

Ambient Air Temperature Operation -40 ... 70 °C, Storage -40 ... +70 °C
Degree of Protection IP67, IP69K
Material Housing: Plastic (PBT), Coating housing: Uncoated, Moulding: Epoxy
Operating Humidity (RHamb) No Icing, No Condensation 35 … 85 %

Material Compliance 6

REACH Declaration 2CMT2022-006480
RoHS Declaration 2CMT2022-006499
RoHS Information No declaration needed
Toxic Substances Control Act - TSCA 2CMT2023-006522
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 4

eClass V11.0 : 27272402
ETIM 7 EC002544 - Magnetic proximity switch
UNSPSC 41111916
E-Number (Sweden) 3830215

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 0.016 m
Package Level 1 Depth / Length 0.075 m
Package Level 1 Height 0.075 m
Package Level 1 Gross Weight 0.052 kg
Package Level 1 EAN 7350024480337
Shipping weight 0.052 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Critical stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2TLA020051R5400

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UL
Quick answers

Questions about the 2TLA020051R5400

What is the HS code of 2TLA020051R5400 for customs?

The tariff (HS) code on file for 2TLA020051R5400 is 8536508090.

What is the EAN of 2TLA020051R5400?

The EAN (GTIN) of 2TLA020051R5400 is 7350024480337.

Where does 2TLA020051R5400 ship from, and how fast?

2TLA020051R5400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
