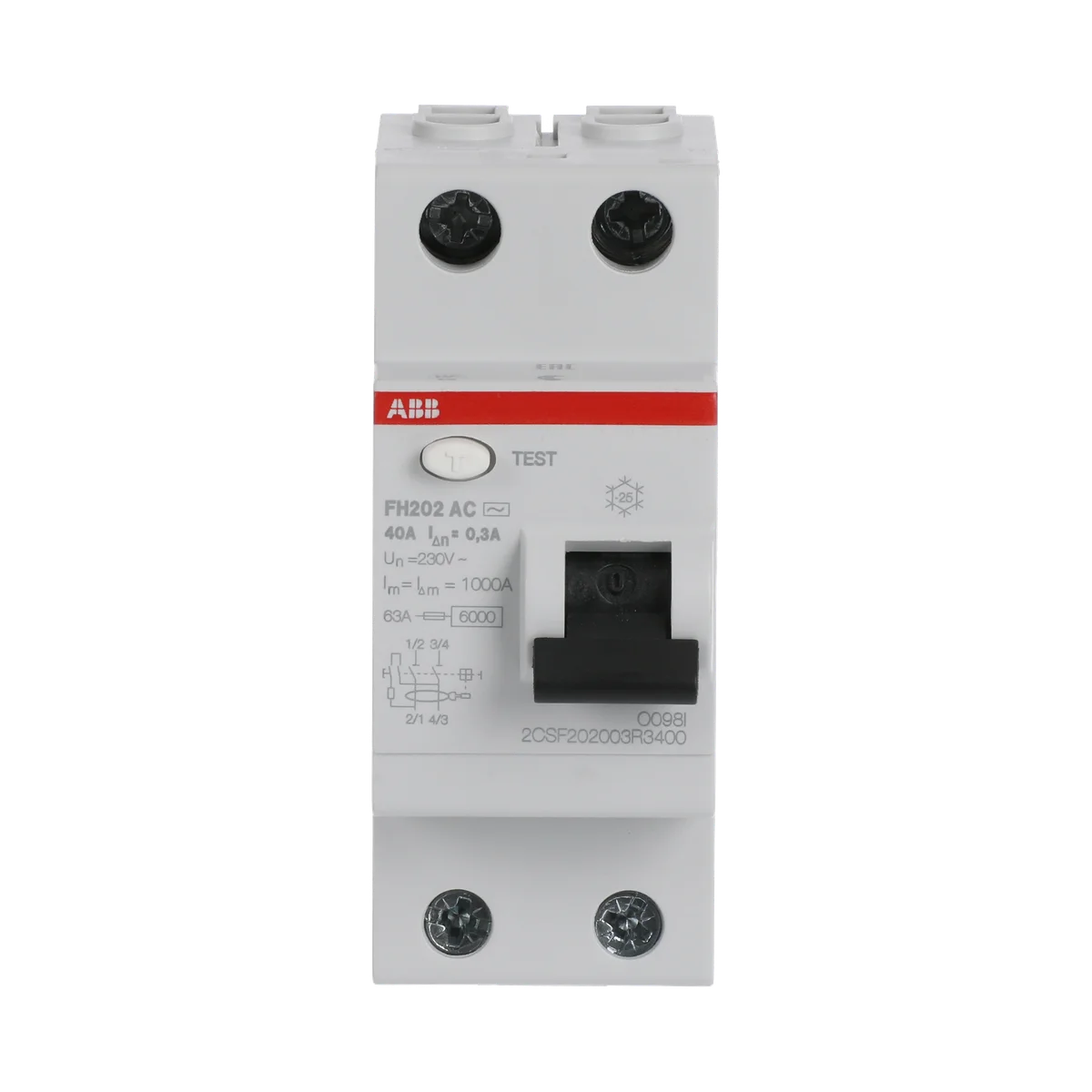

ABB 2CSF202003R3400 FH202 AC-40/0.3 2P 40A 300mA DIN-Rail Residual Current Circuit Breaker RCCB

The ABB FH202 AC-40/0.3 (SKU: 2CSF202003R3400) is a 2-pole 40 A residual current circuit breaker (RCCB) from the ABB FH200 series, designed to provide reliable earth-fault protection in residential and light commercial installations. Rated at 300 mA sensitivity and mounting directly onto standard DIN-rail, this RCCB detects leakage currents and disconnects the circuit to protect personnel and equipment from electric shock hazards. Compact at 35 mm × 85 mm × 69 mm and weighing just 200 g, the FH202 AC-40/0.3 is an ideal choice for space-constrained distribution boards.

Technical Specifications

Certifications & Standards

• IEC 61008: International standard for residual current operated circuit-breakers without integral overcurrent protection
• EN 61008: European harmonised standard for RCCBs — equivalent to IEC 61008
• IEC/EN 61008: Combined IEC and EN designation confirming dual compliance for RCCBs
• IEC 60898-1: Standard for circuit-breakers for overcurrent protection in household and similar installations
• IEC/EN 60664-1: Insulation coordination standard for equipment within low-voltage supply systems
• EN 60664-1: European harmonised insulation coordination standard for low-voltage installations
• EN45555: European standard for general requirements on end-of-life treatment of electrical and electronic equipment
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH Regulation (EC) No 1907/2006 on chemical safety
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU
