Part number
2CDS381001R0404
Model no
S301P-C40
$36.35 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
S300P

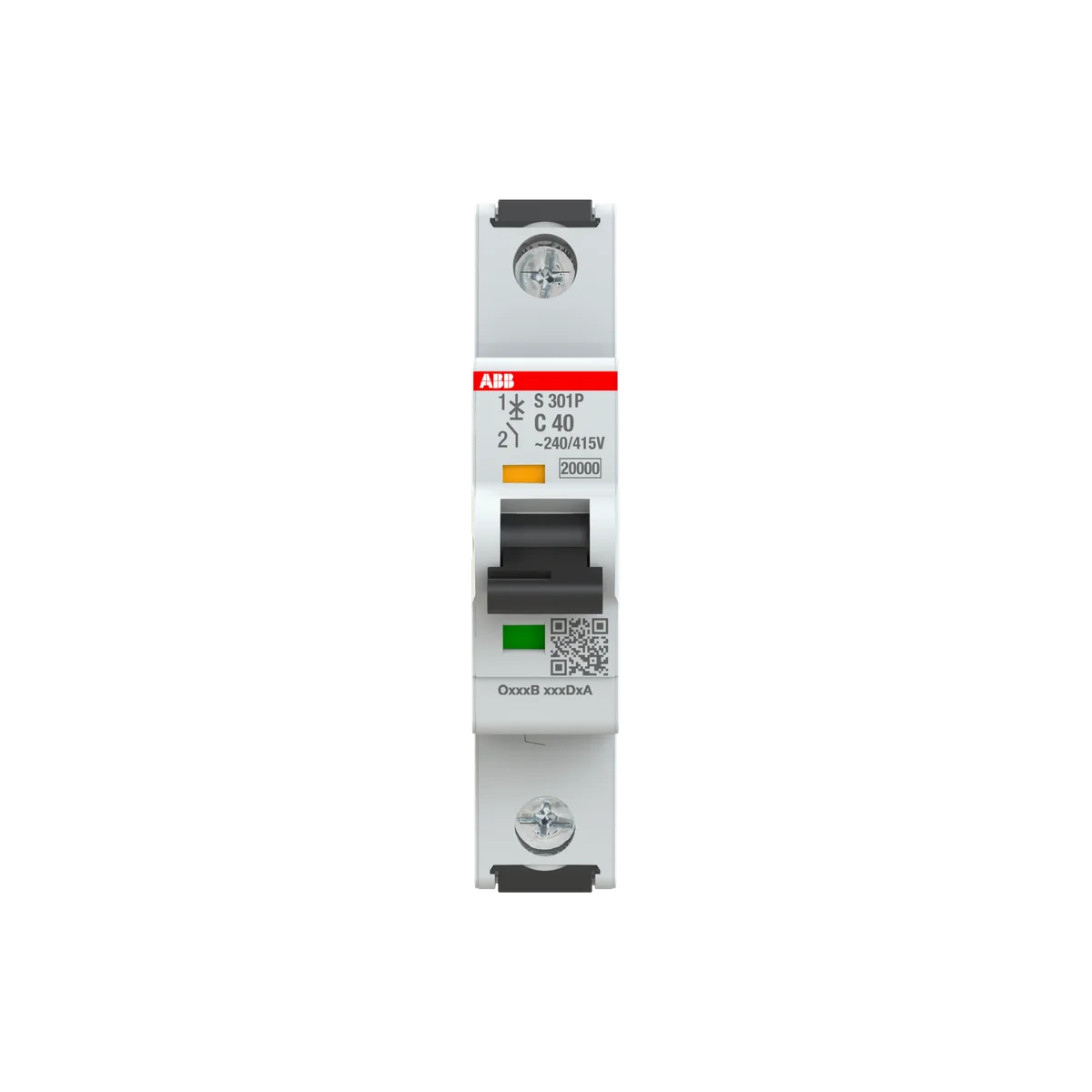

ABB 2CDS381001R0404 S301P-C40 1P 40A 20kA C-Curve Miniature Circuit Breaker

Rated current
40 A
Poles
1P
Breaking capacity
(240) 25 kA
EAN
4016779080194
Other ratings in S300P All 4 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
20 2CDS381001R0204 Critical stock $28.30
25 2CDS381001R0254 Critical stock $28.30
32 2CDS381001R0324 Critical stock $31.82
40 2CDS381001R0404This part Low stock $36.35
Description

About the S301P-C40

The ABB S301P-C40 (SKU: 2CDS381001R0404) is a high-performance 1-pole 40 A miniature circuit breaker (MCB) from the S300P series, engineered for reliable overcurrent and short-circuit protection in industrial control panels and commercial electrical installations. With a breaking capacity of 20 kA and C-curve tripping characteristic, the S301P-C40 is suited for protecting circuits with moderate inrush currents, including motor feeders, lighting circuits, and general distribution boards. Its compact 17.5 mm width optimises DIN rail space in high-density switchgear assemblies.

Certifications & Standards

  • IEC/EN 60898-1: Miniature circuit breakers for household and similar installations
  • IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers
  • IEC 60068-2: Environmental testing standard compliance
  • UL 1077: Supplementary protectors for use in electrical equipment (UL listed)
  • CSA 22.2 No. 235: Canadian Standards Association supplementary protectors
  • CE: European Conformity — meets EU electrical safety and EMC directives
  • UKCA: UK Conformity Assessed — approved for Great Britain market
  • VDE: Verband der Elektrotechnik certified for German/European markets
  • CCC: China Compulsory Certification for the Chinese market
  • EAC: Eurasian Conformity mark for Eurasian Economic Union markets
  • EN 60664: Insulation coordination for equipment within low-voltage systems
  • EN 45555: General methods for the assessment of the ability to recover resources from electrical and electronic equipment
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals compliance
  • WEEE: Waste Electrical and Electronic Equipment Directive compliance
Specification

Full specification

81 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (240 V AC) 25 kA, (72 V DC) 25 kA, (230 V) 25 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (240 V AC) 10 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 14 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 240 V AC, acc. to IEC 60947-2 240 V AC
Operational Voltage Maximum (Incl. Tolerance) 254 V AC, Maximum 254 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Input Voltage Type AC/DC
Rated Current (In) 40 A
Rated Short-Circuit Capacity (AC) 20 kA, (240 / 415 V AC) 20 kA, (400 V) 25 kA
Rated Frequency (f) 50 / 60 Hz, DC
Power Loss 2.9 W, at Rated Operating Conditions per Pole 2.9 W
Overvoltage Category IV

Design 1

Housing Material Insulation Group I, RAL 7035
Show all 81 specifications ↓ Show less ↑49 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS381001R0404
Type designation S301P-C40
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779080194
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units box 10 piece
Package Level 1 Gross Weight 1.32 kg
E-Number (Sweden) 2101039

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 277 V AC
Interrupting Rating acc. to UL1077 (277 V AC) 10 kA, (60 V DC) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 6

Ambient Air Temperature Operation -40 ... +70 °C, Storage -55 ... +70 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 3 shocks 18 ms

Dimensions 7

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 88 mm
Product Net Depth / Length 67.6 mm
Product Net Weight 0.128 kg
Pole Net Weight 0.124 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAF617138_EPLAN

Installation 3

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any
Grid Distance 90 mm

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency CSA, IEC, EN, UL
Standardization Body EN, IEC, UL, CSA

Logistics 4

Shipping weight 1.29 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS381001R0404

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 4 ratings in S300P

Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
20 A 2CDS381001R0204 S301P-C20 Critical stock $28.30
25 A 2CDS381001R0254 S301P-C25 Critical stock $28.30
32 A 2CDS381001R0324 S301P-C32 Critical stock $31.82
40 A 2CDS381001R0404 This part S301P-C40 Low stock $36.35
Certifications

Certifications and standards

  • CE
  • RoHS
  • VDE
  • CSA 22.2 No. 235
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S301P-C40

What is the rated current of S301P-C40?

The rated current of S301P-C40 is 40 A.

What is the HS code of S301P-C40 for customs?

The tariff (HS) code on file for S301P-C40 is 853620.

What is the EAN of S301P-C40?

The EAN (GTIN) of S301P-C40 is 4016779080194.

Where does S301P-C40 ship from, and how fast?

S301P-C40 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
