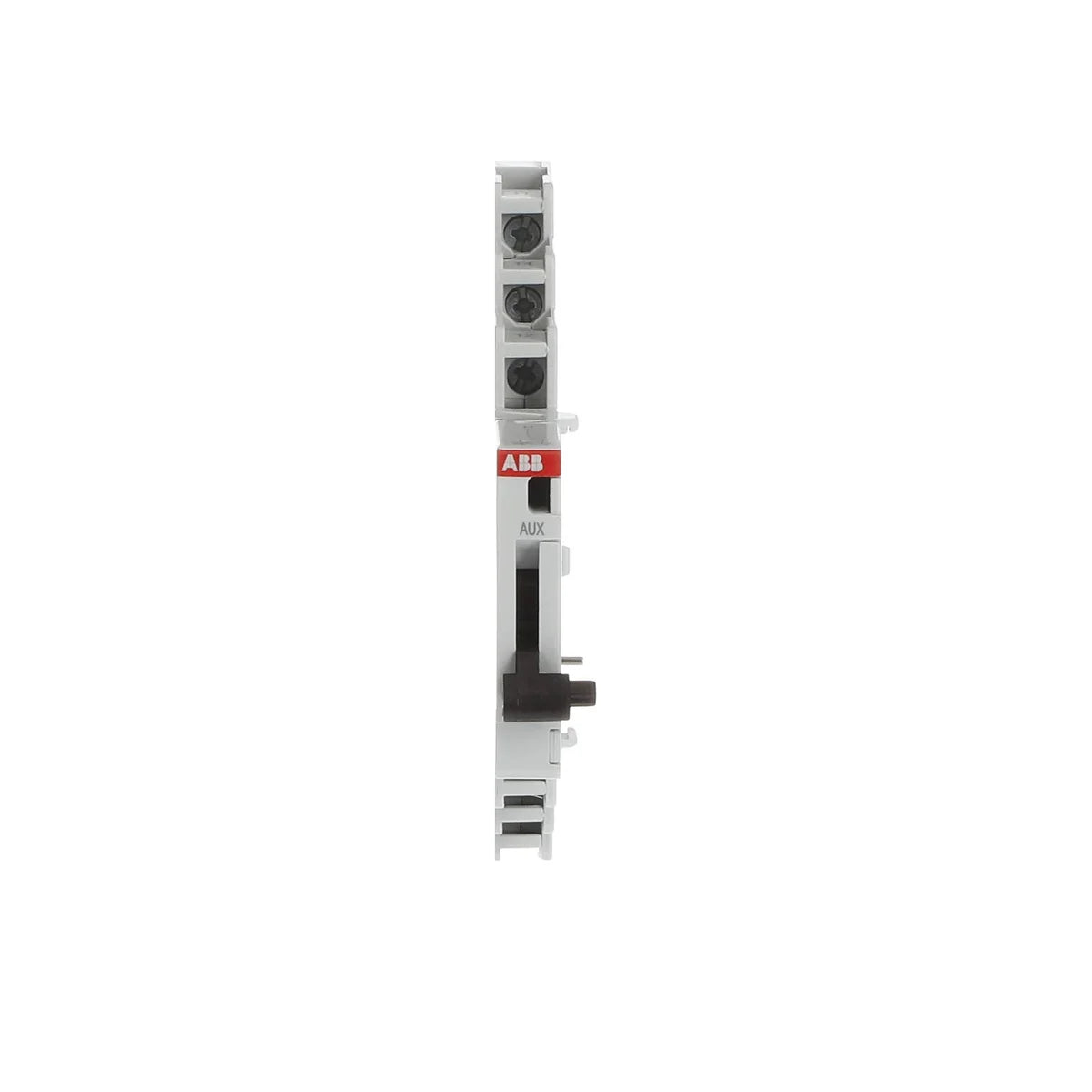

ABB 2CCS800900R0011 S800-AUX Auxiliary Contact Block DIN-Rail Mount for S800 Series Circuit Breakers

The ABB S800-AUX (SKU: 2CCS800900R0011) is a DIN-rail mounted auxiliary contact block designed for use with ABB's S800 series miniature circuit breakers, providing essential status signalling and remote monitoring capability in industrial control panels and distribution boards. Compact at just 9 mm wide, the S800-AUX integrates directly alongside S800 series breakers to report open/closed switching states to control systems, PLCs, and supervisory equipment. Weighing only 50 g, it is engineered for panel-space efficiency without compromising reliability.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with EU Restriction of Hazardous Substances Directive — no restricted heavy metals or substances
• REACH: Compliant with EU REACH regulation on chemical safety and substance management
• IEC 60947-5-1 / UL 489: Meets international standards for control circuit devices and switching elements, as well as UL 489 for molded-case circuit breakers
• IEC 60947-5: Compliant with IEC standard for low-voltage switchgear and controlgear — control circuit devices and switching elements
• WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling

Applications & Use Cases

• Remote status monitoring of S800 series miniature circuit breakers in industrial control panels
• Fault indication and alarm signalling in building management and automation systems
• PLC input signal generation for breaker trip or open/close status in motor control centres
• Integration into supervisory control and data acquisition (SCADA) systems for real-time breaker state feedback
• Panel builders requiring compact auxiliary signalling alongside standard DIN-rail breaker assemblies
