Part number
1SEP101891R0002
Model no
XLP1-6BC
$127.35 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
EasyLine XLP

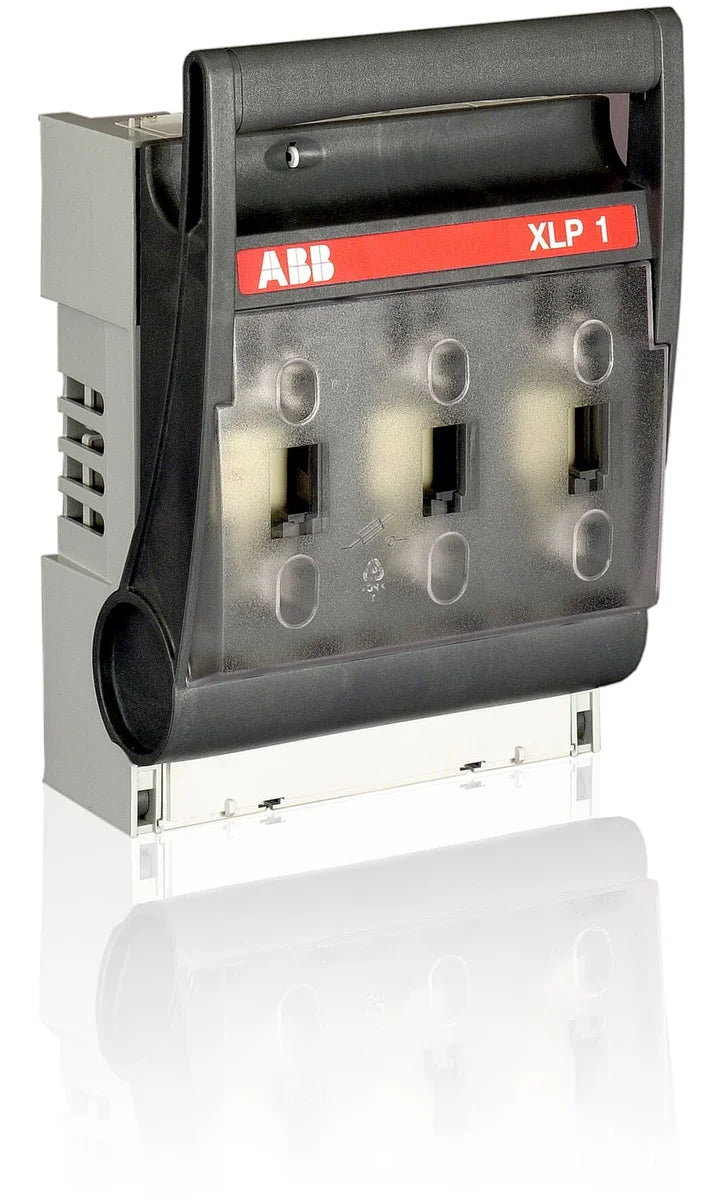

ABB 1SEP101891R0002 XLP1-6BC 3-Pole 250A Baseplate Mount EasyLine XLP Fuse Switch Disconnector

Rated current
250 A
Poles
3P
EAN
7025840013730
Description

About the XLP1-6BC

The ABB XLP1-6BC (SKU: 1SEP101891R0002) is a 3-pole, 250A fuse switch disconnector from the EasyLine XLP series, designed for reliable circuit isolation and overcurrent protection in industrial control panels. Combining switching and fuse protection in a single compact unit, the XLP1-6BC offers baseplate mounting and a robust build measuring 185 mm × 270 mm × 116 mm at just 1.83 kg, making it well-suited for high-density switchgear installations.

Certifications & Standards

  • RoHS: Compliant with the Restriction of Hazardous Substances Directive, ensuring environmentally responsible material composition
  • REACH: Compliant with EU REACH regulation for chemical substance safety
  • IEC 60947-3 / GB/T 14048.3: Meets international and Chinese national standards for disconnectors, switch-disconnectors, and fuse-combination units
  • IEC 60947: Compliant with the broader IEC low-voltage switchgear and controlgear standard series
  • WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

  • Main or sub-circuit isolation in industrial control panels and switchboards
  • Overcurrent and short-circuit protection with integrated fuse functionality in motor feeders
  • Baseplate-mounted installations in manufacturing, utilities, and infrastructure facilities
  • Distribution board protection where combined switching and fusing in a compact footprint is required
Specification

Full specification

53 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental 1

Degree of Protection IP30

Dimensions 4

Product Net Width 185 mm
Product Net Height 270 mm
Product Net Depth / Length 116 mm
Product Net Weight 1.83 kg
Show all 53 specifications ↓ Show less ↑47 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SEP101891R0002
Type designation XLP1-6BC
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7025840013730
ETIM class EC001040
eCl@ss 27371401
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099
Country of Origin Bulgaria, China

Technical 19

Device Type Manager (DTM) Fuseswitchdisconnector
Electronic Fuse Monitoring No
Fuse Size NH1
Fuse System DIN
Handle Type Front Cover 3P
Mounting Type Baseplate
Number of Poles 3P
Power Loss at Rated Load 7.5 W
Rated Conditional Short-Circuit Current (Inc) (690 V) 50 kiloampere rms
Rated Current (In) 250 A
Rated Frequency (f) Main Circuit 50/60 Hz
Rated Impulse Withstand Voltage (Uimp) Main Circuit 8 kV
Rated Operational Current AC-21B (Ie) (690 V) 200 A
Rated Operational Current AC-22B (Ie) (500 V) 250 A, (800 V) 250 A
Rated Operational Voltage 500 V AC, 690 V AC, 800 V AC
Rated Voltage (Ur) 500 V AC, 690 V AC, 800 V AC
Special Functions Not Included
Standards IEC60947-3, GB/T14048.3
Terminal Type Cable Clamp

External Classifications and Standards 5

ETIM 10 EC001040 - Fuse switch disconnector
UNSPSC 39121600
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden) 3171953

Logistics 11

Package Level 1 Units shrink-wrap 1 piece
Package Level 1 Width 185 mm
Package Level 1 Depth / Length 116 mm
Package Level 1 Height 270 mm
Package Level 1 Gross Weight 1.84 kg
Package Level 1 EAN 7025840013730
Package Level 2 EAN detach
Shipping weight 1.84 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SEP101891R0002

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • RoHS
  • IEC60947-3
  • GB/T14048.3
Quick answers

Questions about the XLP1-6BC

What is the rated current of XLP1-6BC?

The rated current of XLP1-6BC is 250 A.

What is the HS code of XLP1-6BC for customs?

The tariff (HS) code on file for XLP1-6BC is 85389099.

What is the EAN of XLP1-6BC?

The EAN (GTIN) of XLP1-6BC is 7025840013730.

Where does XLP1-6BC ship from, and how fast?

XLP1-6BC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
