Part number
1SEP101890R0002
Model no
XLP00-6BC
$52.51 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
EasyLine

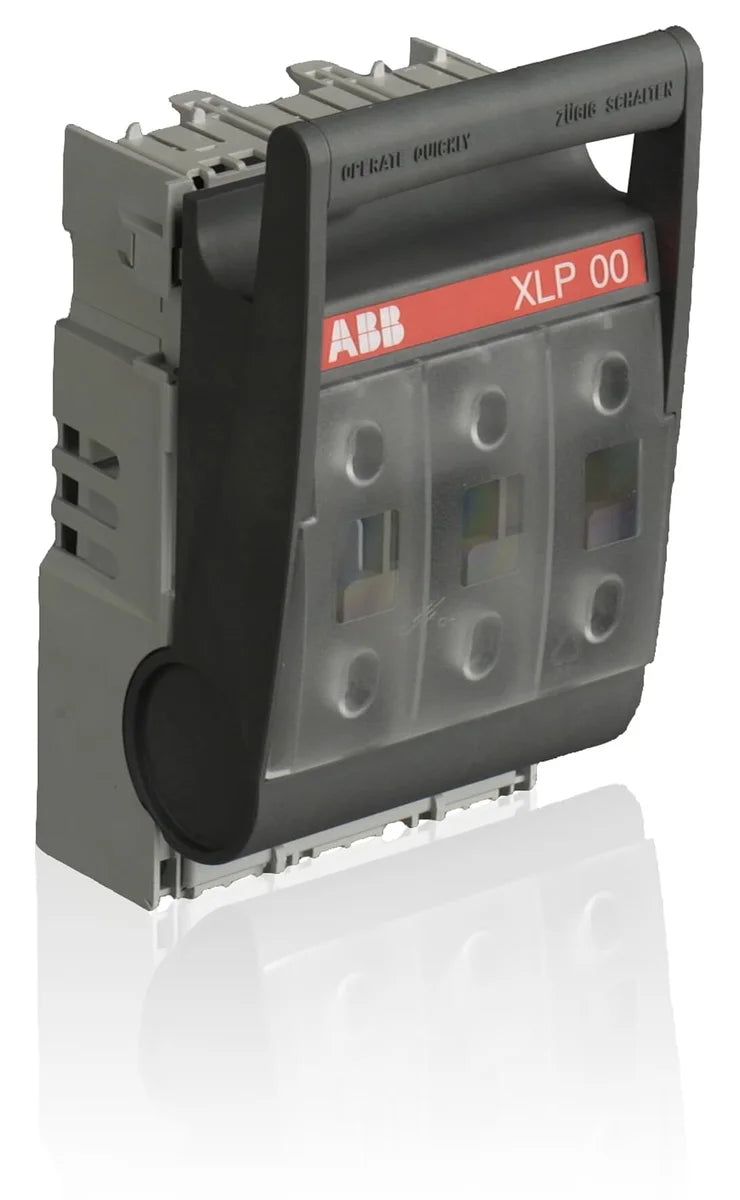

ABB 1SEP101890R0002 XLP00-6BC EasyLine 3-Pole 160A Baseplate Fuse Switch Disconnector

Rated current
160 A
Poles
3P
EAN
7025840013402
Other ratings in EasyLine All 4 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
100 1SEP201428R0002 In stock $45.80
160 1SEP101890R0002This part In stock $52.51
400 1SEP101892R0002 In stock $225.26
630 1SEP101975R0002 In stock $311.81
Description

About the XLP00-6BC

The ABB XLP00-6BC (SKU: 1SEP101890R0002) is a 3-pole 160A fuse switch disconnector from the EasyLine series, designed for reliable circuit isolation and overcurrent protection in industrial control panels and distribution boards. Mounted via baseplate, the XLP00-6BC provides safe, code-compliant disconnection in demanding industrial environments, combining switching and fusing functions in a compact 105mm × 187mm × 90mm footprint weighing just 0.57 kg.

Certifications & Standards

  • RoHS: Compliant with the Restriction of Hazardous Substances Directive, ensuring the product is free from restricted materials.
  • REACH: Compliant with EU REACH regulation on the registration, evaluation and authorisation of chemicals.
  • IEC 60947-3 / GB/T 14048.3: Designed and tested in accordance with the international and Chinese national standard for disconnectors, switch-disconnectors and fuse-combination units.
  • IEC 60947: Meets the broader IEC 60947 series of standards for low-voltage switchgear and controlgear.
  • EN 45555-94: Conforms to the general methods for the assessment of the ability of electrical and electronic products to be repaired, reused and recycled.
  • WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal and recycling.

Applications & Use Cases

  • Industrial control panels requiring safe, visible isolation of circuits up to 160A.
  • Distribution boards in manufacturing, process automation, and building services installations.
  • Motor feeder protection where combined switching and fusing in a single device is required.
  • Machine builder panels where compact, baseplate-mounted fuse switch disconnectors are specified.
  • Any application demanding IEC 60947-3 compliant switch-disconnector performance with integrated fuse protection.
Specification

Full specification

54 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental 1

Degree of Protection IP30

Dimensions 4

Product Net Width 105 mm
Product Net Height 187 mm
Product Net Depth / Length 90 mm
Product Net Weight 0.57 kg
Show all 54 specifications ↓ Show less ↑48 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 12

Part number 1SEP101890R0002
Type designation XLP00-6BC
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7025840013402
ETIM class EC001040
eCl@ss 27371401
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099
Country of Origin Bulgaria, China

Technical 20

Device Type Manager (DTM) Fuseswitchdisconnector
Electronic Fuse Monitoring No
Fuse Size NH00, NH000
Fuse System DIN
Handle Type Front Cover 3P
Mounting Type Baseplate
Number of Poles 3P
Power Loss at Rated Load 3.5 W
Rated Conditional Short-Circuit Current (Inc) (690 V) 50 kiloampere rms
Rated Current (In) 160 A
Rated Frequency (f) Main Circuit 50/60 Hz
Rated Impulse Withstand Voltage (Uimp) Main Circuit 8 kV
Rated Operational Current AC-21B (Ie) (690 V) 125 A
Rated Operational Current AC-22B (Ie) (500 V) 160 A, (800 V) 63 A, (1000 V) 125 A
Rated Operational Current AC-23B (Ie) (400V) 125 A
Rated Operational Voltage 400 V AC, 500 V AC, 690 V AC, 800 V AC, 1000 V AC
Rated Voltage (Ur) 400 V AC, 500 V AC, 690 V AC, 800 V AC, 1000 V AC
Special Functions Not Included
Standards IEC60947-3, GB/T14048.3
Terminal Type Cable Clamp

External Classifications and Standards 5

ETIM 10 EC001040 - Fuse switch disconnector
UNSPSC 39121600
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden) 2307311

Logistics 11

Package Level 1 Units shrink-wrap 1 piece
Package Level 1 Width 105 mm
Package Level 1 Depth / Length 90 mm
Package Level 1 Height 187 mm
Package Level 1 Gross Weight 0.63 kg
Package Level 1 EAN 7025840013402
Package Level 2 EAN detach
Shipping weight 0.63 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SEP101890R0002

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 4 ratings in EasyLine

Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
100 A 1SEP201428R0002 XLP000-6CC In stock $45.80
160 A 1SEP101890R0002 This part XLP00-6BC In stock $52.51
400 A 1SEP101892R0002 XLP2-6BC In stock $225.26
630 A 1SEP101975R0002 XLP3-6BC In stock $311.81
Certifications

Certifications and standards

  • RoHS
  • IEC60947-3
  • GB/T14048.3
Quick answers

Questions about the XLP00-6BC

What is the rated current of XLP00-6BC?

The rated current of XLP00-6BC is 160 A.

What is the HS code of XLP00-6BC for customs?

The tariff (HS) code on file for XLP00-6BC is 85389099.

What is the EAN of XLP00-6BC?

The EAN (GTIN) of XLP00-6BC is 7025840013402.

Where does XLP00-6BC ship from, and how fast?

XLP00-6BC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
