Part number
1SDA104802R1
Model no
AUX-C
$52.37 On request Dispatch — · From TürkiyeGet a Quote
XT6

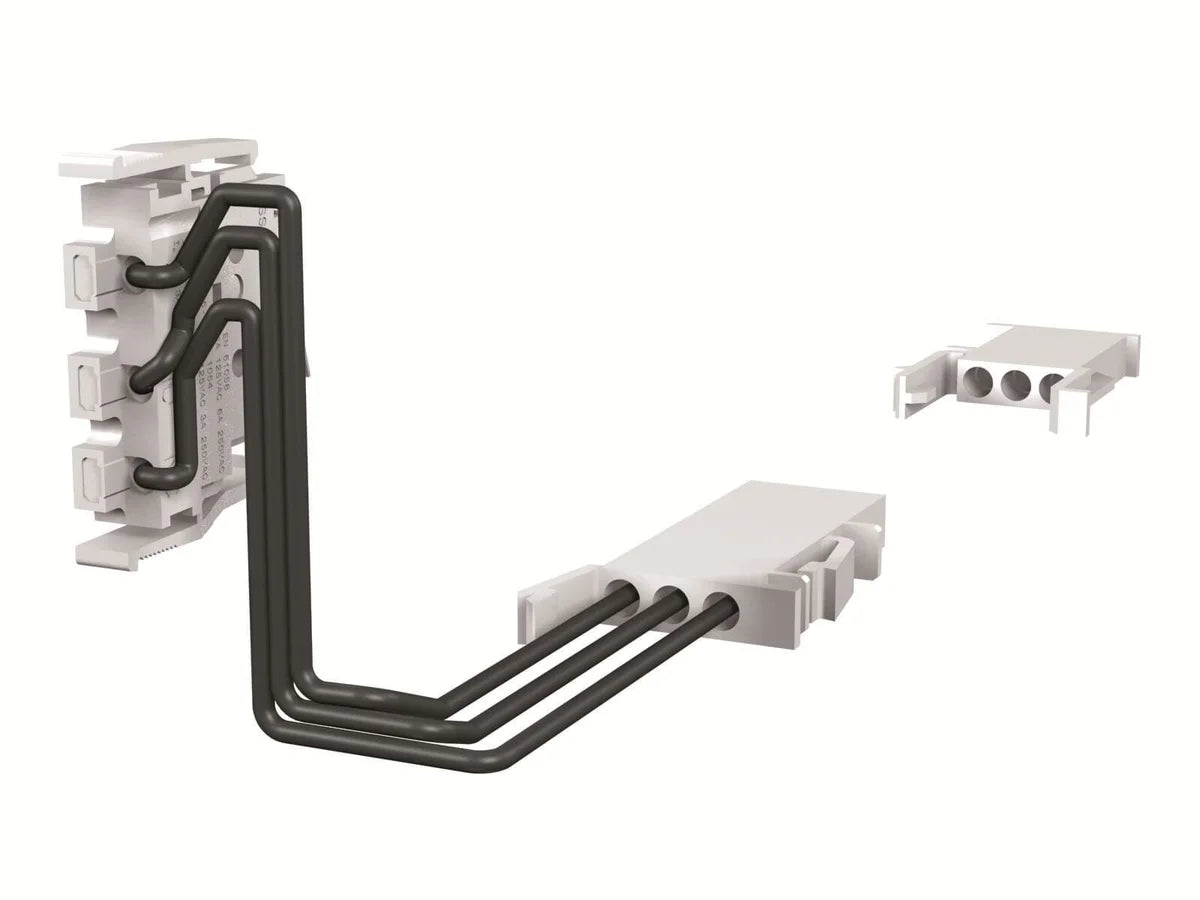

ABB 1SDA104802R1 AUX-C 1Q+1SY 250V AC/DC XT6 W Tmax XT Auxiliary Contact Block

Rated operational voltage
250–DC V DC
EAN
8015644068943
Description

About the AUX-C

The ABB 1SDA104802R1 AUX-C 1Q+1SY 250V AC/DC XT6 W is a plug-in auxiliary contact block designed for use with ABB Tmax XT6 series moulded case circuit breakers, providing 1 instantaneous signalling contact (1Q) plus 1 fault-trip signalling contact (1SY) rated at 250V AC/DC. This compact accessory enables remote monitoring of breaker status and fault conditions in control panels and industrial automation systems, making it an essential component for electrical engineers and panel builders requiring reliable breaker state feedback.

Certifications & Standards

  • CE: Compliant with European Union CE marking requirements
  • RoHS: Restriction of Hazardous Substances compliant
  • REACH: Compliant with EU REACH regulation on chemical substances
  • EU Directive 2011/65/EU & Amendment 2015/863: Compliant as of July 22, 2019
  • IEC 60947-2: Compliant with international standard for low-voltage switchgear and circuit breakers
  • UL489: Listed per UL standard for molded-case circuit breakers
  • WEEE: Compliant with Waste Electrical and Electronic Equipment directive

Applications & Use Cases

  • Remote status monitoring of ABB Tmax XT6 moulded case circuit breakers in control panels
  • Fault-trip indication in industrial automation and motor control centres (MCCs)
  • Integration with PLCs and SCADA systems for real-time breaker diagnostics
  • Building management systems (BMS) requiring circuit breaker open/close feedback
  • Panel builders and OEMs assembling switchgear for industrial and commercial installations
Specification

Full specification

37 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 1

Product Net Weight 0.085 kg

Additional Information 5

Product Main Type Accessories for Tmax XT
Product Name Accessory
Product Type Accessory
Suitable For XT6
Suitable for Product Class SACE Tamx XT
Show all 37 specifications ↓ Show less ↑30 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA104802R1
Type designation AUX-C
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644068943
ETIM class EC000041
eCl@ss 27371302
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Technical 5

Configuration Type Loose or configurable
Current Type AC/DC
Number of Auxiliary Contacts CO (SPDT) 2
Order Multiple 1 piece
Standards IEC60947-2, UL489

External Classifications and Standards 4

ETIM 10 EC000041 - Auxiliary contact block
UNSPSC 39121522
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27371302

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 110 mm
Package Level 1 Height 60 mm
Package Level 1 Depth / Length 140 mm
Package Level 1 Gross Weight 0.089 kg
Package Level 1 EAN 8015644068943
Shipping weight 0.089 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA104802R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC60947-2
  • UL489
Quick answers

Questions about the AUX-C

Which supply voltage is AUX-C rated for?

The rated operational voltage of AUX-C is 250–DC V DC.

What is the HS code of AUX-C for customs?

The tariff (HS) code on file for AUX-C is 85389099.

What is the EAN of AUX-C?

The EAN (GTIN) of AUX-C is 8015644068943.

Where does AUX-C ship from, and how fast?

AUX-C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
