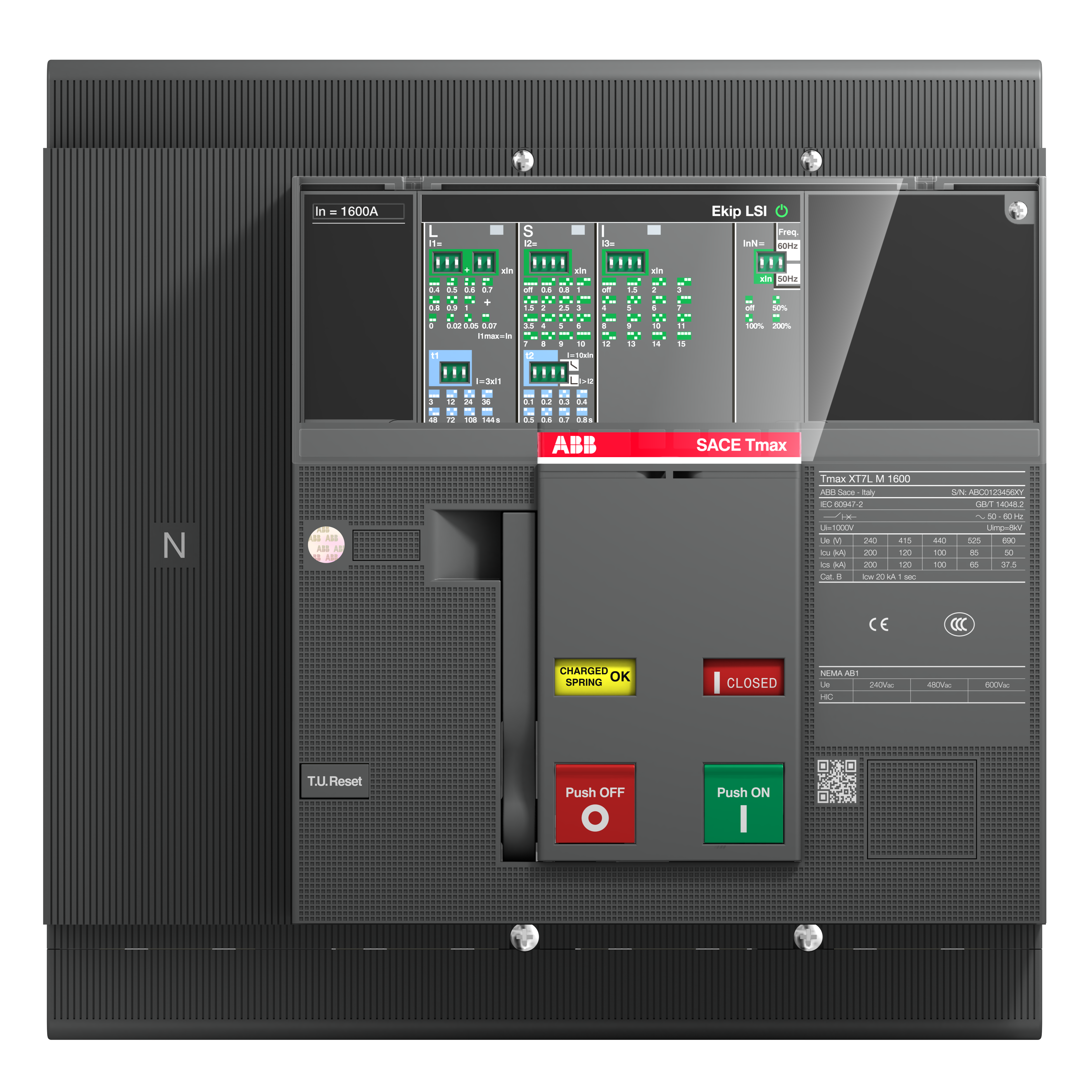

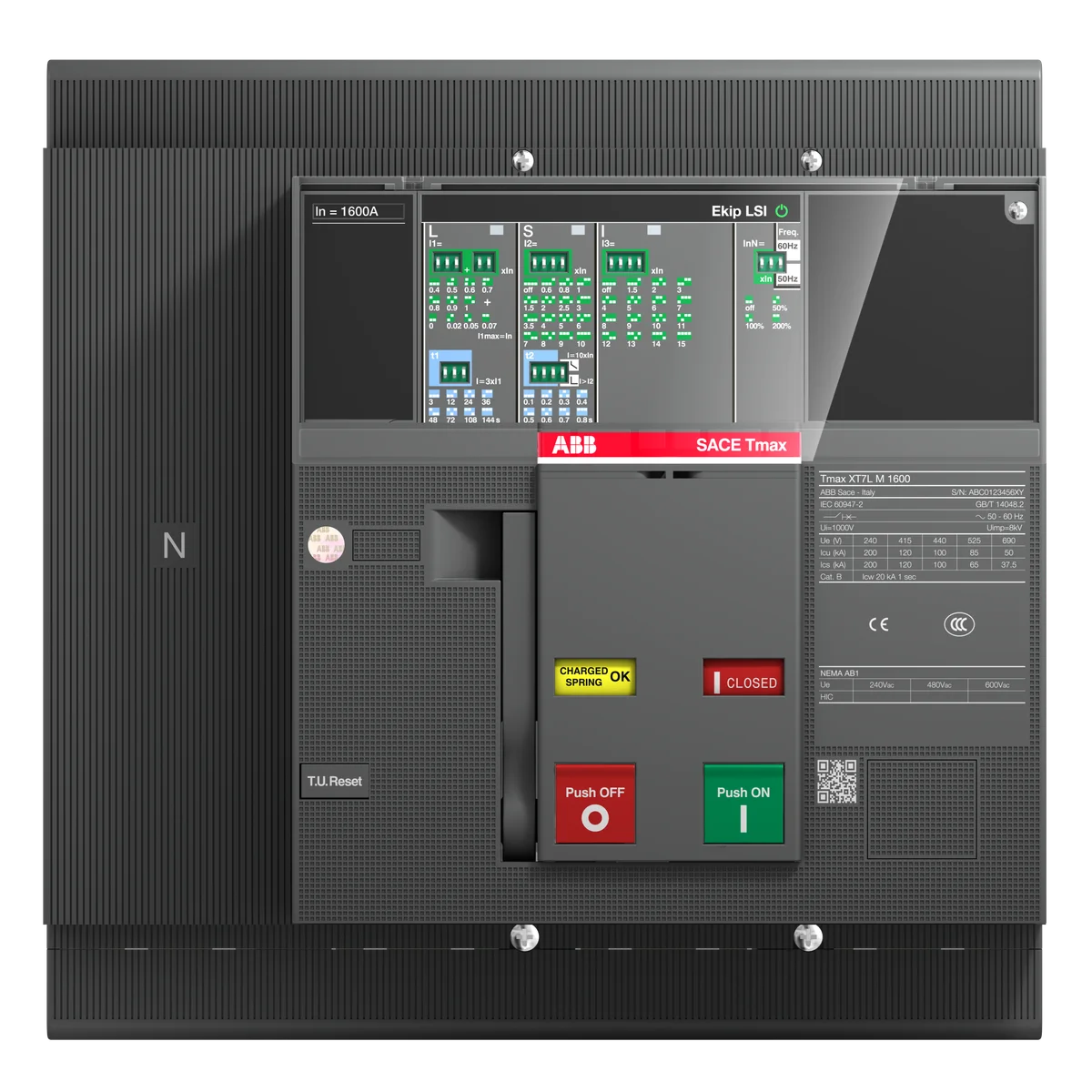

ABB 1SDA101655R1 XT7S M 1000 Ekip Dip LS/I In1000A 4p F F 4-Pole 1000A 50kA Fixed Moulded Case Circuit Breaker
Description
About the XT7S
About the XT7S
The ABB 1SDA101655R1, catalog number XT7S M 1000 Ekip Dip LS/I In1000A 4p F F, is a 4-pole 1000 A fixed-mount power circuit breaker from the Tmax XT7S series designed for transformer, generator, and installation protection. Featuring an Ekip Dip LS/I electronic trip unit with a rated current of 1000 A and a breaking capacity of 50 kA at 400 V AC, this breaker delivers robust short-circuit and overload protection in demanding industrial environments.
Certifications & Standards
- CE: Conforms to applicable EU harmonisation legislation for the European market
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances in electrical equipment
- REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical substances
- EU Directive 2011/65/EU: Restriction of hazardous substances directive — verified compliant
- EN 45555: Meets the general methods for the assessment of the ability of energy-related products to be repaired and reused
- IEC 60947-2: Designed and tested to the international standard for low-voltage circuit breakers
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for proper end-of-life disposal
Applications & Use Cases
- Transformer and generator feeder protection in industrial power distribution panels
- Main incoming and outgoing circuit protection in low-voltage switchgear assemblies
- Installation protection for heavy industrial loads requiring high breaking capacity
- Control panels in manufacturing plants, utilities, data centres, and infrastructure projects
- Applications demanding IEC 60947-2 certified 4-pole switching and protection up to 1000 A
Specification
Full specification
Material Compliance 2
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| Simplified SCIP | 656015ab-7b80-4d21-8491-d752366724f1 Germany, fc9c182d-206c-4584-bb67-15feb0f7805d Spain, f8cf1103-3a50-4516-a7fb-d094b3cb8b10 Belgium, 5d5325f2-7a05-4bab-8dec-0dfa2a437c89 France, 45dbe943-20c4-410f-8d51-5dd482ea92cf Germany, a1df8581-d33c-4d00-a04b-1b2fff443735 Germany, 04c83dbb-dfba-4386-9300-845a8d78f13b Hungary, 8b39afd9-5e71-4939-8c4f-30440ff63771 Poland, d6b74a4a-c06e-47b2-9570-ef84bb17325d France, bdbab549-c68d-4511-9912-7ed002598104 Sweden, 982d8cdd-137c-4d33-8016-3f9ee0df0902 Portugal, 8d0b542f-efff-497d-b5be-15af63e1e272 Greece, b5aed989-e224-482d-bba6-3f4450b9811c Netherlands, 1da381ac-bd0f-4466-a2ca-1ab0e0464927 Poland, 50c0ee5b-16d2-463b-b511-7f9a9d305d4a Sweden, e101df8a-71df-4716-bb54-24c668ec45b9 Bulgaria, ea978c9b-23c5-4b3d-a71d-ff233e7af560 Hungary, 894907c9-7744-48b2-9803-34de1015252f Norway, 55be0482-b408-4f35-95b0-917313d9ecd4 Germany, 2b61b649-4d1e-4eac-9460-14d406674e6e Poland, 5a6f2d93-01a1-4b79-9576-23b902e48d6c Germany, a44a551c-a379-49af-8631-07b4527bdd4e Belgium, b1f597bf-4b63-4bb6-9968-edf2b31c5d2e Finland, 530cb2db-9643-48e7-bff1-be032f28598a Czechia, 4a4f2681-15ca-4fc5-8a41-d87925755b4b Croatia, fbdd2e3e-24a2-46c7-b9d7-b9de6fd8049e Estonia, a979cd89-c47f-42a4-9be5-8d1eae3c81ad Denmark |
Environmental 1
| Ambient Air Temperature | Operation -40 ... 125 °C |
|---|
Dimensions 4
| Product Net Width | 280 mm |
|---|---|
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
Show all 56 specifications ↓ Show less ↑49 more values in Identification, Additional Information, Technical, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SDA101655R1 |
|---|---|
| Type designation | XT7S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8056221016995 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Additional Information 5
| Circuit Breaker Type to be Associated | Power Distribution |
|---|---|
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
Technical 20
| Current Type | AC |
|---|---|
| Electrical Durability | 3000 cycle, 60 cycles per hour |
| Mechanical Durability | 20000 cycle, 60 cycles per hour |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 45 kA, (525 V AC) 45 kA, (690 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 45 kA, (525 V AC) 45 kA, (690 V AC) 30 kA |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
External Classifications and Standards 3
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8056221016995 |
| Shipping weight | 15.5 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SDA101655R1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- IEC60947-2
Quick answers
Questions about the XT7S
What is the rated current of XT7S?
The rated current of XT7S is 1000 A.
What is the HS code of XT7S for customs?
The tariff (HS) code on file for XT7S is 85362090.
What is the EAN of XT7S?
The EAN (GTIN) of XT7S is 8056221016995.
Where does XT7S ship from, and how fast?
XT7S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
