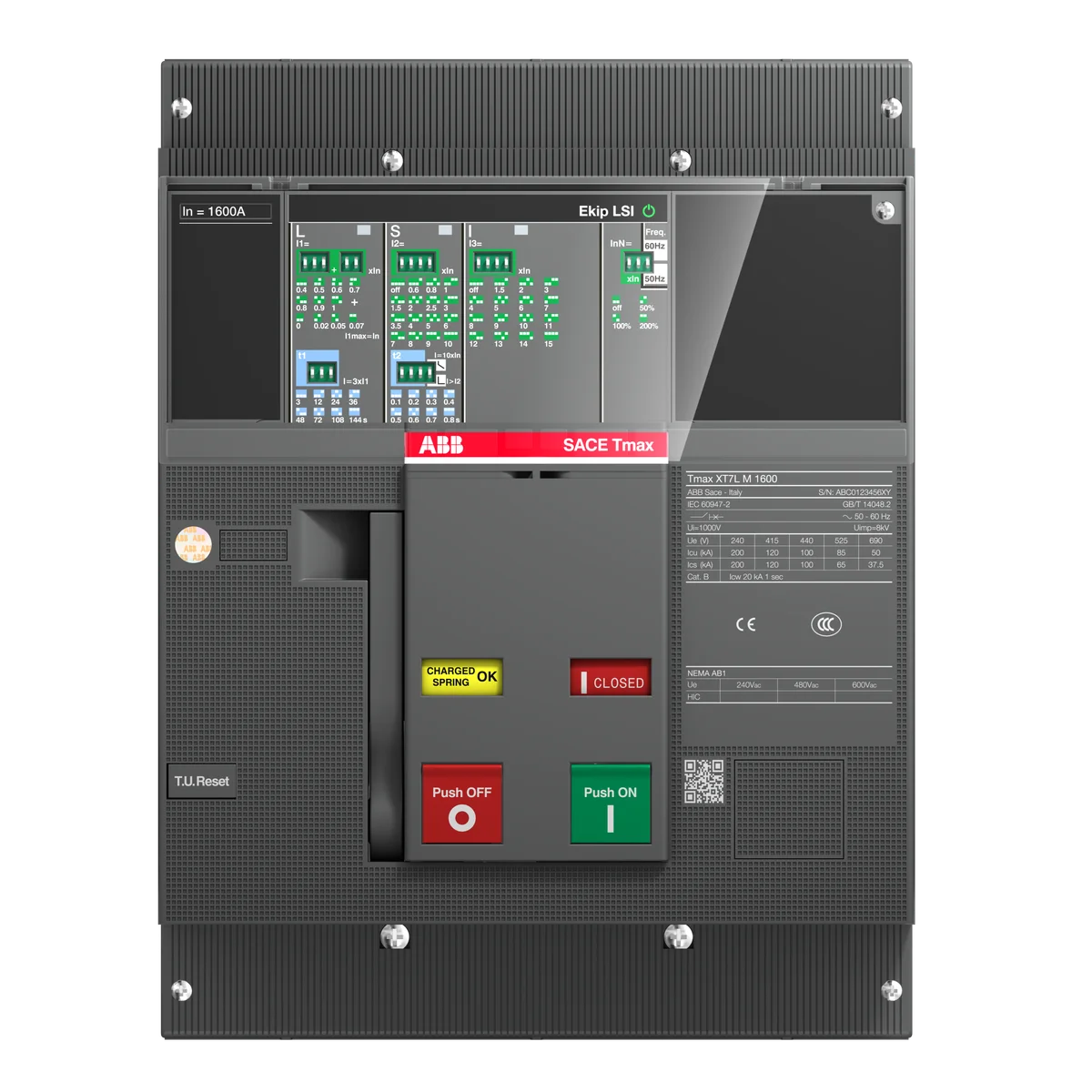

ABB 1SDA101369R1 XT7S M 1600 Ekip Dip LS/I In1600A 3p F F Moulded Case Circuit Breaker

The ABB 1SDA101369R1 — catalog number XT7S M 1600 Ekip Dip LS/I In1600A 3p F F — is a high-performance 1600 A, 3-pole fixed-mount power circuit-breaker from the Tmax XT7S series, engineered for transformer, generator, and installation protection in demanding industrial environments. Featuring the Ekip Dip LS/I trip unit with a rated current of 1600 A and a breaking capacity of 85 kA at 220 V AC, the XT7S M 1600 Ekip Dip LS/I In1600A 3p F F delivers reliable short-circuit and overload protection in compact switchgear panels.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental protection requirements
• IEC 60947-2: Compliant with the international standard for low-voltage circuit-breakers
• RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation on chemical substances (EC No 1907/2006)
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive — supports responsible end-of-life disposal

Applications & Use Cases

• Transformer feeder and secondary protection in MV/LV substations
• Generator protection in standby and prime power installations
• Main and sub-distribution board protection in industrial plants
• Motor control centres and large drive feeder circuits
• Infrastructure projects requiring high breaking capacity in compact switchgear
