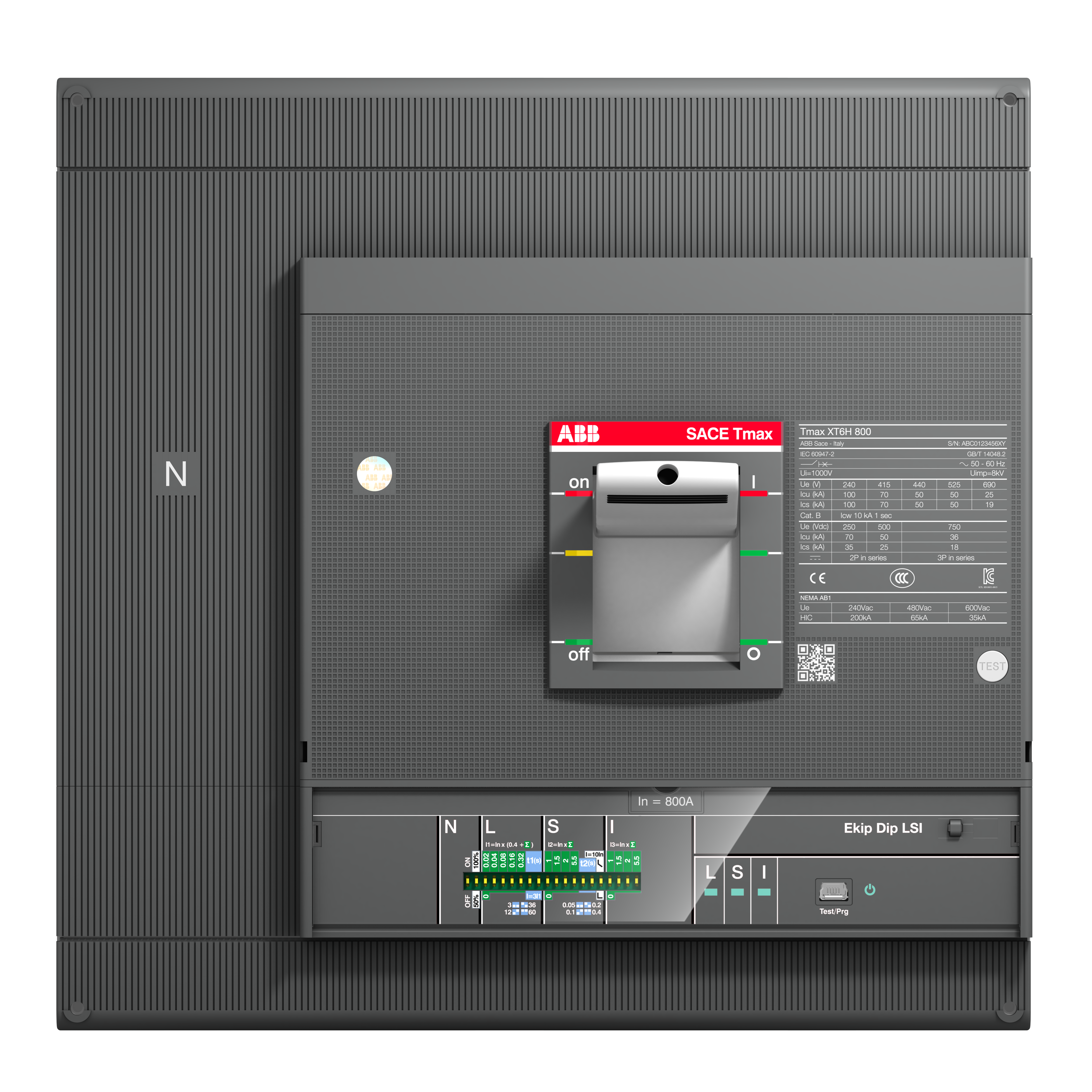

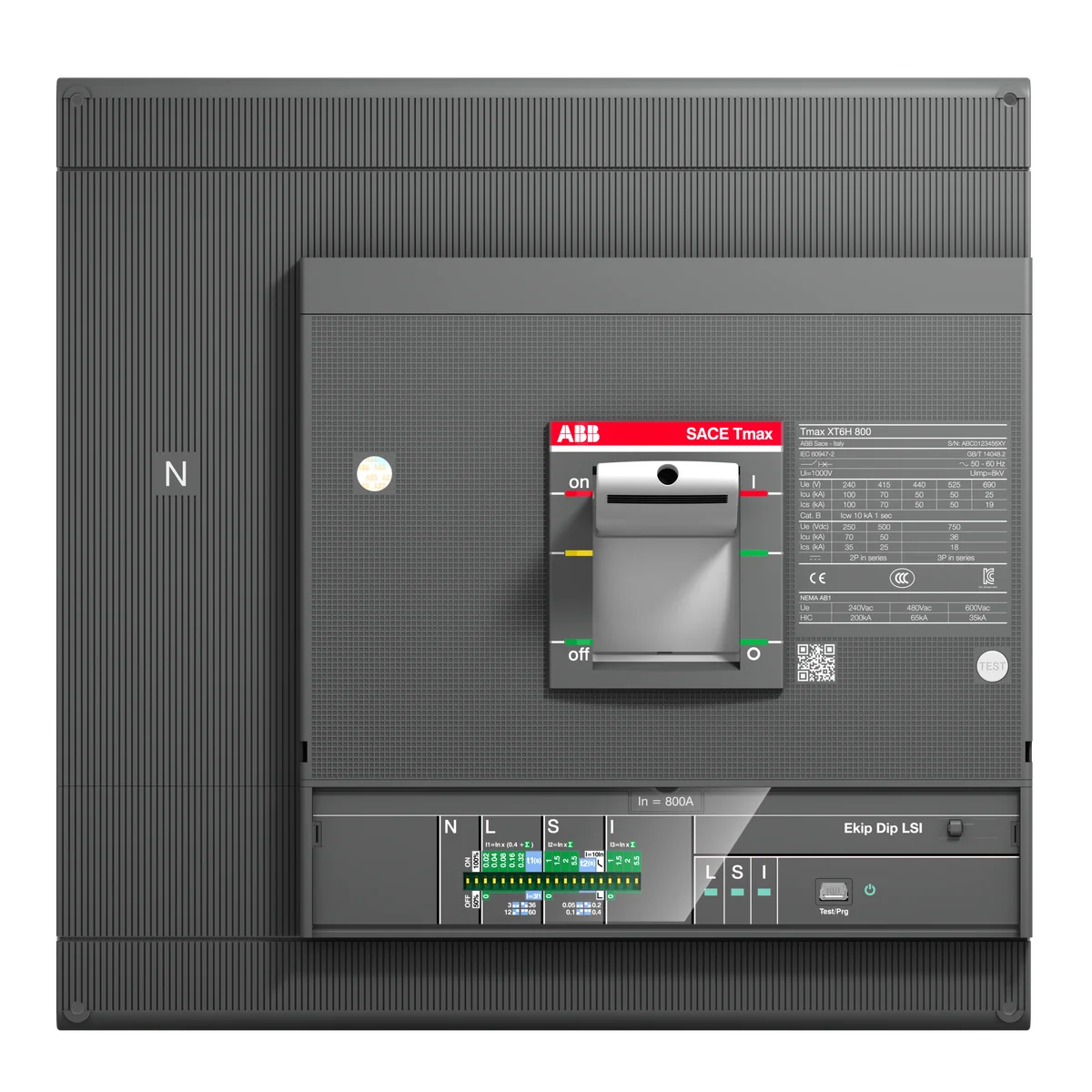

ABB 1SDA100755R1 XT6S 1000 Ekip Dip LS/I In=1000 4p F F 1000A 4-Pole Fixed Moulded Case Circuit Breaker

The ABB 1SDA100755R1 XT6S 1000 Ekip Dip LS/I In=1000 4p F F is a 1000A, 4-pole fixed-mount power circuit-breaker from the Tmax XT6 series, engineered for transformer, generator, and installation protection in demanding industrial environments. Featuring the Ekip Dip LS/I electronic trip unit, this breaker delivers precise long-time and instantaneous protection with a breaking capacity of 85 kA at 220 V AC. Compact and robust, the XT6S 1000 Ekip Dip LS/I In=1000 4p F F is built for high-current distribution panels where reliability and compliance are non-negotiable.

Technical Specifications

Certifications & Standards

• CE: Compliant with European Union CE marking requirements for electrical equipment
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances in electrical equipment
• REACH: Compliant with EU REACH regulation for chemical substance safety
• EU Directive 2011/65/EU: Formally certified under the EU RoHS directive restricting hazardous substances
• Amendment 2015/863: Compliant with the updated RoHS substance list per EU Amendment 2015/863
• IEC 60947-2: Designed and tested to IEC 60947-2, the international standard for low-voltage circuit-breakers
• WEEE: Registered and compliant with the EU Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal

Applications & Use Cases

• Transformer primary and secondary protection in industrial and commercial power distribution
• Generator output protection for standby and prime power systems
• Main and sub-main incomer protection in low-voltage switchboards and motor control centres
• High-current installation protection where 85 kA breaking capacity is required
• Fixed-mounted configurations in drawout-compatible cubicle designs
