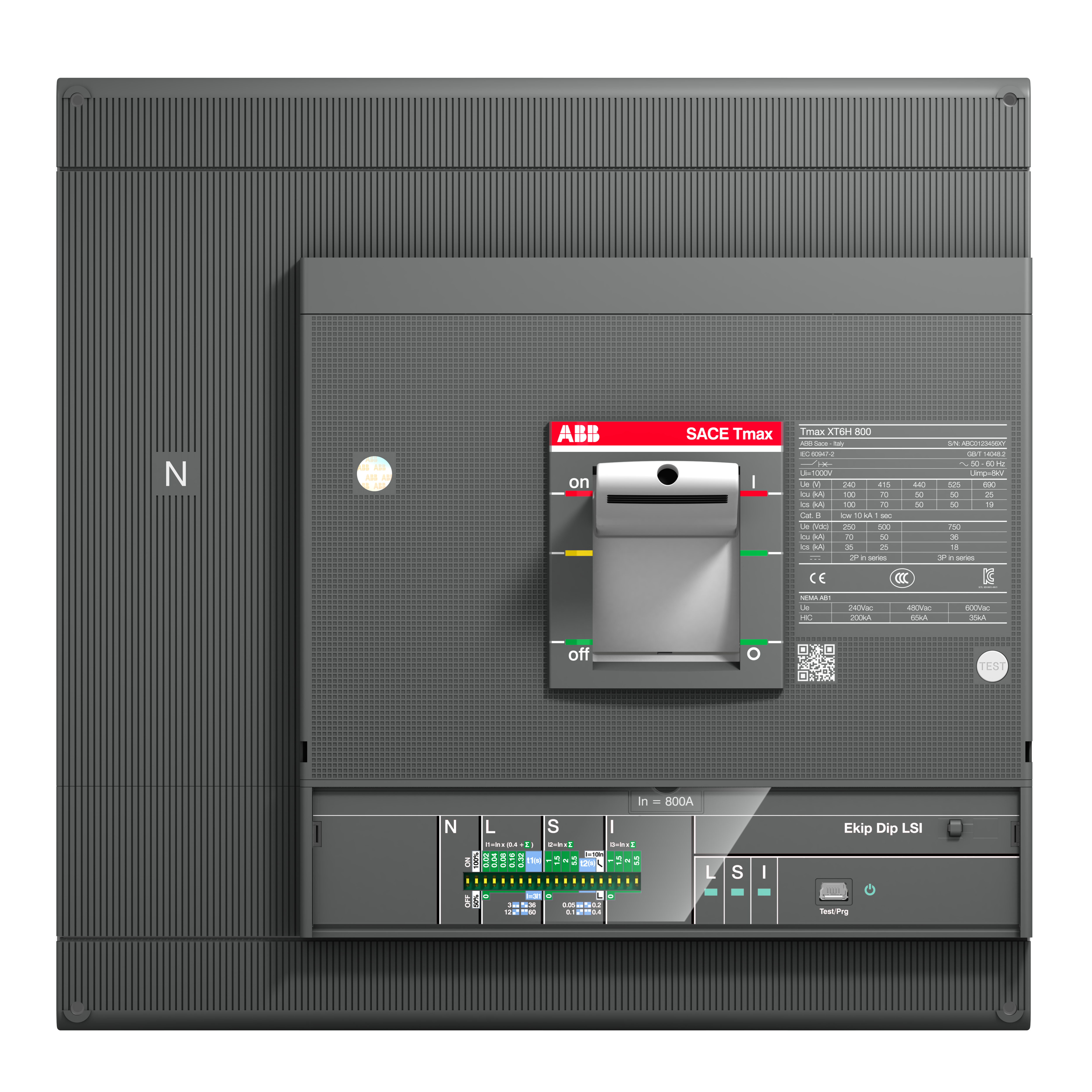

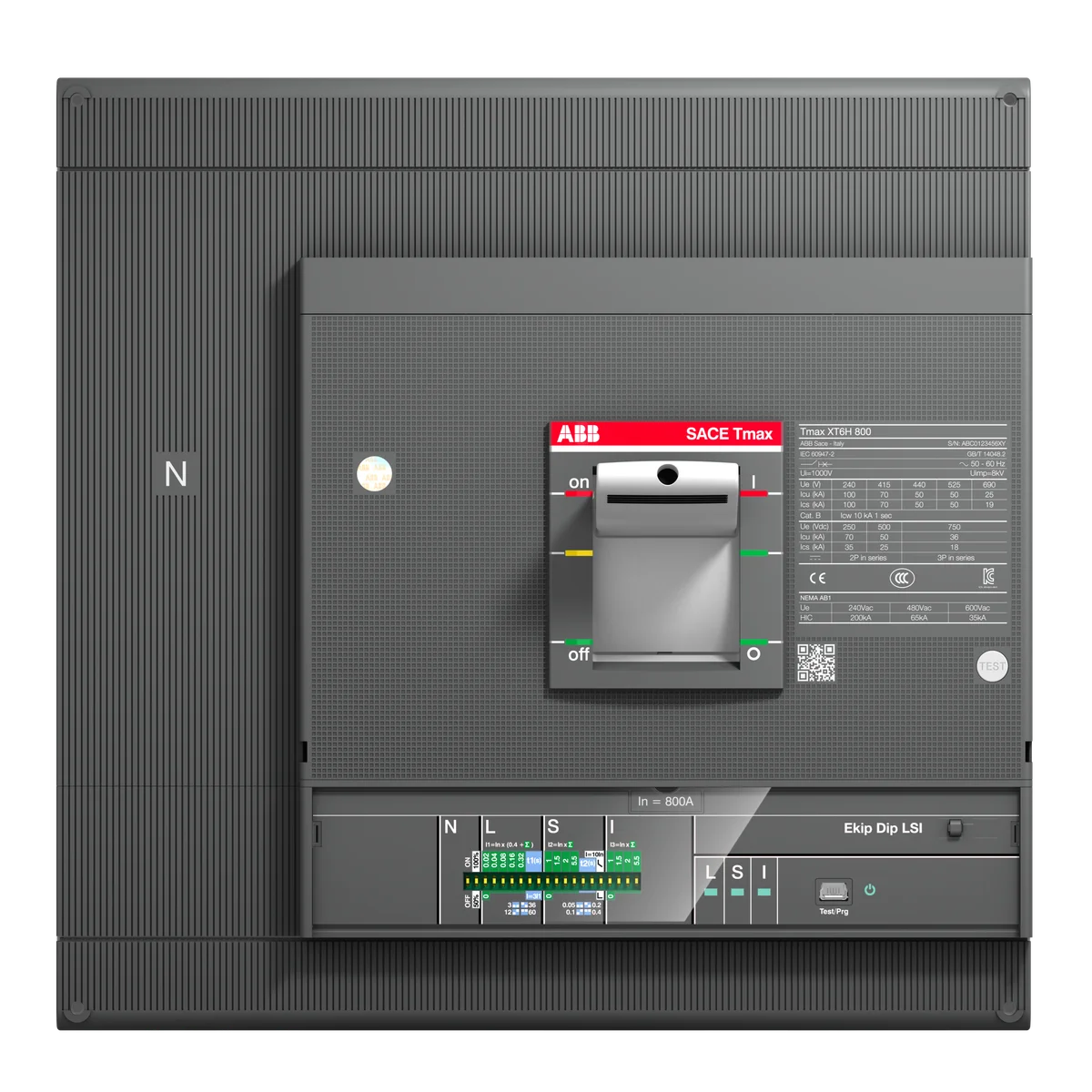

ABB 1SDA100733R1 XT6N 1000 Ekip Dip LS/I In=1000 4p F F 1000A 4-Pole Fixed Moulded Case Circuit Breaker

The ABB XT6N 1000 Ekip Dip LS/I In=1000 4p F F (SKU: 1SDA100733R1) is a 1000 A, 4-pole fixed-mount power circuit-breaker from the Tmax XT6 series, purpose-built for transformer, generator, and installation protection in demanding industrial and commercial power distribution applications. Featuring the Ekip Dip LS/I electronic trip unit and a breaking capacity of 70 kA at 220 V AC, this breaker delivers precise overcurrent and short-circuit protection with a compact, DIN-rail-compatible fixed format.

Technical Specifications

Certifications & Standards

• CE: Compliant with applicable European Union directives for electrical equipment
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• Amendment 2015/863: RoHS 3 amendment expanding restricted substance list
• REACH: Compliant with EU REACH regulation on chemical substances
• IEC 60947-2: Low-voltage switchgear and controlgear — circuit-breakers (dual reference: IEC 60947-2 / IEC60947-2)
• WEEE: Waste Electrical and Electronic Equipment Directive — product registered for proper end-of-life recycling

Applications & Use Cases

• Transformer feeder and secondary protection in MV/LV substations
• Generator protection and main incomer switching in power generation facilities
• Main and sub-distribution panel protection in industrial plants and commercial buildings
• High-demand installation protection where a 1000 A, 70 kA breaking capacity is required
• Control panel integration requiring a fixed 4-pole moulded-case power circuit-breaker
