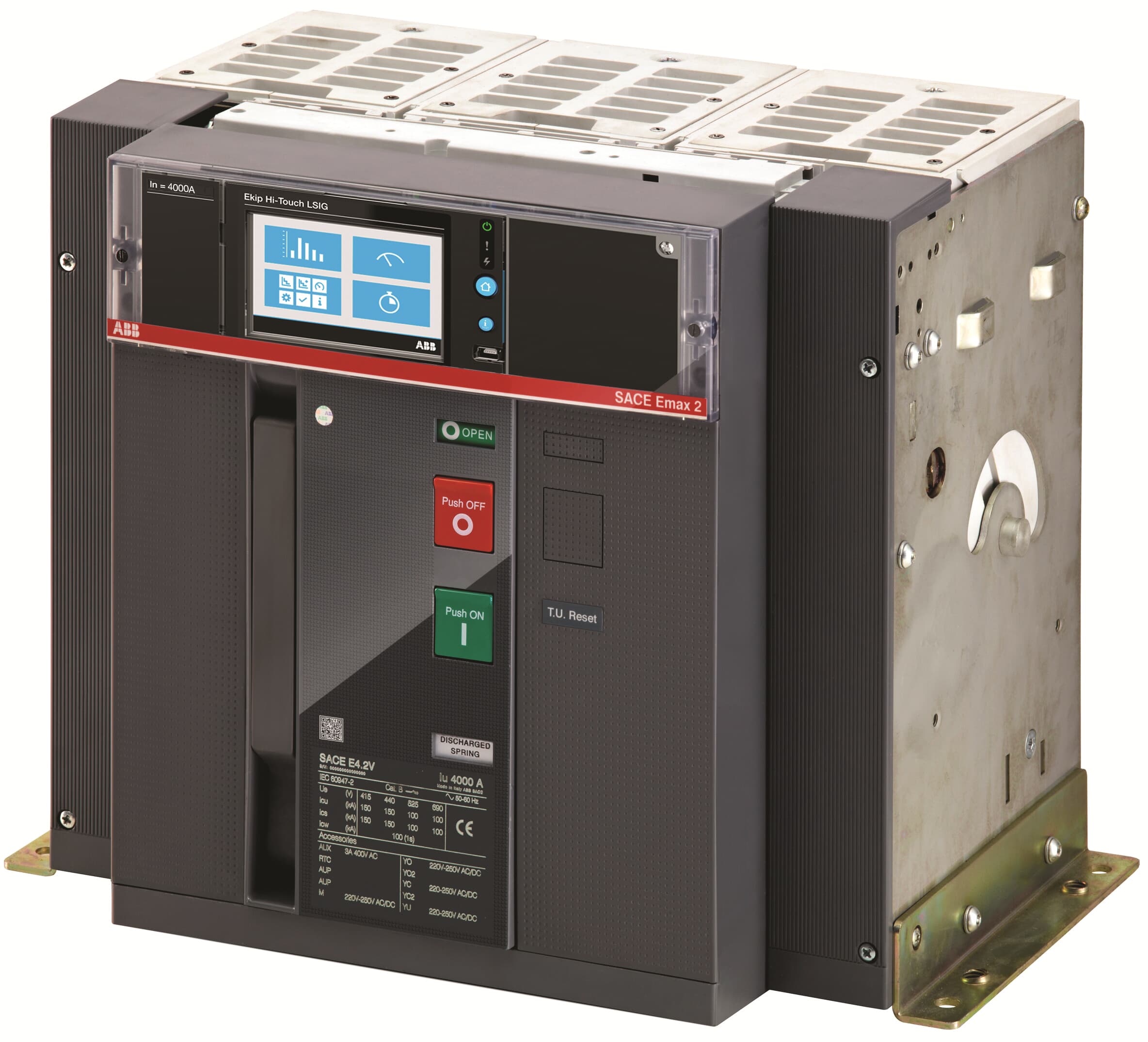

ABB 1SDA071214R1MP E4.2H 4000 Ekip Touch LI 3p F HR Air Circuit Breaker
Description
About the EMAX2
About the EMAX2
The ABB 1SDA071214R1MP is an air circuit breaker from the SACE EMAX2 series, engineered for low-voltage power distribution, industrial switchgear panels, and critical infrastructure protection. As part of ABB's renowned EMAX2 platform, this ACB delivers reliable overcurrent and short-circuit protection in demanding electrical installations where dependable switching performance is essential.
Applications & Use Cases
- Main Distribution Boards: Suitable as an incoming or outgoing device in low-voltage main distribution switchgear.
- Industrial Switchgear Panels: Ideal for factory, plant, and process facility power distribution assemblies.
- Generator & Transformer Protection: Commonly deployed at the output of generators and transformers in standby and prime power systems.
- Critical Infrastructure: Used in data centres, hospitals, and utility installations where high reliability is paramount.
Specification
Full specification
| Part number | 1SDA071214R1MP |
|---|---|
| Catalog no | E4.2H 4000 Ekip Touch LI 3p F HR |
| Model no | EMAX2 |
| Brand | ABB |
| Series | ABB Emax 2 |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| Shipping weight | 56.0 kg |
|---|
| Ships from | Türkiye |
|---|---|
| Dispatch | 16 Nov |
| Stock | Critical stock |
| Series | SACE EMAX2 |
|---|---|
| Product Type | Air Circuit Breaker |
From the manufacturer description; the values above take precedence.
Documents
Documents for 1SDA071214R1MP
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the EMAX2
Where does EMAX2 ship from, and how fast?
EMAX2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
