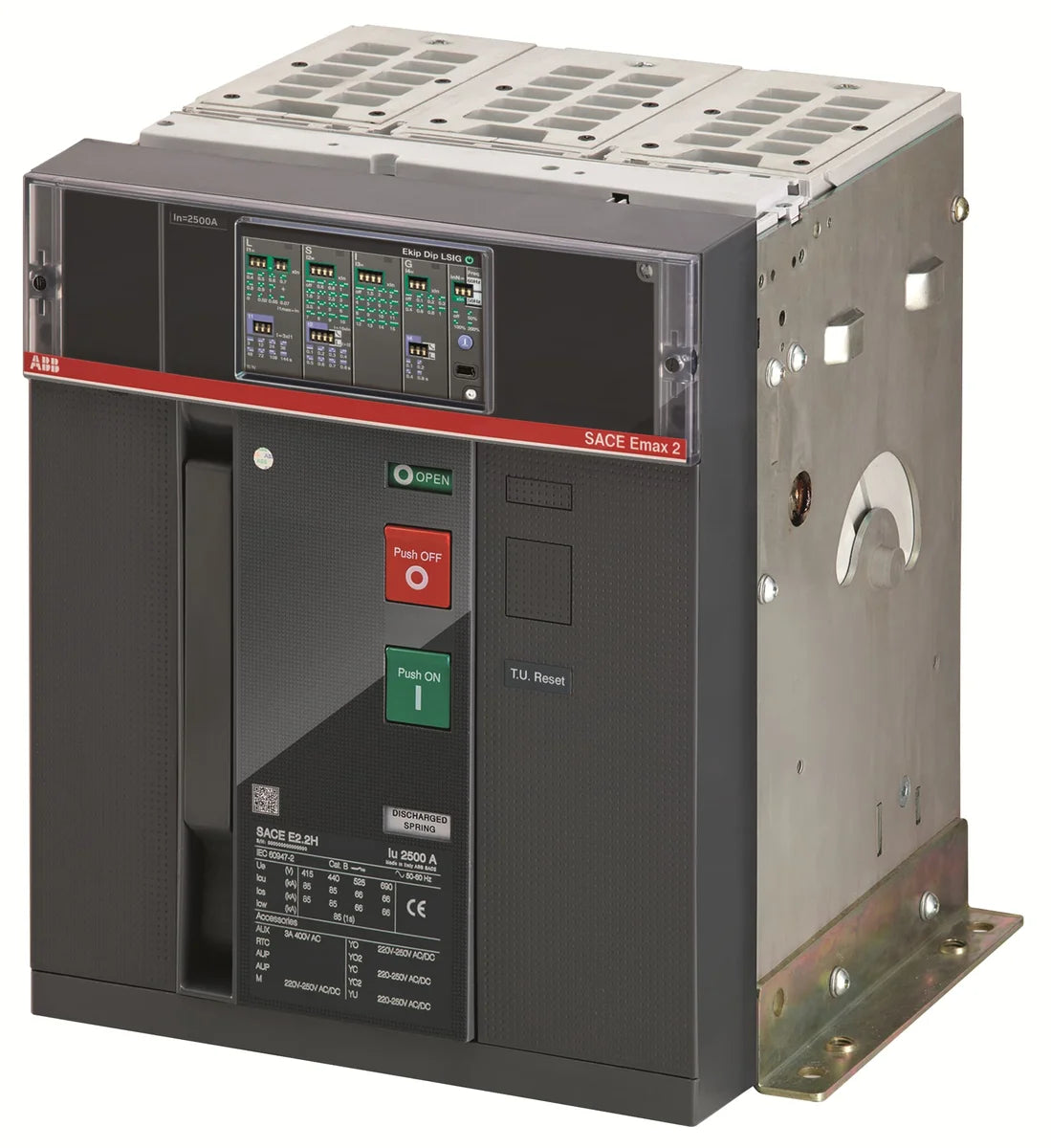

ABB 1SDA071065R1MP E2.2N 2500 Ekip Touch LSI 3p F HR Air Circuit Breaker
Description
About the 1SDA071065R1MP
About the 1SDA071065R1MP
The ABB 1SDA071065R1MP is a SACE Emax 2 series fixed-mount air circuit breaker rated at 2500 A and 690 V AC, delivering a breaking capacity of 66 kA at 400 V AC. Designed for demanding low-voltage power distribution and switchgear applications, this 3-pole ACB offers robust overcurrent and short-circuit protection with a power dissipation of 267 W and compact dimensions of 515 × 515 × 610 mm.
Certifications & Standards
- CE: Conforms to European Union safety, health, and environmental protection requirements.
- IEC 60947-2: Compliant with the international standard for low-voltage switchgear and controlgear — circuit breakers.
- RoHS: Restriction of Hazardous Substances compliant — free from restricted toxic materials.
- REACH: Compliant with EU REACH regulation on chemical substances.
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal.
Applications & Use Cases
- Main and tie breaker applications in low-voltage main distribution boards (MDB)
- Industrial power distribution switchgear panels and motor control centres (MCC)
- Generator protection and bus-tie switching in utility and standby power systems
- Data centres, manufacturing plants, and infrastructure projects requiring high-current overcurrent protection
- Marine and offshore installations requiring IEC 60947-2 compliant protection devices
Specification
Full specification
| Part number | 1SDA071065R1MP |
|---|---|
| Catalog no | E2.2N 2500 Ekip Touch LSI 3p F HR |
| Brand | ABB |
| Series | ABB Emax 2 |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644749125 |
| Rated current | 2500 A |
|---|---|
| Rated operational voltage | 690 V AC |
| Poles | 3P |
| Power loss | 267 W W |
| Degree of protection | IP30 |
|---|---|
| Dimensions (W × H × D) | 515 × 515 × 610 mm (W × D × H) |
| Shipping weight | 46.0 kg |
| Mounting | Fixed |
| Ships from | Türkiye |
|---|---|
| Dispatch | 16 Nov |
| Stock | In stock |
| Series | SACE Emax 2 |
|---|---|
| Product Type | Air Circuit Breaker (ACB) |
| Breaking Capacity (Icu @ 400V AC) | 66 kA |
| Weight | 46 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 1SDA071065R1MP
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
Quick answers
Questions about the 1SDA071065R1MP
What is the rated current of 1SDA071065R1MP?
The rated current of 1SDA071065R1MP is 2500 A.
Which supply voltage is 1SDA071065R1MP rated for?
The rated operational voltage of 1SDA071065R1MP is 690 V AC.
What is the EAN of 1SDA071065R1MP?
The EAN (GTIN) of 1SDA071065R1MP is 8015644749125.
Where does 1SDA071065R1MP ship from, and how fast?
1SDA071065R1MP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
