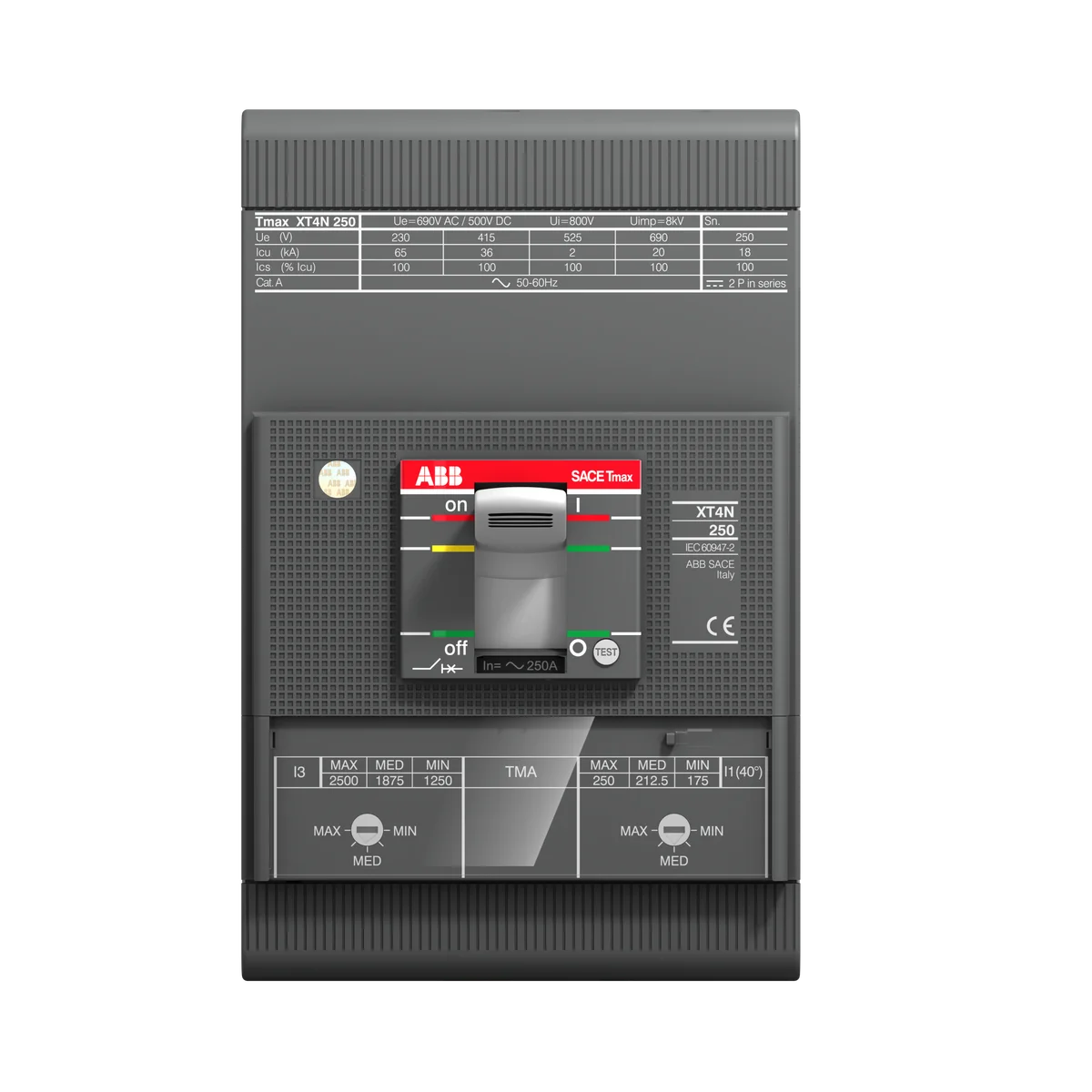

ABB 1SDA068343R1 XT4H 250 TMA 200-2000 3p F F 200A 3-Pole Fixed Moulded Case Circuit Breaker
Description
About the XT4H
About the XT4H
The ABB 1SDA068343R1 XT4H 250 TMA 200-2000 3p F F is a high-performance 200A, 3-pole fixed-mount power circuit-breaker from the ABB Tmax XT4 series, purpose-built for transformer, generator, and installation protection. Delivering a breaking capacity of 70 kA at 400 V AC and combining a compact footprint of 105 mm × 160 mm × 82.5 mm with a robust 2.259 kg construction, this moulded case circuit breaker offers reliable overcurrent protection in demanding industrial environments.
Certifications & Standards
- RoHS: Compliant with the Restriction of Hazardous Substances Directive
- REACH: Compliant with REACH chemical safety regulation
- EU Directive 2011/65/EU & Amendment 2015/863: Compliant as of July 22, 2019
- IEC 60947-2: Meets international standard for low-voltage switchgear — circuit-breakers
- IEC60947-2: Verified compliance with IEC low-voltage circuit-breaker performance standard
- ATEX: Certified for use in potentially explosive atmospheres
- CE: Marked in accordance with applicable European directives
- VDE: Certified by the Association for Electrical, Electronic & Information Technologies (Germany)
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
The XT4H 250 TMA 200-2000 3p F F is engineered for critical protection duties across a wide range of industrial and commercial installations. Its high breaking capacity and thermomagnetic trip unit make it especially suited for:
- Transformer secondary protection in industrial power distribution panels
- Generator protection and feeder circuit protection in standby and prime-power systems
- Main and outgoing circuit protection in low-voltage switchboards and motor control centres
- Installation protection in manufacturing plants, utilities, and infrastructure projects
- Applications requiring ATEX compliance in hazardous area environments
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 105 mm |
|---|---|
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.259 kg |
Additional Information 5
| Circuit Breaker Type to be Associated | Power Distribution |
|---|---|
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
Show all 63 specifications ↓ Show less ↑53 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SDA068343R1 |
|---|---|
| Type designation | XT4H |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644696443 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Technical 28
| Connecting Capacity Main Circuit | Busbar 85..200 mm² |
|---|---|
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycle |
| Mechanical Durability | 240 cycles per hour, 25000 cycle |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms, CB with UVR 30 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 11.88 W |
| Rated Current (In) | 200 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1000…2000 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC, 750 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA, (230 V AC) 100 kA, (240 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (525 V AC) 45 kA, (690 V AC) 15 kA, (250 V DC) 2 Poles in Series 70 kA, (500 V DC) 2 Poles in Series 70 kA, (500 V DC) 3 Poles in Series 70 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA, (230 V AC) 100 kA, (240 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (525 V AC) 45 kA, (690 V AC) 15 kA, (250 V DC) 2 Poles in Series 70 kA, (500 V DC) 2 Poles in Series 70 kA, (500 V DC) 3 Poles in Series 70 kA |
| Rated Uninterrupted Current (Iu) | 250 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M8 |
| Release | TMA |
| Release Type | TM |
| Setting Range | 140...200 A |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 8 N·m |
External Classifications and Standards 4
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 151 mm |
| Package Level 1 Height | 214 mm |
| Package Level 1 Depth / Length | 171 mm |
| Package Level 1 Gross Weight | 2.378 kg |
| Package Level 1 EAN | 8015644696443 |
| Shipping weight | 2.378 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SDA068343R1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC60947-2
Quick answers
Questions about the XT4H
What is the rated current of XT4H?
The rated current of XT4H is 200 A.
What is the HS code of XT4H for customs?
The tariff (HS) code on file for XT4H is 85362090.
What is the EAN of XT4H?
The EAN (GTIN) of XT4H is 8015644696443.
Where does XT4H ship from, and how fast?
XT4H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
