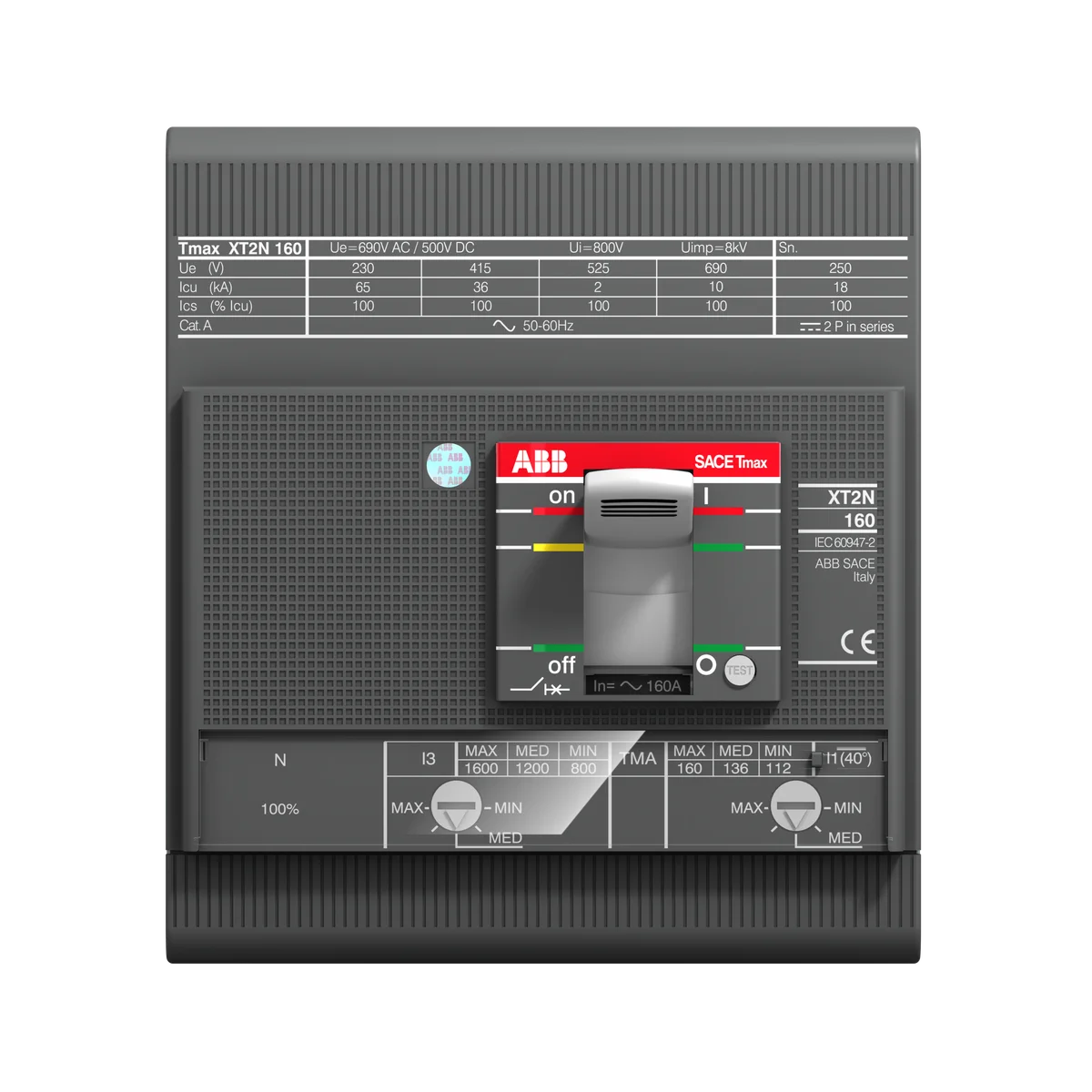

ABB 1SDA067579R1 XT2S 160 TMA 100-1000 4p F F 100A 4-Pole Fixed Moulded Case Circuit Breaker
Description
About the XT2S
About the XT2S
The ABB 1SDA067579R1 XT2S 160 TMA 100-1000 4p F F is a 100A, 4-pole fixed-mount power circuit-breaker from the Tmax XT2 series, engineered for transformer, generator, and installation protection in demanding industrial environments. Rated at 50 kA breaking capacity at 400 V AC, this moulded case circuit breaker delivers precise TMA overcurrent tripping across a wide 100–1000 A adjustment range, making it suitable for high-fault-level switchgear and distribution panels.
Certifications & Standards
- IEC 60947-2: International standard for low-voltage switchgear and controlgear — circuit-breakers (listed twice in source, confirming compliance)
- CE: Conformité Européenne — product meets EU health, safety, and environmental requirements
- ATEX: Certified for use in potentially explosive atmospheres per EU ATEX Directive
- VDE: Verified by Verband der Elektrotechnik (German electrical engineering testing association)
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- EU Directive 2011/65/EU: RoHS 2 Directive restricting hazardous substances in electrical and electronic equipment
- Amendment 2015/863: EU RoHS amendment extending the restricted substances list (RoHS 3)
- REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU chemical safety regulation
- WEEE: Waste Electrical and Electronic Equipment Directive — compliant with EU recycling and disposal requirements
Applications & Use Cases
- Transformer and generator protection in industrial power distribution systems
- Main and feeder circuit protection in low-voltage switchgear assemblies and control panels
- Installation protection where high breaking capacity (50 kA) is required at 400 V AC
- Industrial automation and process plant power distribution
- Applications requiring ATEX-rated circuit protection in hazardous area environments
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 120 mm |
|---|---|
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.45 kg |
Additional Information 5
| Circuit Breaker Type to be Associated | Power Distribution |
|---|---|
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
Show all 63 specifications ↓ Show less ↑53 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SDA067579R1 |
|---|---|
| Type designation | XT2S |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644014759 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Technical 28
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
|---|---|
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycle |
| Mechanical Durability | 240 cycles per hour, 25000 cycle |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms, CB with UVR 30 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 8.08 W |
| Rated Current (In) | 100 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 500…1000 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC, 500 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 25 kA, (690 V AC) 12 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 3 Poles in Series 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA, (230 V AC) 85 kA, (240 V AC) 85 kA, (380 V AC) 50 kA, (415 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 36 kA, (525 V AC) 25 kA, (690 V AC) 12 kA, (250 V DC) 2 Poles in Series 50 kA, (500 V DC) 3 Poles in Series 50 kA |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMA |
| Release Type | TM |
| Setting Range | 70...100 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
External Classifications and Standards 4
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 131 mm |
| Package Level 1 Height | 212 mm |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Gross Weight | 1.55 kg |
| Package Level 1 EAN | 8015644014759 |
| Shipping weight | 1.55 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SDA067579R1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- IEC60947-2
Quick answers
Questions about the XT2S
What is the rated current of XT2S?
The rated current of XT2S is 100 A.
What is the HS code of XT2S for customs?
The tariff (HS) code on file for XT2S is 85362090.
What is the EAN of XT2S?
The EAN (GTIN) of XT2S is 8015644014759.
Where does XT2S ship from, and how fast?
XT2S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
