- Part number
- 1SCA115227R1001
- Model no
- OS63GD12P
Description
About the OS63GD12P
About the OS63GD12P

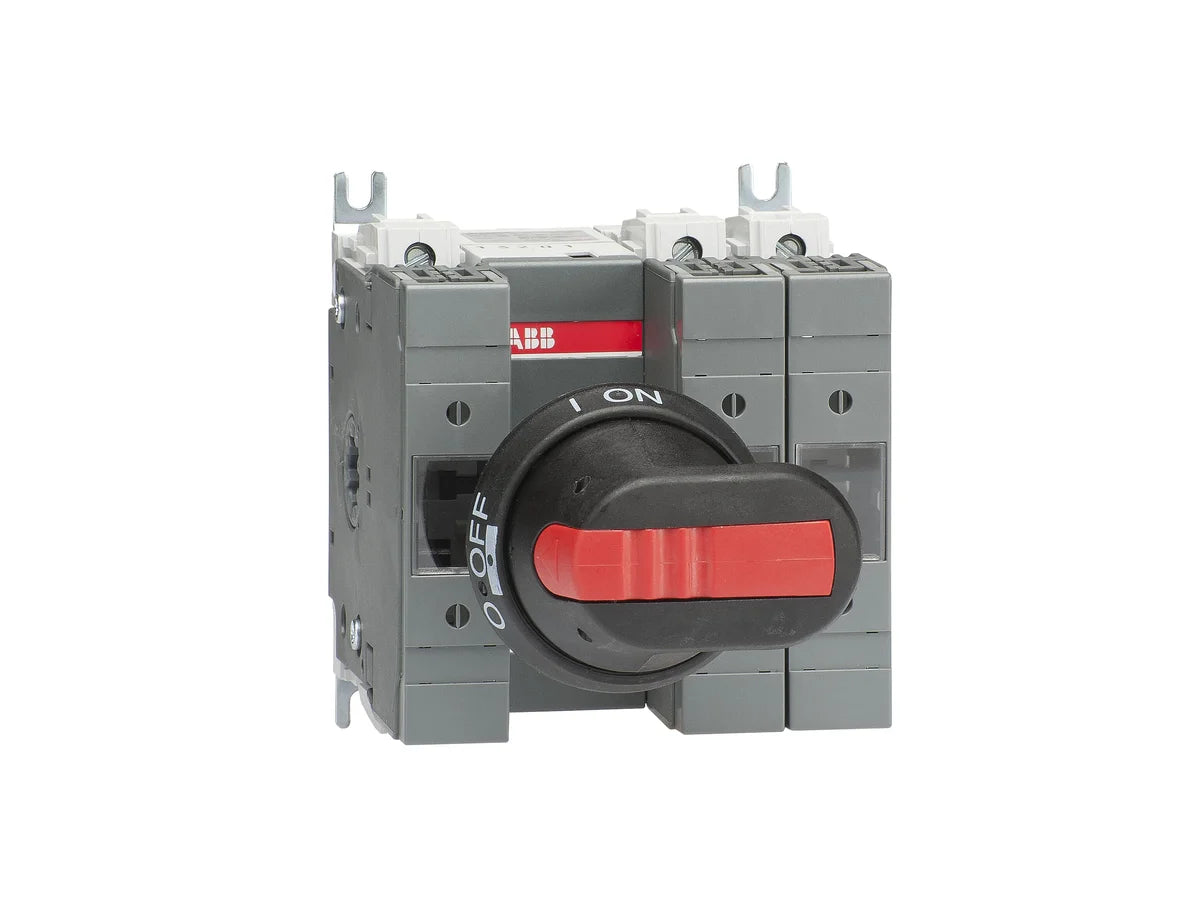

The ABB OS63GD12P (SKU: 1SCA115227R1001) is a 63A 3-pole base-mounted fuse switch disconnector designed for safe isolation and overcurrent protection in industrial control panels and distribution boards. Combining the switching function of a disconnector with integrated fuse protection, the OS63GD12P provides reliable circuit isolation and short-circuit protection in a compact 112 × 125 × 121 mm footprint weighing just 1.3 kg.
Certifications & Standards
- IEC 60947-3: Compliant with the IEC standard for disconnectors, switch-disconnectors and fuse-combination units
- CE: Meets European conformity requirements for electrical equipment
- ATEX: Approved for use in potentially explosive atmospheres
- CCC: China Compulsory Certification for the Chinese market
- UL 2799: UL-listed for relevant safety standards
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
- REACH: Compliant with EU REACH regulation on chemical substances
- EU Directive 2011/65/EU: RoHS directive compliance for electrical and electronic equipment
- Amendment 2015/863: Compliant with the 2015 RoHS amendment extending restricted substance requirements
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for proper end-of-life disposal
Applications & Use Cases
- Motor circuit isolation and protection in industrial machinery
- Main and sub-distribution boards in commercial and industrial facilities
- Control panel feeder circuits requiring fused disconnection
- Hazardous area installations where ATEX compliance is mandatory
- Machine tool and automation system power distribution
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | acc. to IEC 60529 IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 112 mm |
|---|---|
| Product Net Height | 125 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 1.18 kg, 2.6 lb |
Show all 62 specifications ↓ Show less ↑55 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA115227R1001 |
|---|---|
| Type designation | OS63GD12P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019476520 |
| ETIM class | EC001040 |
| eCl@ss | 27371401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 28
| Cable Cross-Section | 2.5 ... 25 mm² |
|---|---|
| Connecting Capacity | Stranded 2.5 … 25 mm², Flexible 2.5 … 25 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2 W, Total 6 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA, (690 V) 80 kA |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A, (690 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A, (690 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW, (400 V) 30 kW, (415 V) 30 kW, (500 V) 37 kW, (690 V) 55 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m, 4 N·m |
| Wire Stripping Length | Main Circuit 12 mm, Main Circuit 0.47 in |
External Classifications and Standards 5
| ETIM 10 | EC001040 - Fuse switch disconnector |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3172112 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 170 mm, 6.7 in |
| Package Level 1 Depth / Length | 190 mm, 7.5 in |
| Package Level 1 Height | 145 mm, 5.7 in |
| Package Level 1 Gross Weight | 1.3 kg, 2.9 lb |
| Package Level 1 EAN | 6417019476520 |
| Shipping weight | 1.3 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
