- Part number
- 1SCA022825R4880
- Model no
- OS800D03P
Description
About the OS800D03P
About the OS800D03P

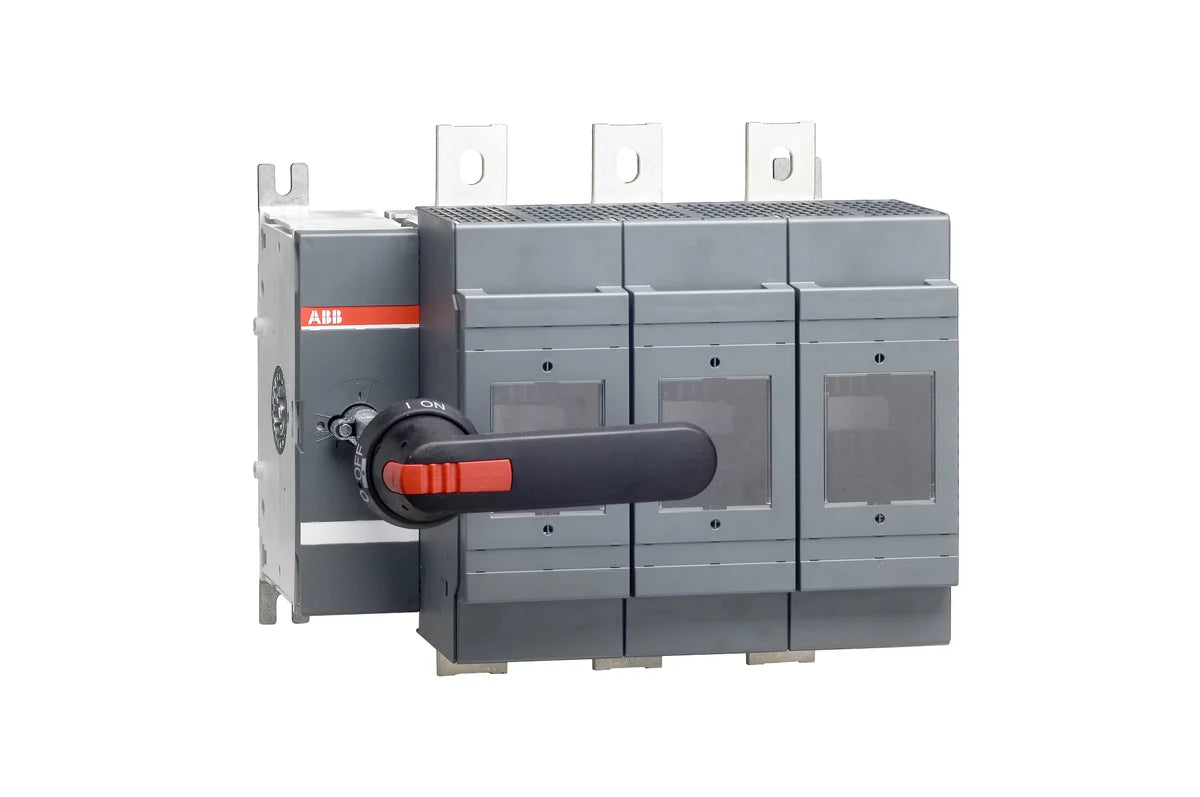

The ABB OS800D03P (SKU: 1SCA022825R4880) is a heavy-duty 3-pole 800A DIN-mounted switch fuse engineered for demanding industrial power distribution and circuit isolation applications. Designed to IEC 60947-3 standards, the OS800D03P provides reliable switching and overcurrent protection in a robust enclosure measuring 343mm × 306mm × 233mm and weighing 14.89 kg, making it well suited for large control panels and motor protection systems.
Certifications & Standards
- IEC 60947-3: Low-voltage switchgear and controlgear — switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60529: Degrees of protection provided by enclosures (IP Code)
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- ATEX: Certified for use in potentially explosive atmospheres
- CCC: China Compulsory Certification for the Chinese market
- UL 2799: UL Standard for electrical systems for stationary engine generator assemblies
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU regulation compliance
- WEEE: Waste Electrical and Electronic Equipment Directive — compliant with EU recycling requirements
Applications & Use Cases
- Industrial power distribution boards and main switchgear panels
- Motor branch circuit protection and isolation up to 800 A
- Hazardous area installations requiring ATEX-rated switching devices
- Heavy industrial machinery and process plant electrical control panels
- Generator and transformer feeder protection in commercial and industrial facilities
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | acc. to IEC 60529 IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 343 mm |
|---|---|
| Product Net Height | 306 mm |
| Product Net Depth / Length | 233 mm |
| Product Net Weight | 14.89 kg, 32.83 lb |
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022825R4880 |
|---|---|
| Type designation | OS800D03P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019283647 |
| ETIM class | EC001040 |
| eCl@ss | 27371401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 25
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
| Fuse Size | NH3 |
| Fuse System | DIN |
| Handle Type | Pistol |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 75 W, Total 225 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA, (690 V) 80 kA |
| Rated Current (In) | Main Circuit 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A, (500 V) 800 A, (690 V) 800 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 250 kW, (400 V) 450 kW, (415 V) 450 kW, (500 V) 560 kW, (690 V) 710 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 18 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 39 mm |
| Tightening Torque | 50 ... 75 N·m |
External Classifications and Standards 5
| ETIM 10 | EC001040 - Fuse switch disconnector |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3172099 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 328 mm, 12.91 in |
| Package Level 1 Depth / Length | 365 mm, 14.37 in |
| Package Level 1 Height | 260 mm, 10.24 in |
| Package Level 1 Gross Weight | 15.67 kg, 34.55 lb |
| Package Level 1 EAN | 6417019283647 |
| Shipping weight | 15.67 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022825R4880
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- CCC
- ATEX
- IEC 60947-3
Quick answers
Questions about the OS800D03P
What is the rated current of OS800D03P?
The rated current of OS800D03P is 800 A.
What is the HS code of OS800D03P for customs?
The tariff (HS) code on file for OS800D03P is 85365080.
What is the EAN of OS800D03P?
The EAN (GTIN) of OS800D03P is 6417019283647.
Where does OS800D03P ship from, and how fast?
OS800D03P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
