- Part number
- 1SCA022719R0250
- Model no
- OS400D03P
- CE
- RoHS
Description
About the OS400D03P
About the OS400D03P

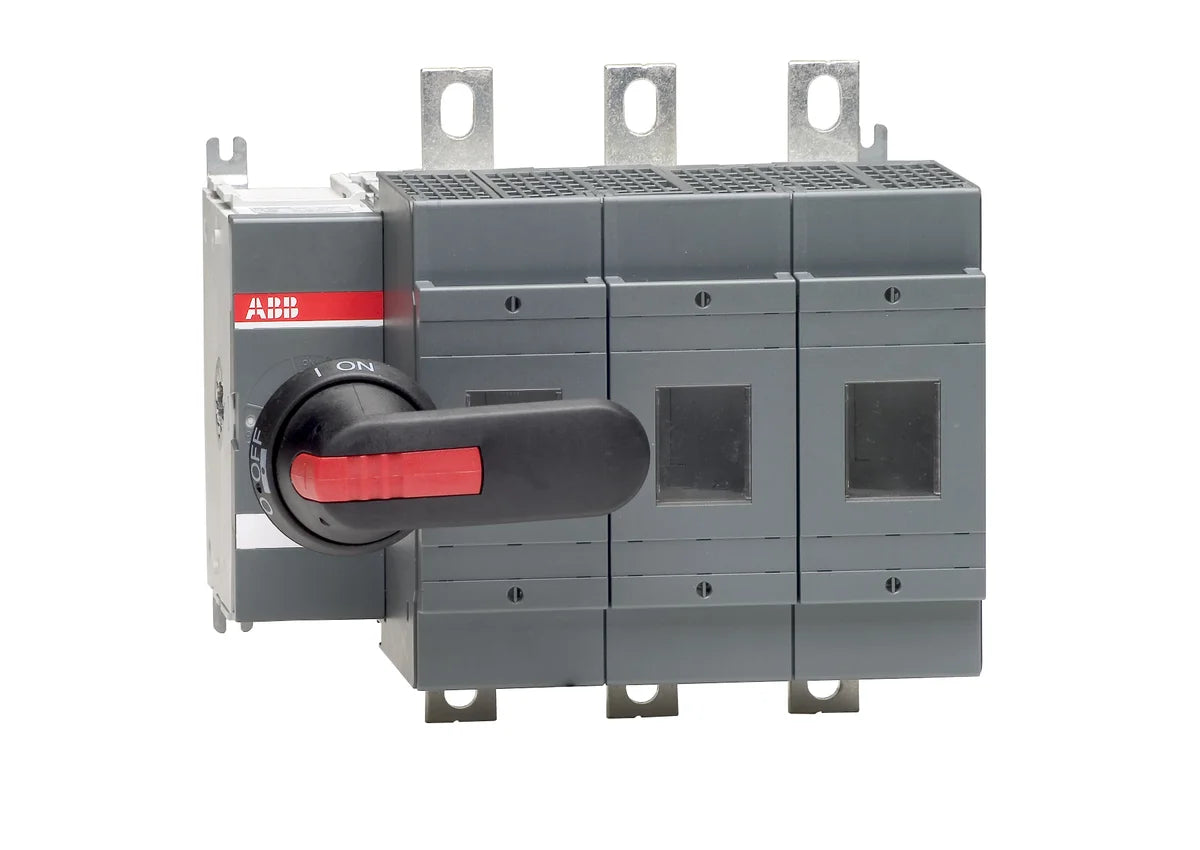

The ABB OS400D03P (SKU: 1SCA022719R0250) is a 3-pole, 400 A DIN-mounted switch fuse from the ABB OS400 series, engineered for reliable circuit isolation and overcurrent protection in demanding industrial power distribution applications. Compact yet robust, the OS400D03P combines switching and fuse protection in a single unit, simplifying panel design and reducing installation footprint with its DIN rail mounting configuration.
Certifications & Standards
- CE: Complies with European Union low-voltage and electromagnetic compatibility directives
- RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal
- IEC 60947-3: Switches, disconnectors, switch-disconnectors and fuse-combination units for industrial applications
- IEC 60529: Degrees of protection provided by enclosures (IP rating classification)
- UL 2799: Electrical systems for stationary fuel cell power systems
Applications & Use Cases
- Main and sub-distribution boards in industrial facilities
- Machine and control panel circuit isolation and protection
- Motor feeder and branch circuit switch-fuse combinations
- Building services electrical distribution panels
- Marine and offshore power distribution systems
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | acc. to IEC 60529 IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 255 mm |
|---|---|
| Product Net Height | 230 mm |
| Product Net Depth / Length | 193 mm |
| Product Net Weight | 6.72 kg, 14.82 lb |
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022719R0250 |
|---|---|
| Type designation | OS400D03P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019230627 |
| ETIM class | EC001040 |
| eCl@ss | 27371401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 25
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Fuse Size | NH0, NH1, NH2 |
| Fuse System | DIN |
| Handle Type | Pistol |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 36 W, Total 108 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA, (690 V) 80 kA |
| Rated Current (In) | Main Circuit 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW, (400 V) 220 kW, (415 V) 230 kW, (500 V) 280 kW, (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 14 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
External Classifications and Standards 5
| ETIM 10 | EC001040 - Fuse switch disconnector |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3172080 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 240 mm, 9.45 in |
| Package Level 1 Depth / Length | 270 mm, 10.63 in |
| Package Level 1 Height | 206 mm, 8.11 in |
| Package Level 1 Gross Weight | 7.12 kg, 15.7 lb |
| Package Level 1 EAN | 6417019230627 |
| Shipping weight | 7.12 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022719R0250 8
-
Manual
ProductDownload PDF: Instructions and Manuals 1SCC311015M0215
Instructions and Manuals 1SCC311015M0215
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 1SCC011021D0201
REACH Declaration 1SCC011021D0201
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 1SCC011020D0201
RoHS Declaration 1SCC011020D0201
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 1SCC311099D2704
Declaration of Conformity - CE 1SCC311099D2704
-
Certificate
ProductDownload PDF: Environmental Product Declaration - EPD 1SCC311198D0201
Environmental Product Declaration - EPD 1SCC311198D0201
-
Certificate
ProductDownload PDF: A2L Certificate – IEC 1SCC311209D0201
A2L Certificate – IEC 1SCC311209D0201
-
Certificate
ProductDownload PDF: CCC Certificate CCC OS315-400 2016
CCC Certificate CCC OS315-400 2016
-
Certificate
ProductDownload PDF: DNV GL Certificate 1SCC311131D0203
DNV GL Certificate 1SCC311131D0203
Certifications
Certifications and standards
- CE
- RoHS
- IEC 60947-3
Quick answers
Questions about the OS400D03P
What is the rated current of OS400D03P?
The rated current of OS400D03P is 400 A.
What is the HS code of OS400D03P for customs?
The tariff (HS) code on file for OS400D03P is 85365080.
What is the EAN of OS400D03P?
The EAN (GTIN) of OS400D03P is 6417019230627.
Where does OS400D03P ship from, and how fast?
OS400D03P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
