- Part number
- 1SCA022719R0090
- Model no
- OS250D03P
Description
About the OS250D03P
About the OS250D03P

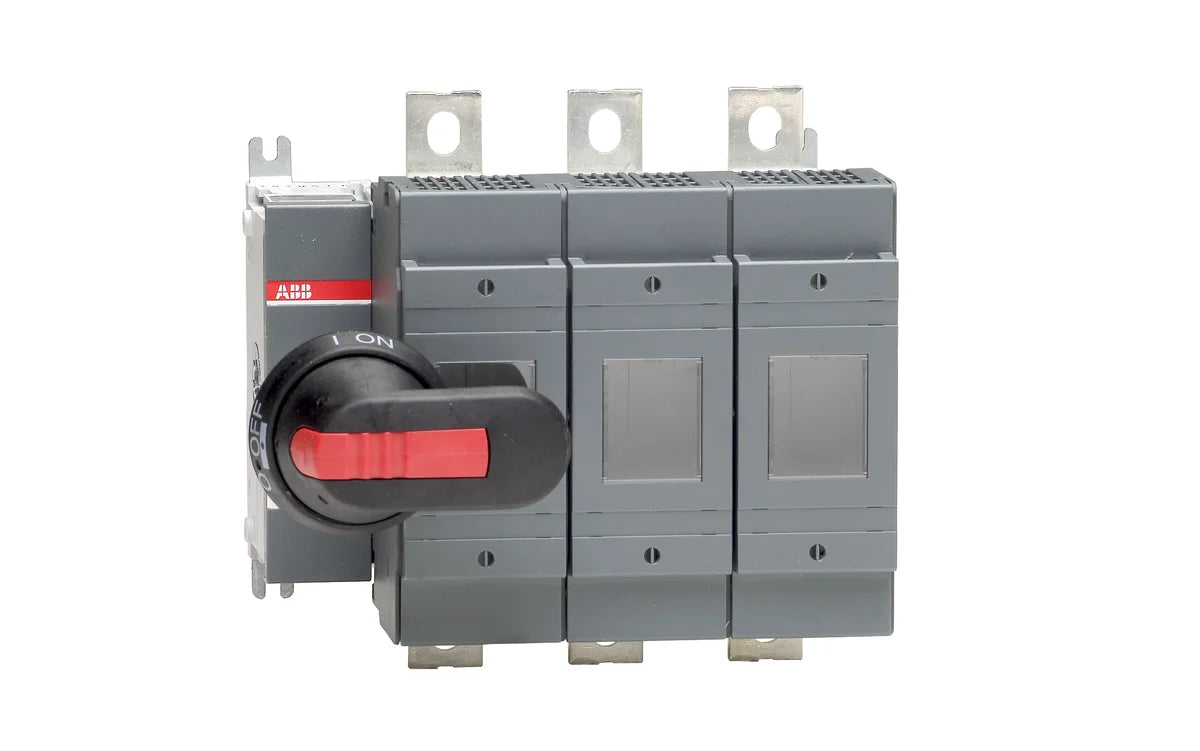

The ABB OS250D03P switch fuse (SKU: 1SCA022719R0090) is a heavy-duty 3-pole, 250 A DIN-mounted switch fuse from ABB's OS250 series, engineered for safe isolation and overcurrent protection in industrial control panels and distribution boards. Combining switching and fuse protection in a single compact unit, the OS250D03P delivers reliable circuit isolation in demanding environments including hazardous areas rated for ATEX compliance.
Certifications & Standards
- IEC 60947-3: Compliant with the international standard for switches, disconnectors, switch-disconnectors and fuse combination units
- ATEX: Approved for use in explosive atmospheres — suitable for hazardous area installations
- CE: Meets European Union safety, health, and environmental protection requirements
- UL 2799: Listed under UL safety standard for electrical component assemblies
- CCC: China Compulsory Certification for market access in China
- RoHS: Compliant with the Restriction of Hazardous Substances Directive — free from restricted materials
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
Applications & Use Cases
- Main and sub-circuit isolation in industrial control panels and switchgear assemblies
- Motor feeder protection and disconnection in manufacturing and process automation
- Distribution board protection in commercial and heavy industrial facilities
- Hazardous area installations requiring ATEX-rated switch fuse units
- OEM machine builders requiring DIN-rail mountable overcurrent and isolation devices rated to 250 A
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | acc. to IEC 60529 IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 208 mm |
|---|---|
| Product Net Height | 193 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 4.1 kg, 9 lb |
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022719R0090 |
|---|---|
| Type designation | OS250D03P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019230580 |
| ETIM class | EC001040 |
| eCl@ss | 27371401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 25
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
|---|---|
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Fuse Size | NH0, NH1 |
| Fuse System | DIN |
| Handle Type | Pistol |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 17 W, Total 51 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 100 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A, (500 V) 250 A, (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW, (400 V) 140 kW, (415 V) 145 kW, (500 V) 170 kW, (690 V) 250 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
External Classifications and Standards 5
| ETIM 10 | EC001040 - Fuse switch disconnector |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3172070 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 230 mm, 9.1 in |
| Package Level 1 Depth / Length | 270 mm, 10.6 in |
| Package Level 1 Height | 170 mm, 6.7 in |
| Package Level 1 Gross Weight | 4.4 kg, 9.7 lb |
| Package Level 1 EAN | 6417019230580 |
| Shipping weight | 4.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
