- Part number
- 1SCA022716R0180
- Model no
- OFS260
- RoHS
Description
About the OFS260
About the OFS260

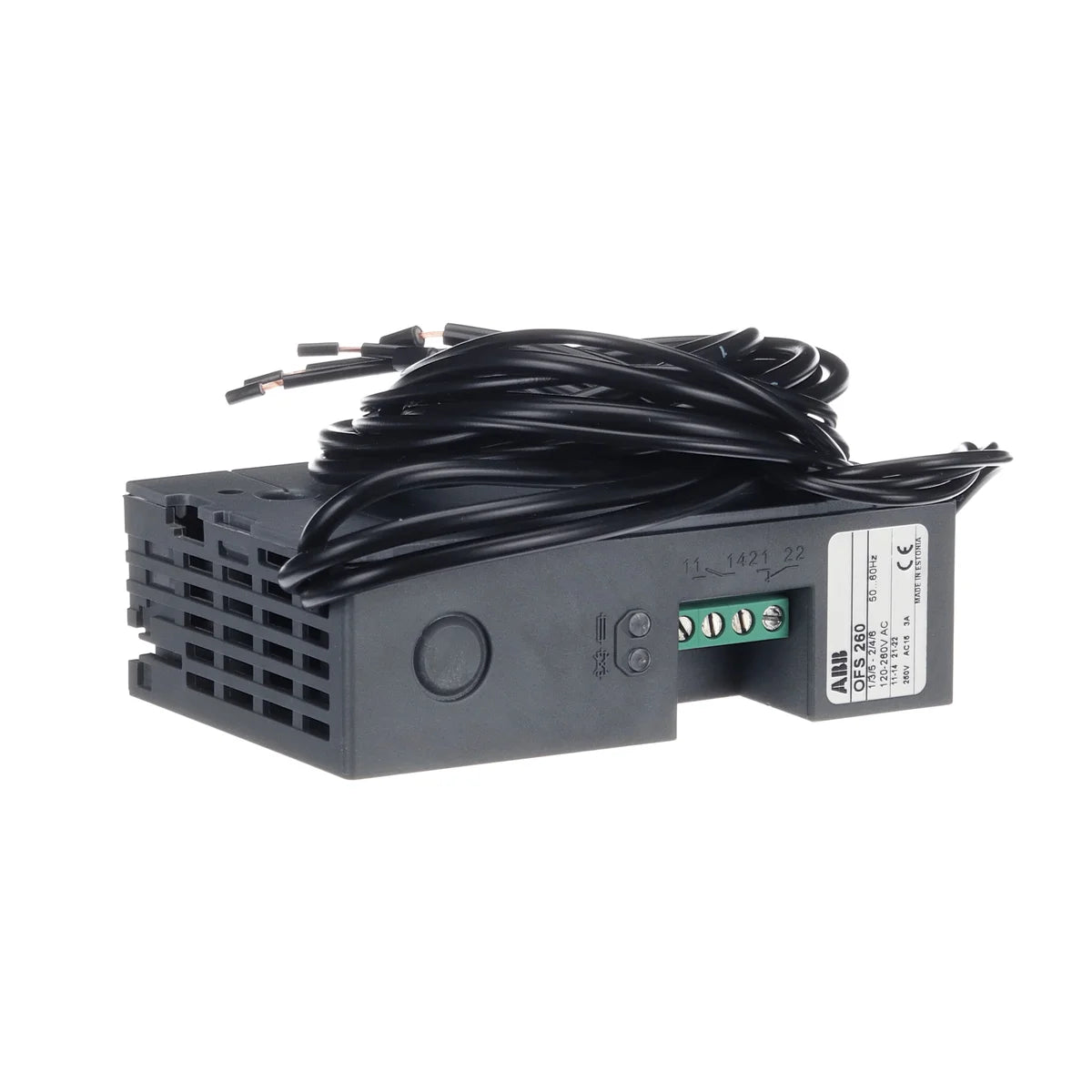

The ABB OFS260 Electronic Fuse Monitor (SKU: 1SCA022716R0180) is an industrial-grade fuse status monitoring device designed to provide reliable detection and signalling of blown fuses in control panel and switchgear applications. Operating across a wide rated voltage range of 120 to 260 VAC, the OFS260 offers flexible installation via DIN rail, mounting plate, or directly onto the left side of an OS32G-1250 switch fuse unit, making it a versatile solution for industrial automation and power distribution systems.
Certifications & Standards
- CE: Complies with European Union directives for electrical equipment safety and electromagnetic compatibility
- IEC: Designed and tested in accordance with applicable IEC international standards for industrial electrical devices
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials per EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substance safety
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling
Applications & Use Cases
- Fuse status monitoring in industrial control panels and switchgear assemblies
- Integration with OS32G-1250 switch fuse units for direct side-mount installation
- Integration with OSM motorized switch fuses for automated fuse monitoring
- Power distribution boards in manufacturing, process control, and building automation
- Machine safety systems requiring immediate indication of fuse failure
- Industrial automation lines where continuous electrical monitoring is critical
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 50 mm |
|---|---|
| Product Net Height | 100 mm |
| Product Net Depth / Length | 100 mm |
| Product Net Weight | 0.16 kg |
Technical 4
| Mounting Type | Base mounting, DIN mounting, screw mounting |
|---|---|
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Main Circuit 120…260 V AC |
| Rated Voltage (Ur) | 120…260 V |
Show all 35 specifications ↓ Show less ↑26 more values in Identification, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022716R0180 |
|---|---|
| Type designation | OFS260 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019261096 |
| ETIM class | EC002498 |
| eCl@ss | 27371392 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country of Origin | Estonia |
External Classifications and Standards 4
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
|---|---|
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371392 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 50 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.16 kg |
| Package Level 1 EAN | 6417019261096 |
| Shipping weight | 0.16 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022716R0180 4
-
Manual
ProductDownload PDF: Instructions and Manuals 1SCC314002M0003
Instructions and Manuals 1SCC314002M0003
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 1SCC011021D0201
REACH Declaration 1SCC011021D0201
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 1SCC011020D0201
RoHS Declaration 1SCC011020D0201
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 1SCC314008D2702
Declaration of Conformity - CE 1SCC314008D2702
Certifications
Certifications and standards
- RoHS
Quick answers
Questions about the OFS260
Which supply voltage is OFS260 rated for?
The rated operational voltage of OFS260 is 120–260 V AC.
What is the HS code of OFS260 for customs?
The tariff (HS) code on file for OFS260 is 85389099.
What is the EAN of OFS260?
The EAN (GTIN) of OFS260 is 6417019261096.
Where does OFS260 ship from, and how fast?
OFS260 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
