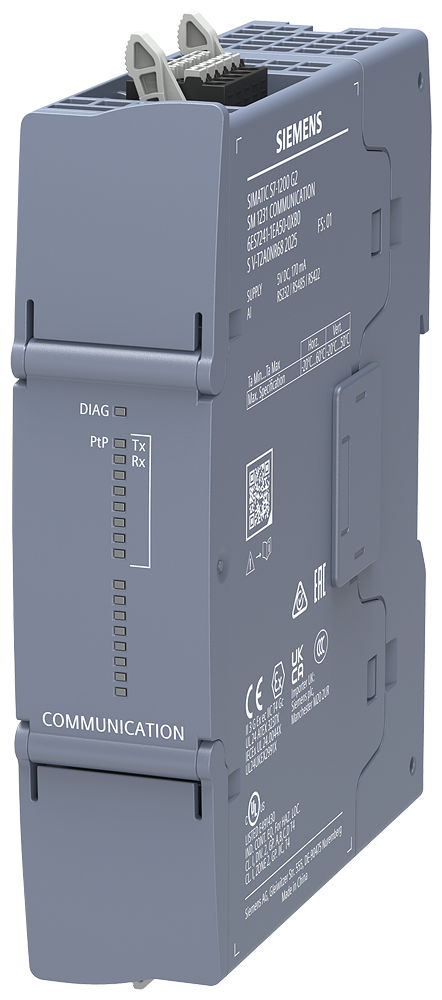

Siemens 6ES7241-1EA50-0XB0 SIMATIC S7-1200 CM 1241 RS232/422/485 Communication Module

% $-186.30
Siemens CM 1241 RS232/422/485 6ES7241-1EA50-0XB0 S7-1200 communication module
Siemens CM 1241 RS232/422/485 6ES7241-1EA50-0XB0 S7-1200 communication module

Siemens 6ES7241-1EA50-0XB0 SIMATIC S7-1200 CM 1241 RS232/422/485 Communication Module

Brand: Siemens
Reference No: 6ES7241-1EA50-0XB0
Catalog No: 6ES7241-1EA50-0XB0
Series: SIMATIC S7-1200
Tariff Code (HS): 85176200
Communication: RS232/RS422/RS485, Freeport, ASCII, Modbus RTU master/slave, USS
Stock: 34
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$186.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens CM 1241 (6ES7241-1EA50-0XB0) is a SIMATIC S7-1200 communication module with one switchable RS232/RS422/RS485 interface, supporting Freeport, ASCII, Modbus RTU master and slave, and USS protocols. It connects the S7-1200 to serial field devices such as VFDs, meters, and third-party PLCs over up to 1,000 m on RS422/485, at transmission rates up to 250 kbit/s on RS485 and 115.2 kbit/s on RS232.

Technical Specifications

SKU 6ES7241-1EA50-0XB0
Brand Siemens
Series SIMATIC S7-1200
Product type designation CM 1241 RS 232/422/485
Interfaces RS232 (full duplex) / 422 / 485, 1 interface
Cable length max 1000 m (RS422/485 shielded), 10 m (RS232)
RS232 transmission rate max 115.2 kbit/s
RS485 transmission rate max 250 kbit/s
Integrated protocols Freeport, ASCII, Modbus RTU master, Modbus RTU slave, USS
Modbus RTU master, max. devices 247
Current consumption, backplane 5V DC typ. 170 mA
Power loss, typ. 0.9 W
IP degree of protection IP20
Dimensions (W x H x D) 30 x 125 x 100 mm
Weight, approx. 178 g
Ambient temperature, operation (horizontal) -20 C to 60 C
Ambient temperature, operation (vertical) -20 C to 50 C

Certifications & Standards

  • CE
  • UL
  • cULus
  • RCM
  • KC

Selection Notes

The single switchable RS232/422/485 port lets one module serve either a short point-to-point RS232 link or a 1,000 m multidrop RS422/485 segment, covering both a nearby HMI or printer connection and a longer Modbus RTU field bus without ordering two different modules. Choose the Modbus RTU master function when the S7-1200 needs to poll VFDs or meters directly; the built-in USS driver is the alternative when the field devices are Siemens drives instead of generic Modbus slaves.

Applications

Fits S7-1200 stations that need to talk to serial VFDs, energy meters, barcode scanners, or legacy RS232/485 equipment alongside the CPU's onboard PROFINET port.

Technical Details

Short Description
CM 1241 communication module, RS232/422/485, Modbus RTU, USS, for SIMATIC S7-1200.
Protection Type
IP20
Catalog No
6ES7241-1EA50-0XB0
Standards
CE mark, UL approval, cULus, RCM (formerly C-TICK), KC approval
Delivery Date (Days)
1-2 days
Model Number
6ES7241-1EA50-0XB0
Tariff Code
85176200
