ABB 1SDA104736R1 KIT EF XT6 3pcs 800A 3-Pole Circuit Breaker Accessory

% $-164.99

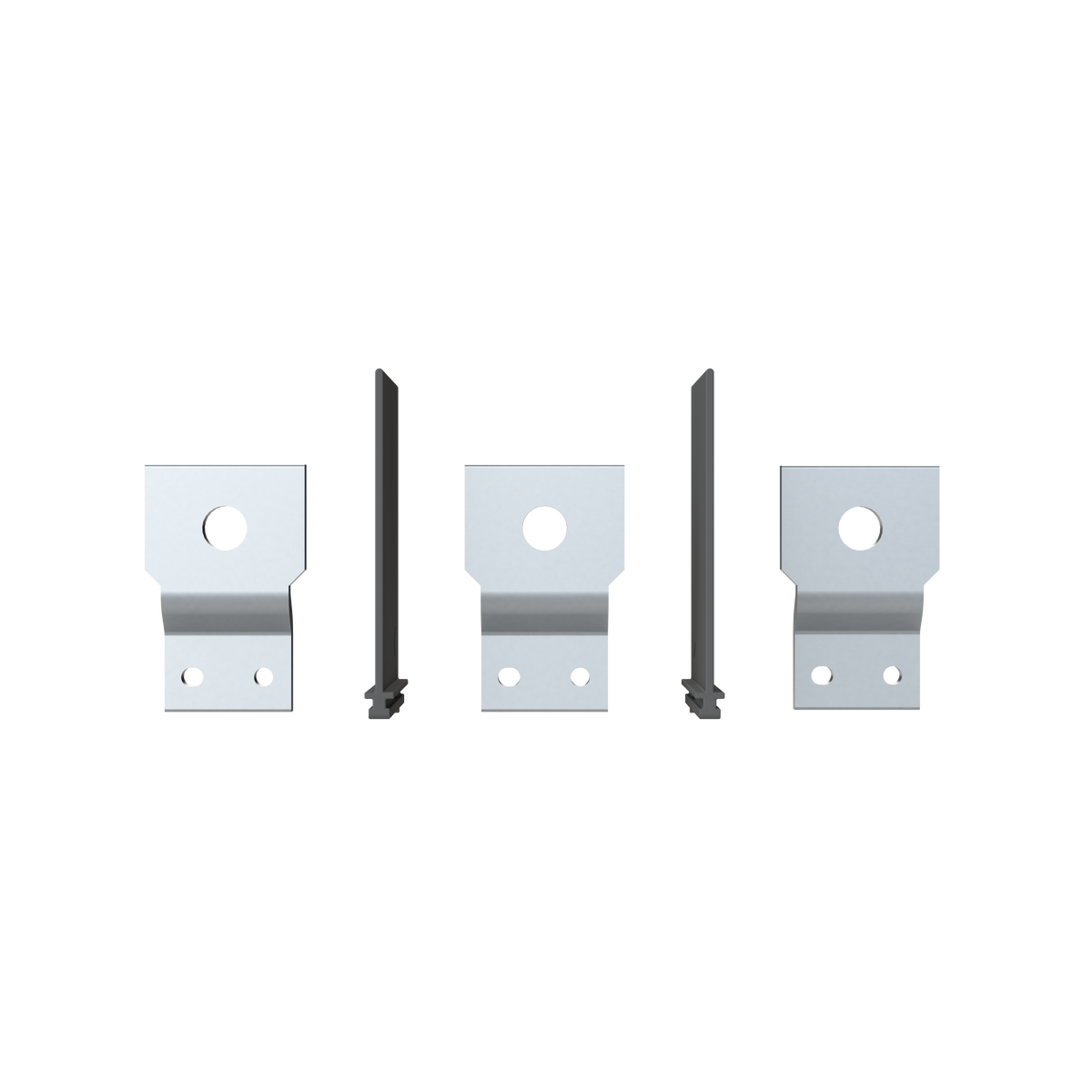

ABB 1SDA104736R1 KIT EF XT6 extended front terminal kit, 3pcs 800A
ABB 1SDA104736R1 KIT EF XT6 extended front terminal kit, 3pcs 800A

ABB 1SDA104736R1 KIT EF XT6 3pcs 800A 3-Pole Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104736R1
Catalog No: KIT EF XT6 3pcs 800A
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$164.99

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104736R1 is a KIT EF XT6 3pcs 800A extended front terminal accessory for Tmax XT6 moulded case circuit breakers rated at 800 A. Three terminal extensions give a three-pole fixed breaker added front clearance for busbar or cable-lug connections. The kit ships loose or configurable in single-piece order quantities.

Technical Specifications

SKU 1SDA104736R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation KIT EF XT6 3pcs 800A
Compatible Breaker Tmax XT6, 800 A, Fixed
Number of Poles 3P
Terminal Connection Type Front Extended
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 0.5 kg
EAN 8015644068288

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

At 800 A the kit matches the lower-current XT6 frame rating, so terminal spacing is sized for a smaller busbar cross-section than the 1000 A version. Fixed three-pole breakers benefit most, since extended terminals add front depth that a withdrawable breaker does not need. Step up to the 1000 A kit when the installed breaker's rated current is higher.

Technical Details

Short Description
ABB KIT EF XT6 3pcs 800A extended front terminal kit for 3-pole Tmax XT6 breakers.
Mounting Type
Fixed
Catalog No
KIT EF XT6 3pcs 800A
Number of Poles
3P
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
KIT EF XT6 3pcs 800A
Tariff Code
853890
