ABB 1SDA104712R1 Kit W MP XT5 400A 4p Withdrawable Conversion Circuit Breaker Accessory

% $-190.76

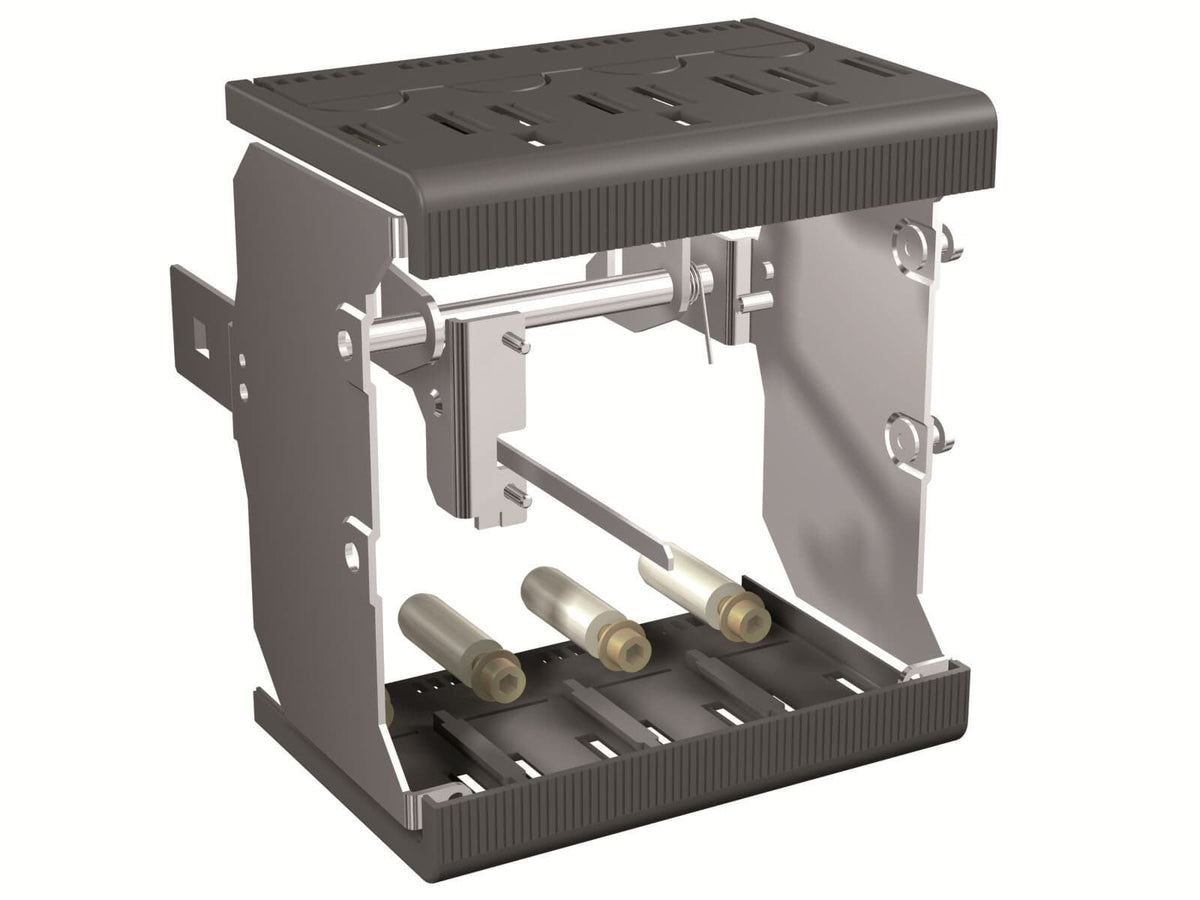

ABB 1SDA104712R1 Kit W MP XT5 withdrawable conversion kit, 400A 4p
ABB 1SDA104712R1 Kit W MP XT5 withdrawable conversion kit, 400A 4p

ABB 1SDA104712R1 Kit W MP XT5 400A 4p Withdrawable Conversion Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104712R1
Catalog No: Kit W MP XT5 400A 4p
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$190.76

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104712R1 is a Kit W MP XT5 400A 4p moving-part conversion kit converting a four-pole Tmax XT5 breaker rated 400 A to withdrawable mounting. Rated and uninterrupted current remain 400 A across all four poles after conversion. The kit is supplied loose or configurable, one piece per order.

Technical Specifications

SKU 1SDA104712R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation Kit W MP XT5 400A 4p
Number of Poles 4P
Rated Current In 400 A
Rated Uninterrupted Current Iu 400 A
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 0.302 kg
EAN 8015644068042

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

Withdrawable mounting on all four poles allows the breaker to be racked to a test or isolated position without disconnecting the cassette wiring, which a fixed or plug-in version cannot do. Current rating stays at 400 A In/Iu through the conversion. Pick the three-pole version instead for a three-pole 400 A XT5 breaker.

Technical Details

Short Description
ABB Kit W MP XT5 400A 4p withdrawable moving-part conversion kit for a 4-pole Tmax XT5 breaker.
Mounting Type
Withdrawable
Catalog No
Kit W MP XT5 400A 4p
Number of Poles
4P
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
Kit W MP XT5 400A 4p
Tariff Code
853890
