ABB 1SDA104709R1 Kit P MP XT5 630A 3p Plug-In Conversion Circuit Breaker Accessory

% $-110.09

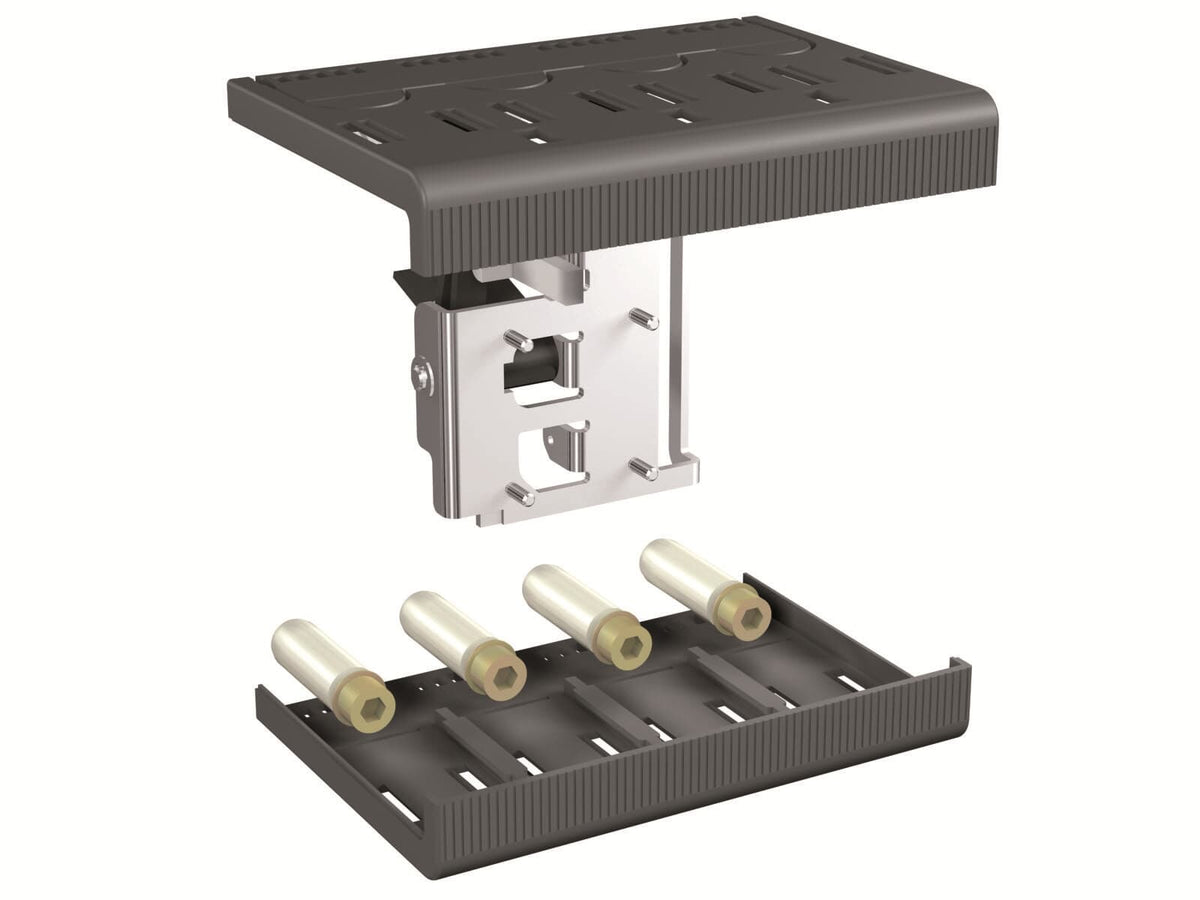

ABB 1SDA104709R1 Kit P MP XT5 plug-in conversion kit, 630A 3p
ABB 1SDA104709R1 Kit P MP XT5 plug-in conversion kit, 630A 3p

ABB 1SDA104709R1 Kit P MP XT5 630A 3p Plug-In Conversion Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104709R1
Catalog No: Kit P MP XT5 630A 3p
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$110.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104709R1 is a Kit P MP XT5 630A 3p moving-part conversion kit that converts a three-pole Tmax XT5 breaker to plug-in mounting, with a rated current In of 600 A and uninterrupted current Iu of 630 A. It is supplied loose or configurable, one piece per order, for front-accessible breaker removal without disturbing busbar wiring.

Technical Specifications

SKU 1SDA104709R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation Kit P MP XT5 630A 3p
Number of Poles 3P
Rated Current In 600 A
Rated Uninterrupted Current Iu 630 A
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 0.302 kg
EAN 8056221026772

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

The 630 A uninterrupted rating, with In at 600 A, sizes this kit for the higher XT5 frame step, above the 400 A plug-in kits in the same accessory family. Plug-in mounting keeps front-of-panel breaker removal available at this higher current without a fixed installation's rear-access requirement. Use the matching four-pole kit instead for a four-pole 630 A XT5 breaker.

Technical Details

Short Description
ABB Kit P MP XT5 630A 3p plug-in moving-part conversion kit for a 3-pole Tmax XT5 breaker.
Mounting Type
Plug-In
Catalog No
Kit P MP XT5 630A 3p
Number of Poles
3P
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
Kit P MP XT5 630A 3p
Tariff Code
853890
