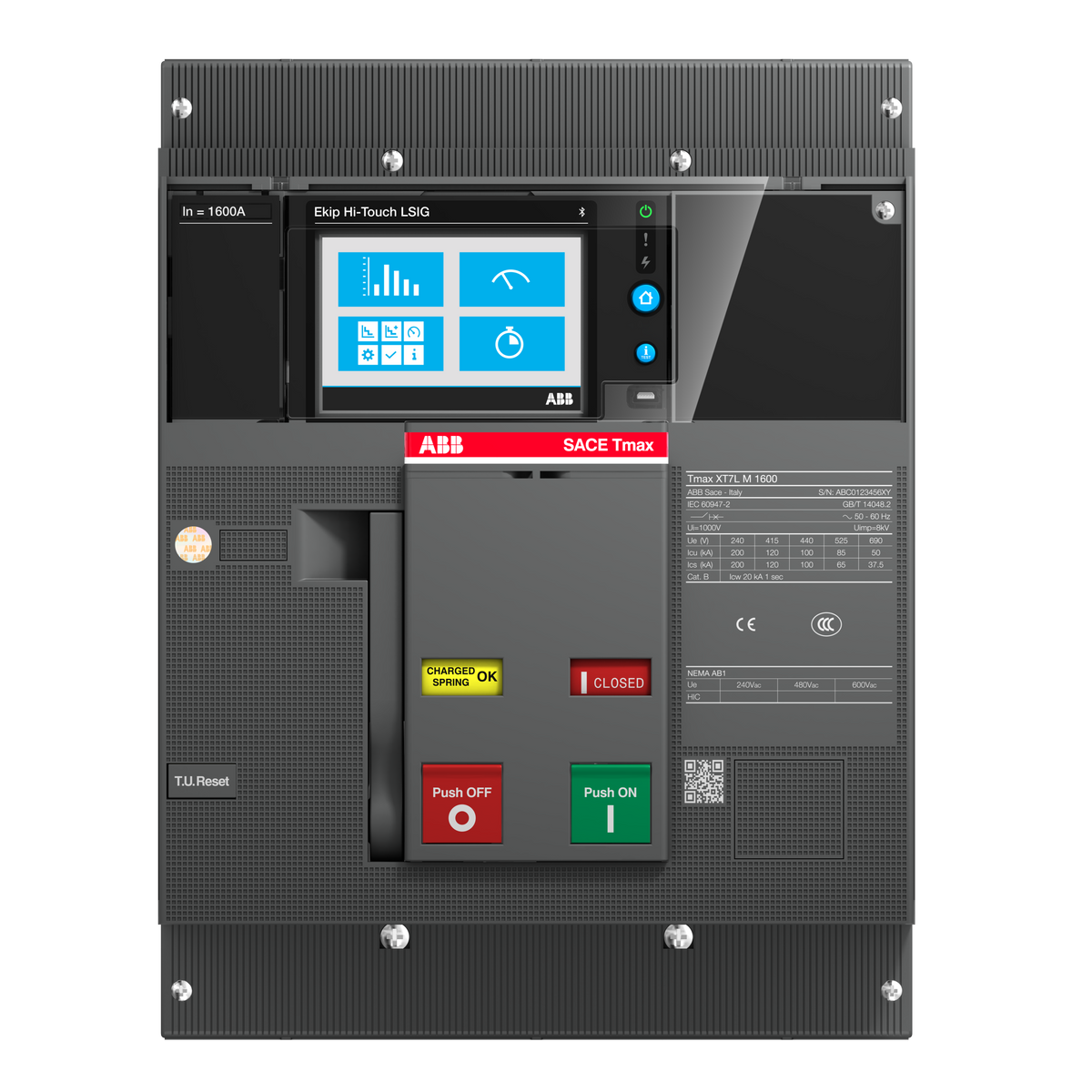

ABB 1SDA101386R1 XT7S M 800 Ekip Touch Meas.LSI 800 3p FF 50kA Molded Case Circuit Breaker (MCCB)

% $-1,704.97
ABB 1SDA101386R1 XT7S M 800 Ekip Touch LSI 3P MCCB - 50kA breaking capacity
ABB 1SDA101386R1 XT7S M 800 Ekip Touch LSI 3P MCCB - 50kA breaking capacity

ABB 1SDA101386R1 XT7S M 800 Ekip Touch Meas.LSI 800 3p FF 50kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA101386R1
Catalog No: XT7S M 800 Ekip Touch Meas.LSI 800 3p FF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 800
Breaking Capacity: 50 kA
Breaking Type: Ekip Touch Measuring LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,704.97

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SDA101386R1 is a three-pole Tmax XT7S M molded case circuit breaker rated 800 A, with a stored-energy spring plus lever mechanism and an Ekip Touch Measuring LSI electronic release. It is rated 690 V AC and breaks up to 50 kA at 400-440 V AC, with a 20 kA short-time withstand current.

Technical Specifications

SKU 1SDA101386R1
Brand ABB
Series Tmax XT
Extended Product Type XT7S M 800 Ekip Touch Meas.LSI 800 3p FF
EAN 8056221012041
Number of Poles 3P
Rated Current (In/Iu) 800 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Short-time Withstand Current (Icw) 20 kA
Release / Trip Unit Ekip Touch Measuring LSI
Release Type Electronic (EL)
Short-Circuit Performance Level S
Terminal Connection Front
Mounting Fixed
Power Loss per Pole 24 W
Dimensions (W x H x D) 210 x 268 x 178 mm
Net Weight 9.7 kg
Ambient Operating Temperature -40 to 125 deg C

Certifications & Standards

  • IEC 60947-2

Selection Notes

The stored-energy mechanism distinguishes this unit from the plain-lever 800 A, three-pole XT7S at the same rating and 50 kA breaking capacity - pick this M version where the breaker will be opened and closed often (20,000 vs 10,000 mechanical cycles). Step up to the 1000, 1250, or 1600 A siblings in the same frame if 800 A does not clear the feeder's calculated current with margin.

Technical Details

Short Description
ABB 1SDA101386R1 - Tmax XT7S M 800A 3P MCCB, stored-energy mechanism, Ekip Touch Meas.LSI release, 50kA at 400-440V AC, 690V AC rated.
Rated Current (Ampere)
800
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7S M 800 Ekip Touch Meas.LSI 800 3p FF
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7S M 800 Ekip Touch Meas.LSI 800 3p FF
Tariff Code
853620
