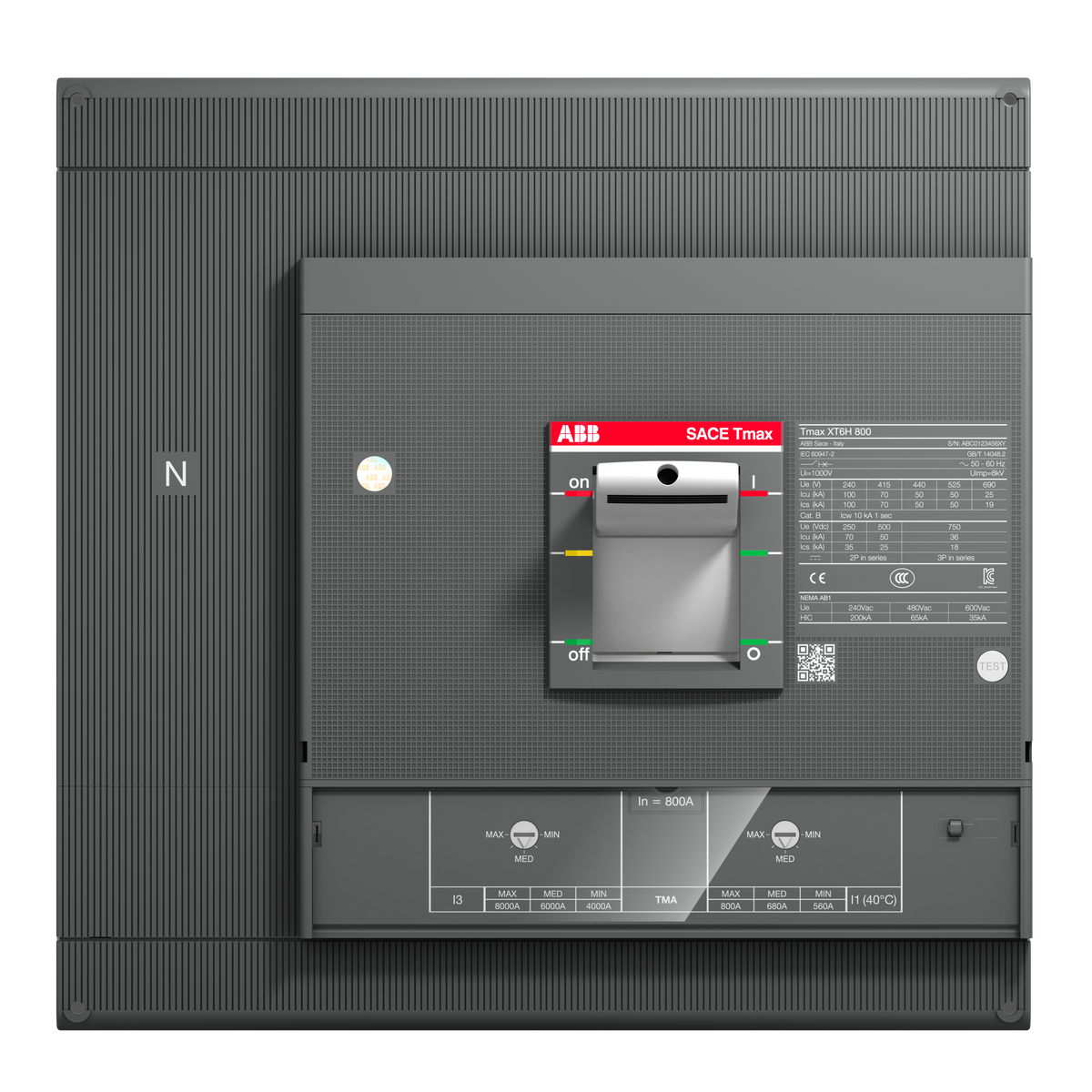

ABB 1SDA100775R1 XT6H 800 TMA 800-8000 4p F F InN=100%In 70kA Molded Case Circuit Breaker (MCCB)

% $-1,833.51
ABB 1SDA100775R1 XT6H 800 TMA MCCB - 70kA 4P AC/DC
ABB 1SDA100775R1 XT6H 800 TMA MCCB - 70kA 4P AC/DC

ABB 1SDA100775R1 XT6H 800 TMA 800-8000 4p F F InN=100%In 70kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA100775R1
Catalog No: XT6H 800 TMA 800-8000 4p F F InN=100%In
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 800
Breaking Capacity: 70 kA
Breaking Type: TMA
Rated Voltage: 690 V AC / 750 V DC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,833.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA100775R1 is a Tmax XT6H 800 moulded case circuit breaker with a TMA thermomagnetic release, rated In 800 A across four poles with a fully rated neutral (InN=100%In). AC/DC current type and short-circuit performance class H give it a 70 kA breaking capacity at 415 V AC, with an adjustable 560-800 A thermal band and 4000-8000 A instantaneous trip range.

Technical Specifications

SKU 1SDA100775R1
Brand ABB
Series Tmax XT
Catalog Designation XT6H 800 TMA 800-8000 4p F F InN=100%In
EAN 8056221008297
Sub-type XT6
Number of Poles 4P
Rated Current (In) 800 A
Rated Uninterrupted Current (Iu) 800 A
Thermal Setting Range 560-800 A
Magnetic Trip Setting (Ii) 4000-8000 A
Release TMA (thermomagnetic, type TM)
Short-Circuit Performance Level H
Current Type AC/DC
Rated Operational Voltage (Ue) 690 V AC / 750 V DC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 100 kA at 220-240 V AC, 70 kA at 380-415 V AC, 50 kA at 440-525 V AC, 25 kA at 690 V AC; 70 kA at 250 V DC (2 poles), 50 kA at 500 V DC (2 poles), 36 kA at 750 V DC (3 poles)
Rated Service Breaking Capacity (Ics) 100 kA at 220-240 V AC, 70 kA at 380-415 V AC, 50 kA at 440-525 V AC, 25 kA at 690 V AC; 35 kA at 250 V DC (2 poles), 25 kA at 500 V DC (2 poles), 18 kA at 750 V DC (3 poles)
Rated Short-Time Withstand Current (Icw) 10 kA
Power Loss 54.2 W
Rated Frequency 50/60 Hz
Dimensions (W x H x D) 280 x 268 x 103.5 mm
Net Weight 12 kg

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

The 1SDA100775R1 is the AC/DC TMA counterpart of the 800 A Ekip Dip LS/I breaker, sharing the same 10 kA short-time withstand (Icw) and 70 kA Icu/Ics at 415 V AC but adding a 750 V DC rating for mixed-current or DC distribution boards. Its DC breaking capacity is asymmetric: the ultimate rating (Icu) reaches 70 kA at 250 V DC and 36 kA at 750 V DC in three-pole series, roughly double the corresponding service rating (Ics), so DC coordination studies should use the lower Ics figures rather than Icu. The adjustable 560-800 A thermal band and 4000-8000 A instantaneous trip give the same field-tunable protection as the smaller 400 A and 630 A TMA siblings, scaled to the XT6 frame.

Technical Details

Short Description
ABB Tmax XT6H 800 MCCB, TMA release, 4-pole, AC/DC, 70 kA at 415 V AC.
Rated Current (Ampere)
800
Breaking Capacity (kA)
70 kA
Rated Voltage (VAC)
690 V AC / 750 V DC
Mounting Type
Fixed
Catalog No
XT6H 800 TMA 800-8000 4p F F InN=100%In
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT6H 800 TMA 800-8000 4p F F InN=100%In
Tariff Code
853620
