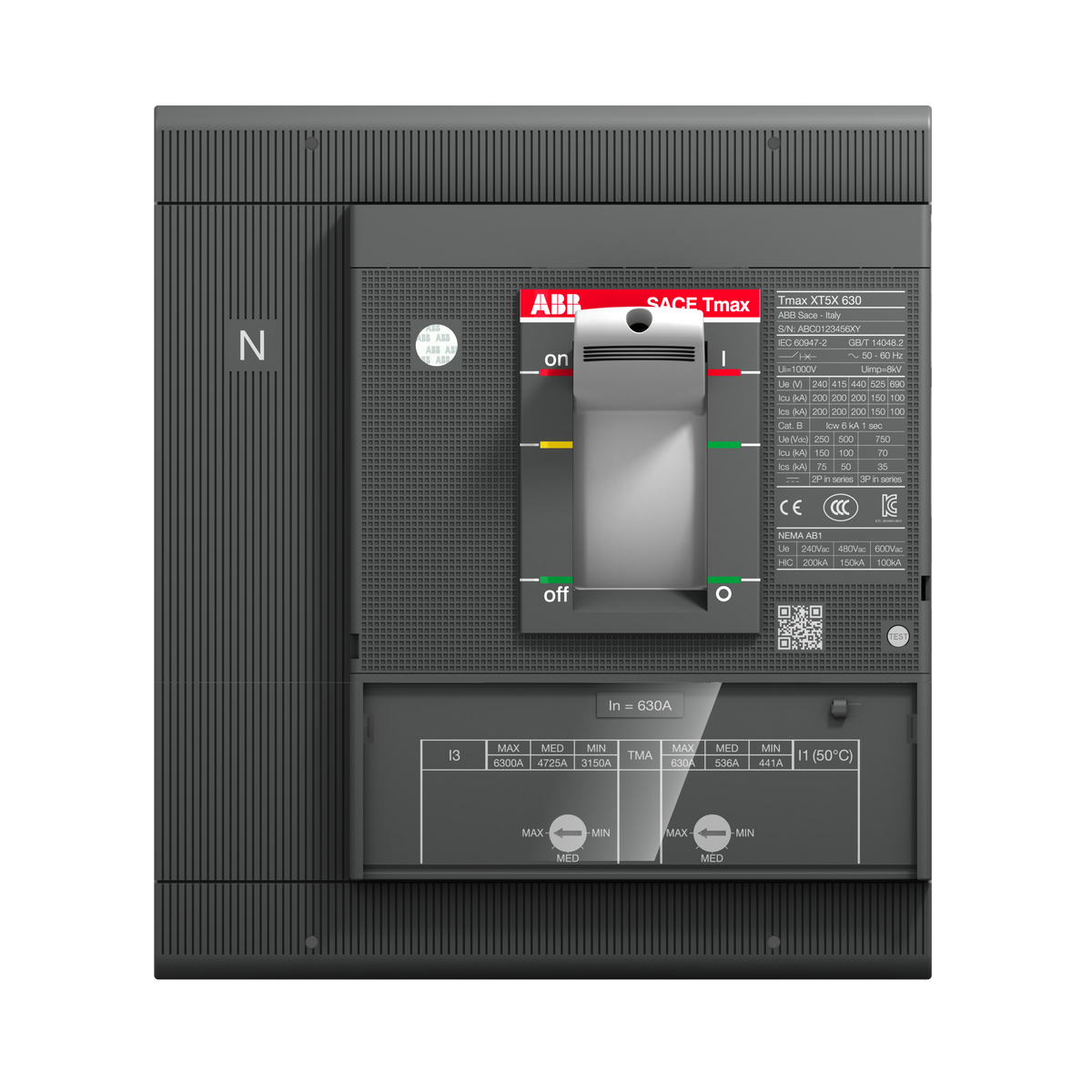

ABB 1SDA100521R1 XT5H 400 TMA 400-4000 4p F F InN=100%In 70kA Molded Case Circuit Breaker (MCCB)

% $-1,089.21
ABB 1SDA100521R1 XT5H 400 TMA MCCB - 70kA 4P AC/DC
ABB 1SDA100521R1 XT5H 400 TMA MCCB - 70kA 4P AC/DC

ABB 1SDA100521R1 XT5H 400 TMA 400-4000 4p F F InN=100%In 70kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA100521R1
Catalog No: XT5H 400 TMA 400-4000 4p F F InN=100%In
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 400
Breaking Capacity: 70 kA
Breaking Type: TMA
Rated Voltage: 690 V AC / 750 V DC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,089.21

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA100521R1 is a Tmax XT5H 400 moulded case circuit breaker with a TMA thermomagnetic release, rated In 400 A across four poles with a fully rated neutral (InN=100%In). AC/DC current type and short-circuit performance class H give it a 70 kA breaking capacity at 415 V AC, with an adjustable 280-400 A thermal band and 2000-4000 A instantaneous trip range for coordinated protection.

Technical Specifications

SKU 1SDA100521R1
Brand ABB
Series Tmax XT
Catalog Designation XT5H 400 TMA 400-4000 4p F F InN=100%In
EAN 8056221005975
Sub-type XT5
Number of Poles 4P
Rated Current (In) 400 A
Rated Uninterrupted Current (Iu) 400 A
Thermal Setting Range 280-400 A
Magnetic Trip Setting (Ii) 2000-4000 A
Release TMA (thermomagnetic, type TM)
Short-Circuit Performance Level H
Current Type AC/DC
Rated Operational Voltage (Ue) 690 V AC / 750 V DC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 100 kA at 220-240 V AC, 70 kA at 380-415 V AC, 65 kA at 440 V AC, 50 kA at 500-525 V AC, 40 kA at 690 V AC; 50 kA at 250-500 V DC (2 poles in series)
Rated Service Breaking Capacity (Ics) equal to Icu at all listed voltages
Rated Short-Time Withstand Current (Icw) 5 kA
Power Loss 24.1 W
Rated Frequency 50/60 Hz
Dimensions (W x H x D) 186 x 205 x 103.5 mm
Net Weight 5.6 kg

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

The 1SDA100521R1 pairs a fixed TMA thermomagnetic release, adjustable 280-400 A thermal and 2000-4000 A instantaneous trip, with AC/DC current type and a 750 V DC rating that the electronic Ekip Dip LS/I sibling does not carry, making it the choice for DC distribution or mixed AC/DC boards rather than pure AC switchboards. Short-circuit performance class H holds Icu and Ics at 70 kA at 415 V AC and 50 kA across 250-500 V DC in two-pole series connection. Fully rated neutral (InN=100%In) carries the full 400 A on the neutral pole, which four-wire systems with high neutral harmonic content require.

Technical Details

Short Description
ABB Tmax XT5H 400 MCCB, TMA release, 4-pole, AC/DC, 70 kA at 415 V AC.
Rated Current (Ampere)
400
Breaking Capacity (kA)
70 kA
Rated Voltage (VAC)
690 V AC / 750 V DC
Mounting Type
Fixed
Catalog No
XT5H 400 TMA 400-4000 4p F F InN=100%In
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT5H 400 TMA 400-4000 4p F F InN=100%In
Tariff Code
853620
