ABB 1SDA067125R1 RC Sel HV 85...690Vac XT1 4p F Circuit Breaker Accessory

% $-465.73

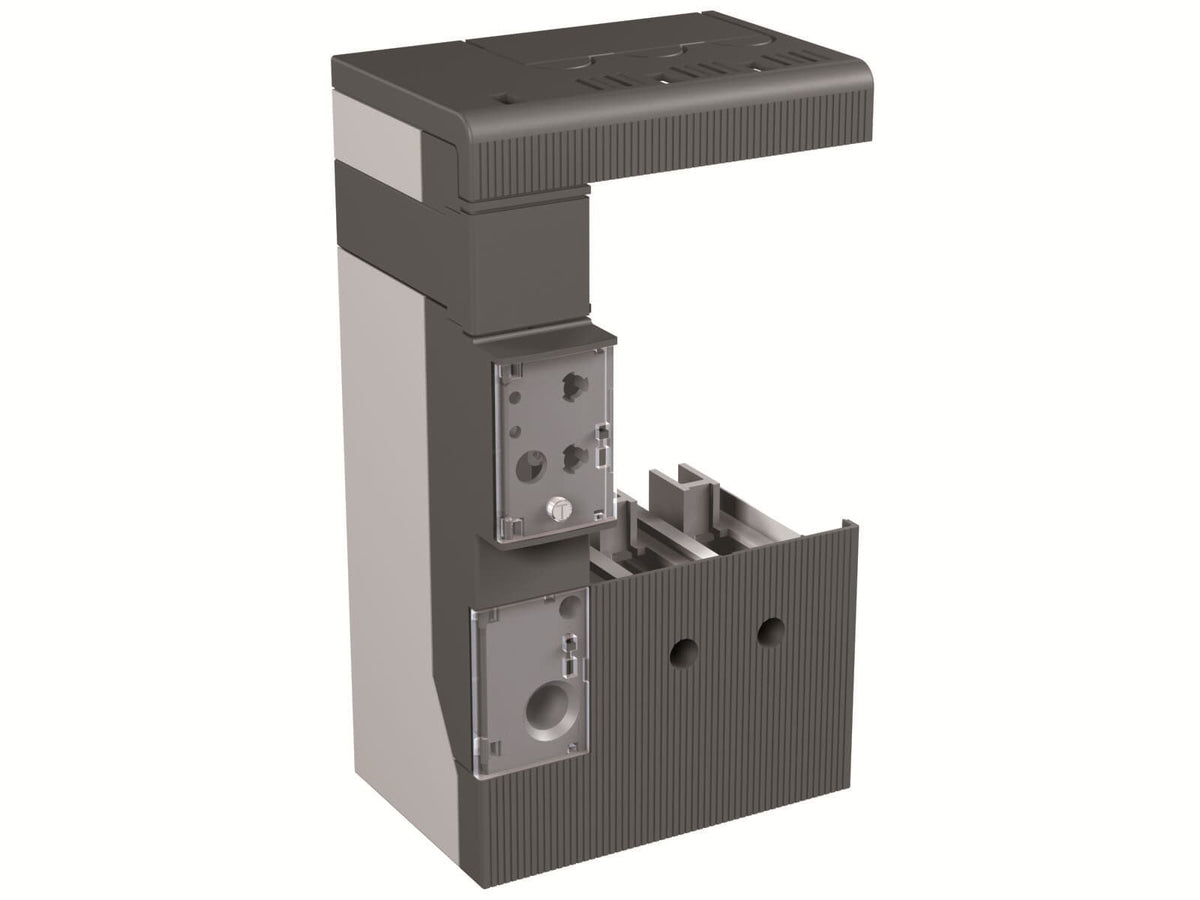

ABB 1SDA067125R1 RC Sel residual current release – Tmax XT1 4P fixed
ABB 1SDA067125R1 RC Sel residual current release – Tmax XT1 4P fixed

ABB 1SDA067125R1 RC Sel HV 85...690Vac XT1 4p F Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA067125R1
Catalog No: RC Sel HV 85...690Vac XT1 4p F
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Breaking Type: RC Sel (selective residual current release)
Rated Voltage: 85/690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$465.73

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SDA067125R1 is the four-pole version of the RC Sel HV 85...690Vac XT1 release line, fitting fixed Tmax XT1 circuit breakers across the 85-690 V AC supply range. The selective tripping delay allows downstream residual current devices to clear a fault first, preserving upstream supply continuity during an earth-fault event. Net weight 1.255 kg, configuration loose/configurable, EAN 8015644010324.

Technical Specifications

SKU 1SDA067125R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation RC Sel HV 85...690Vac XT1 4p F
EAN 8015644010324
Compatible Frame Tmax XT1, Fixed version
Number of Poles 4P
Operating Voltage Range 85...690 V AC
Release Type RC Sel (selective residual current)
Configuration Type Loose or configurable
Net Weight 1.255 kg

Certifications & Standards

  • IEC 60947-2

Selection Notes

Specify this four-pole version when the installation includes a neutral conductor that also needs residual current monitoring on the Tmax XT1 breaker; weight increases to 1.255 kg versus the three-pole equivalent to accommodate the extra pole. The selective delay keeps it coordinating with downstream devices rather than tripping instantaneously.

Technical Details

Short Description
Selective residual current release, 85-690 V AC, for fixed four-pole ABB Tmax XT1 circuit breakers.
Rated Voltage (VAC)
85/690 V AC
Mounting Type
Fixed
Catalog No
RC Sel HV 85...690Vac XT1 4p F
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
RC Sel HV 85...690Vac XT1 4p F
Tariff Code
853890
