ABB 1SDA067121R1 RC Sel 200 HV 85...690Vac XT1 4p F Circuit Breaker Accessory

% $-479.01

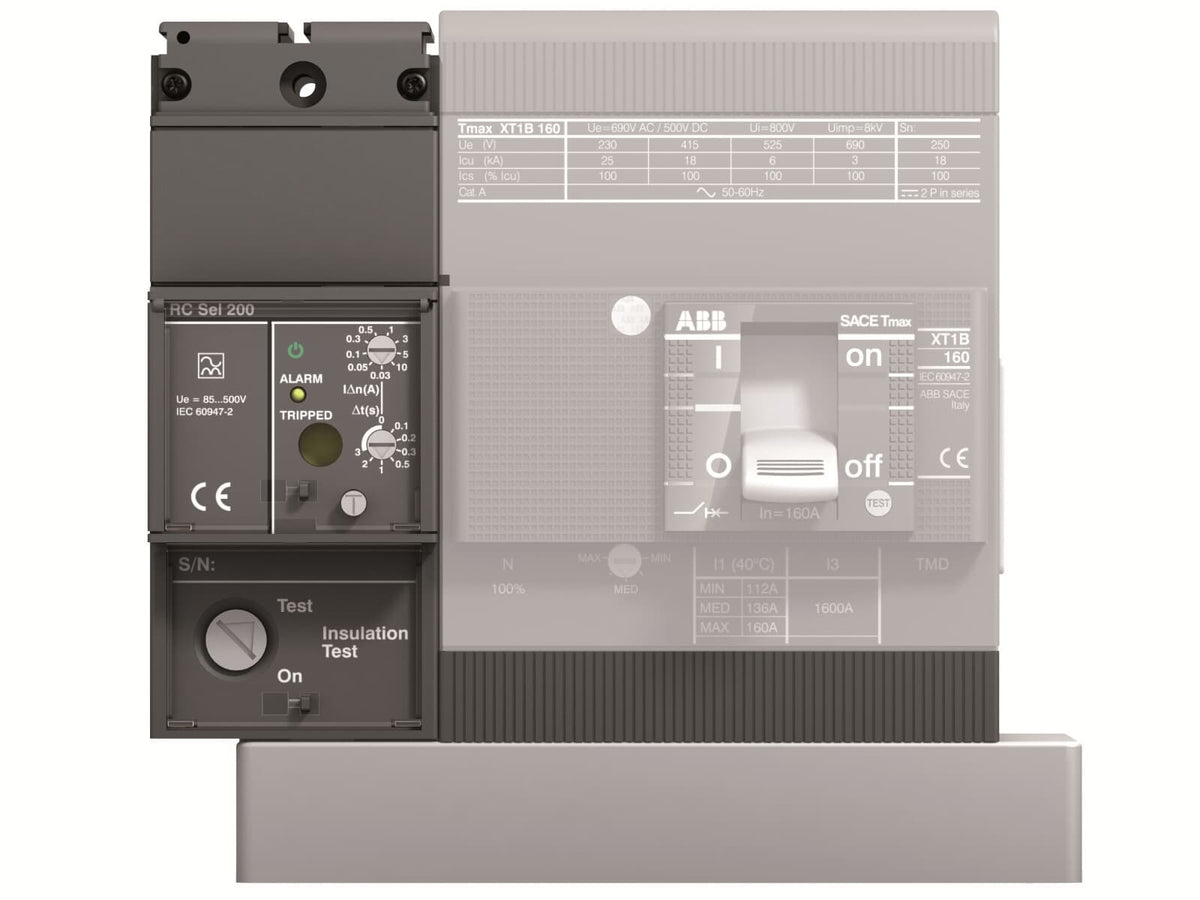

ABB 1SDA067121R1 RC Sel 200 residual current release – Tmax XT1 4P fixed
ABB 1SDA067121R1 RC Sel 200 residual current release – Tmax XT1 4P fixed

ABB 1SDA067121R1 RC Sel 200 HV 85...690Vac XT1 4p F Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA067121R1
Catalog No: RC Sel 200 HV 85...690Vac XT1 4p F
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Breaking Type: RC Sel 200 (selective residual current release, 200 mm module)
Rated Voltage: 85/690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$479.01

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SDA067121R1, designation RC Sel 200 HV 85...690Vac XT1 4p F, is a selective residual current release sized for the 200 mm module width on fixed four-pole Tmax XT1 circuit breakers across the 85-690 V AC range. The selective tripping characteristic adds a short delay so it can coordinate with downstream residual current devices instead of tripping instantaneously. EAN 8015644010287.

Technical Specifications

SKU 1SDA067121R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation RC Sel 200 HV 85...690Vac XT1 4p F
EAN 8015644010287
Compatible Frame Tmax XT1, Fixed version
Number of Poles 4P
Operating Voltage Range 85...690 V AC
Release Type RC Sel 200 (reduced, selective residual current, 200 mm module)
Configuration Type Loose or configurable
Net Weight 1.171 kg

Certifications & Standards

  • IEC 60947-2

Selection Notes

Pick the Sel 200 variant specifically where panel space is constrained to the 200 mm module width; that dimension is built into the part number so the release only fits that mounting depth. The selective delay stage lets upstream and downstream residual current protection coordinate instead of both tripping on the same fault.

Technical Details

Short Description
Selective residual current release, 200 mm module, 85-690 V AC, for fixed four-pole ABB Tmax XT1 breakers.
Rated Voltage (VAC)
85/690 V AC
Mounting Type
Fixed
Catalog No
RC Sel 200 HV 85...690Vac XT1 4p F
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
RC Sel 200 HV 85...690Vac XT1 4p F
Tariff Code
853890
