ABB 1SDA066677R1 PB 200mm 4pcs XT2-XT4 3p KIT PA.DI.PH.HI Circuit Breaker Accessory

% $-12.56

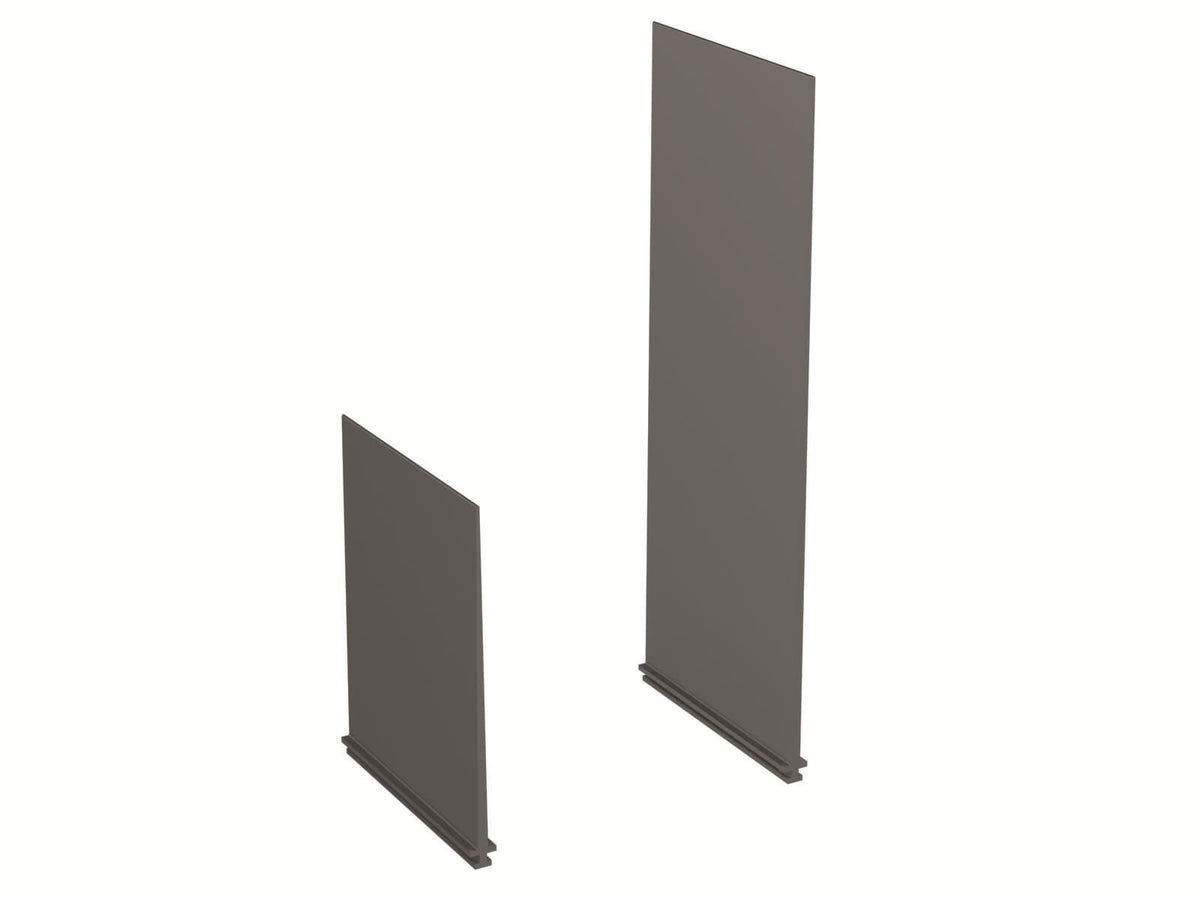

ABB 1SDA066677R1 XT2-XT4 3P phase divider partition kit – 4 pieces H=200 mm
ABB 1SDA066677R1 XT2-XT4 3P phase divider partition kit – 4 pieces H=200 mm

ABB 1SDA066677R1 PB 200mm 4pcs XT2-XT4 3p KIT PA.DI.PH.HI Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA066677R1
Catalog No: PB 200mm 4pcs XT2-XT4 3p KIT PA.DI.PH.HI
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$12.56

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA066677R1 phase divider kit supplies four partitions, H=200 mm, for three-pole Tmax XT2 and XT4 moulded case circuit breakers, designation PB 200mm 4pcs XT2-XT4 3p KIT PA.DI.PH.HI. Installed between adjacent breakers, the taller 200 mm panels extend phase separation across the full breaker body height, reducing phase-to-phase flashover risk. EAN 8015644693862, order multiple 1 piece.

Technical Specifications

SKU 1SDA066677R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation PB 200mm 4pcs XT2-XT4 3p KIT PA.DI.PH.HI
EAN 8015644693862
Compatible Frame Tmax XT2, XT4
Number of Poles 3P
Partition Height 200 mm
Pieces per Kit 4
Configuration Type Loose or configurable
Net Weight 0.167 kg

Certifications & Standards

  • IEC 60947-2

Selection Notes

Specify this kit for three-pole installations where XT2 or XT4 breakers share the same panel row, since one part number covers both frame sizes. The H=200 mm partition height is taller than the XT6 100 mm kit, matching the larger XT2/XT4 breaker body rather than the smaller XT6 frame.

Technical Details

Short Description
4-piece H=200 mm phase divider partition kit for ABB Tmax XT2/XT4 three-pole moulded case circuit breakers.
Catalog No
PB 200mm 4pcs XT2-XT4 3p KIT PA.DI.PH.HI
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
PB 200mm 4pcs XT2-XT4 3p KIT PA.DI.PH.HI
Tariff Code
853890
