Mersen Y1022992 3.083.300 NH fuse-switch disconnector MULTIBLOC® Size 00 160A 3-Pole switching Bus bar system Connection Clamp fixed windows

% $-133.00

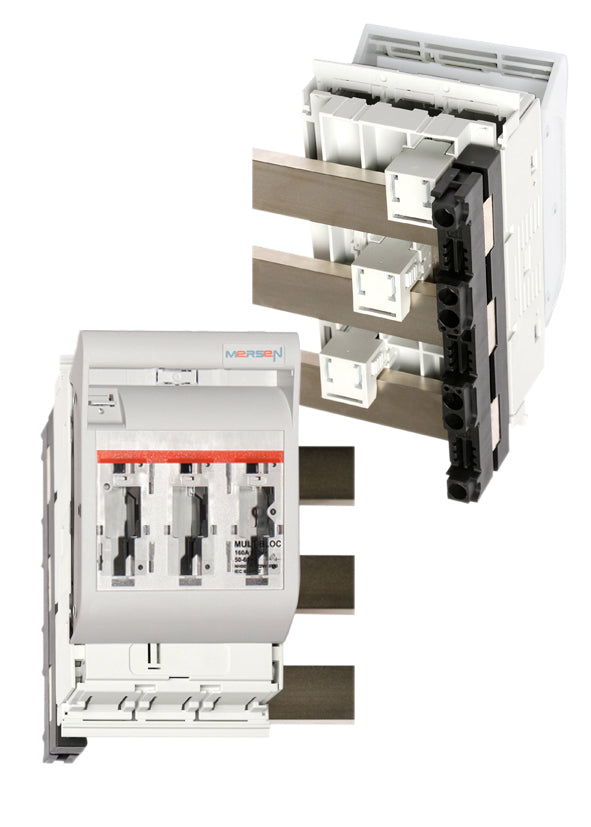

Mersen Y1022992 Fuse Switch Disconnector
Mersen Y1022992 Fuse Switch Disconnector

Mersen Y1022992 3.083.300 NH fuse-switch disconnector MULTIBLOC® Size 00 160A 3-Pole switching Bus bar system Connection Clamp fixed windows

Brand: Mersen
Reference No: Y1022992
Catalog No: 3.083.300
Series: MULTIBLOC® 00.RST9 , Size 00, 160A, 690VAC, Design for bus bar installation, Triple Pole
Tariff Code (HS): 85362090
Rated Current: 160 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$133.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 3.083.300 (Y1022992) is a nH fuse-switch disconnector MULTIBLOC® Size 00 160A 3-Pole switching Bus bar system Connection Clamp fixed windows from the MULTIBLOC® 00.RST9 , Size 00, 160A, 690VAC, Design for bus bar installation, Triple Pole range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 3.083.300
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 690 V
Rated voltage DC IEC 440 V
Ampere Rating 160 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 160 A AC 22 B @ Ue = AC 500 V; Ie = 160 A AC 21 B @ Ue = AC 690 V; Ie = 160 A DC 22 B @ Ue = DC 220 V; Ie = 160 A DC 21 B @ Ue = DC 440 V; Ie = 100 A
Switchability 3-pole switching
ROHS Compliant Yes
AC or DC AC/DC
Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 160 A / 80kA@Ue = AC 500 V; Ie = 160 A / 80kA@Ue = AC 690 V; Ie = 125 A
Fuse Size 00
Design Details fixed window to protect against unauthorized connection
Number of Poles 3-Pole
Degree of Pollution 3
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 4 kA / 1 s
Max Power dissipation of Fuse Links Pn 12 W
Max Power dissipation of Solid Links Pn 1.2 W
Power Dissipation by Ith without Fuse-Links 12 W
Power Dissipation by Ith without Solid Links 19 W
Rated short circuit making capacity with solid links Icm 6.2 kA
Installation Mounting Bus bar system 60 mm (snap on)
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 160 A
Conventional Free Air thermal Current - Solid Links 200 A
Product Width 108 mm
Product Length 95.5 mm
Product Height 202 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 0.88 kg
Sell Pack Width 111 mm
Sell Pack Length 205 mm
Sell Pack Height 120 mm
Product Weight 0.88 kg
EAN/UPC 9008567008171

Certifications & Compliance

  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
NH fuse-switch disconnector MULTIBLOC® Size 00 160A 3-Pole switching Bus bar system Connection Clamp fixed windows
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Bus bar system 60 mm (snap on)
Catalog No
3.083.300
Standards
CE, RoHS, UKCA, REACH
Model Number
3.083.300
Tariff Code
85362090
