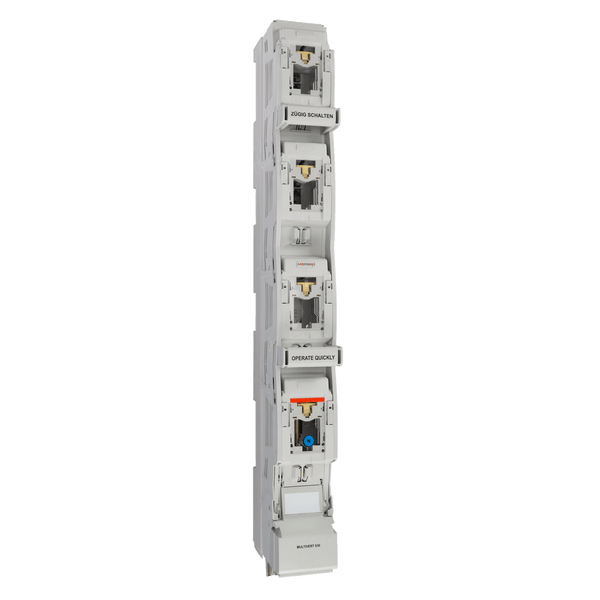

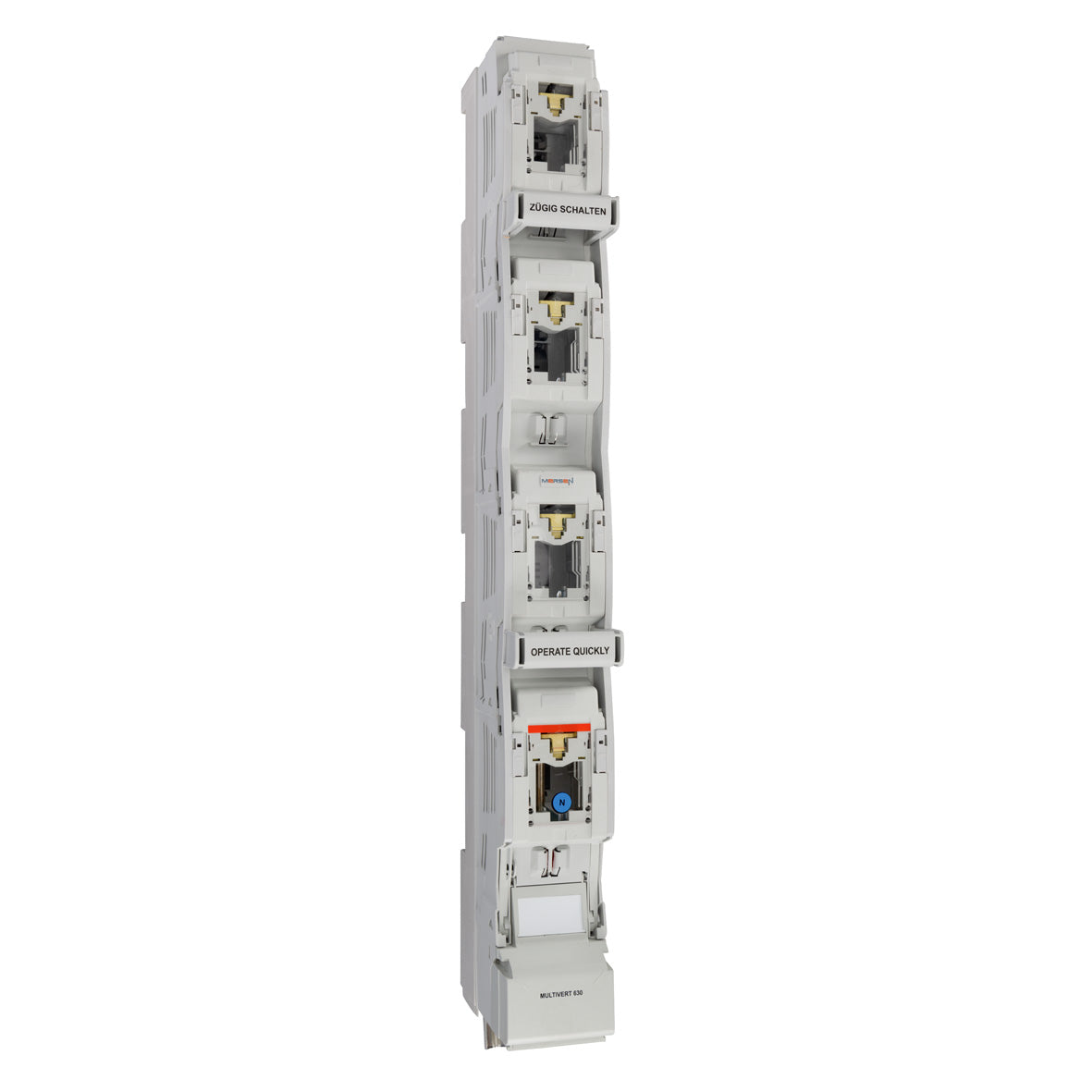

Mersen X1058273 Fuse Switch Disconnector
Mersen X1058273 Fuse Switch Disconnector
Mersen X1058273 Fuse Switch Disconnector
Mersen X1058273 Fuse Switch Disconnector

Mersen X1058273 4.380.000 NH fuse-switch disconnector MULTIVERT® Size 3 630A 1x4-pole switching Bus bar system 185mm Screw M12

Brand: Mersen
Reference No: X1058273
Catalog No: 4.380.000
Series: MULTIVERT® 630A 4P (3P+N), Size 3, 690VAC
Tariff Code (HS): 85362090
Rated Current: 630 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$1,510.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 4.380.000 (X1058273) is a nH fuse-switch disconnector MULTIVERT® Size 3 630A 1x4-pole switching Bus bar system 185mm Screw M12 from the MULTIVERT® 630A 4P (3P+N), Size 3, 690VAC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 4.380.000
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 690 V
Ampere Rating 630 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 630 A AC 22 B @ Ue = AC 500 V; Ie = 630 A AC 21 B @ Ue = AC 690 V; Ie = 630 A
Switchability 1x4-pole switching
ROHS Compliant Yes
AC or DC AC
Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 630 A / 80kA@Ue = AC 500 V; Ie = 630 A / 50kA@Ue = AC 690 V; Ie = 500 A
Fuse Size 3
Design Details 4P (3P+N), MULTIVERT with lateral busbar terminals, busbar coupler switch
Number of Poles 3-Pole+N
Degree of Pollution 3
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 12 kA / 1 s
Max Power dissipation of Fuse Links Pn 48 W
Max Power dissipation of Solid Links Pn 17 W
Power Dissipation by Ith without Fuse-Links 147 W
Power Dissipation by Ith without Solid Links 243 W
Rated short circuit making capacity with solid links Icm 16 kA
Installation Mounting Bus bar system 185 mm
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 630 A
Conventional Free Air thermal Current - Solid Links 800 A
Product Width 100 mm
Product Length 186 mm
Product Height 885 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 6.5 kg
Sell Pack Width 210 mm
Sell Pack Length 950 mm
Sell Pack Height 110 mm
Product Weight 6.5 kg
EAN/UPC 9008567014110

Certifications & Compliance

  • CCC
  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
NH fuse-switch disconnector MULTIVERT® Size 3 630A 1x4-pole switching Bus bar system 185mm Screw M12
Rated Current (Ampere)
630 A
Rated Voltage (VAC)
690 V
Mounting Type
Bus bar system 185 mm
Catalog No
4.380.000
Standards
CCC, CE, RoHS, UKCA, REACH
Model Number
4.380.000
Tariff Code
85362090
