Mersen W1022990 2.074.000 NH fuse-switch disconnector MULTIBLOC® Size 00 160A 3-Pole switching Bus bar system 40mm Connection Clamp Strap clamp straps M8

% $-133.23

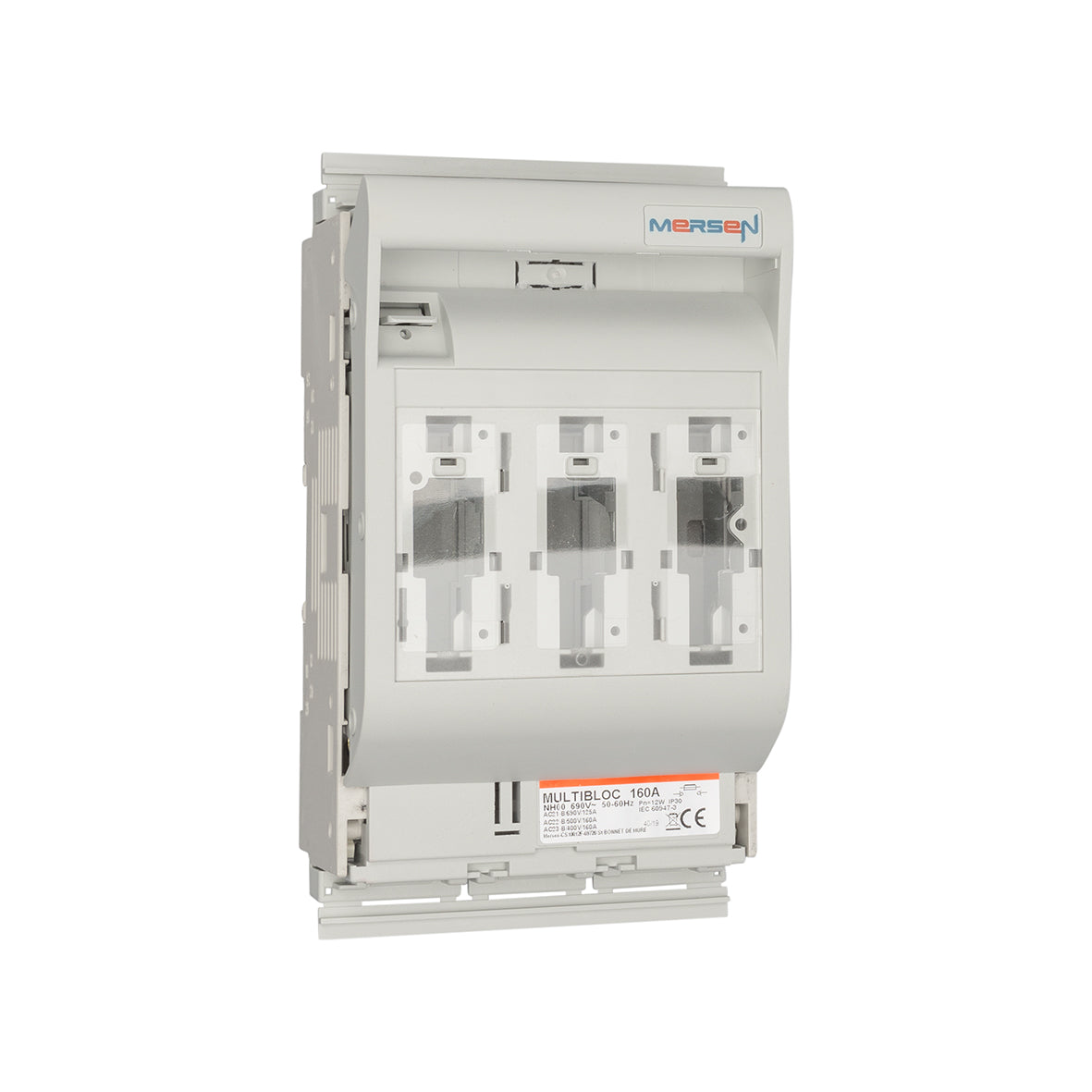

Mersen W1022990 Fuse Switch Disconnector
Mersen W1022990 Fuse Switch Disconnector

Mersen W1022990 2.074.000 NH fuse-switch disconnector MULTIBLOC® Size 00 160A 3-Pole switching Bus bar system 40mm Connection Clamp Strap clamp straps M8

Brand: Mersen
Reference No: W1022990
Catalog No: 2.074.000
Series: MULTIBLOC® 00.RST9 , Size 00, 160A, 690VAC, Design for bus bar installation, Triple Pole
Tariff Code (HS): 85362090
Rated Current: 160 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$133.23

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 2.074.000 (W1022990) is a nH fuse-switch disconnector MULTIBLOC® Size 00 160A 3-Pole switching Bus bar system 40mm Connection Clamp Strap clamp straps M8 from the MULTIBLOC® 00.RST9 , Size 00, 160A, 690VAC, Design for bus bar installation, Triple Pole range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 2.074.000
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 690 V
Rated voltage DC IEC 440 V
Ampere Rating 160 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 160 A AC 22 B @ Ue = AC 500 V; Ie = 160 A AC 21 B @ Ue = AC 690 V; Ie = 160 A DC 22 B @ Ue = DC 220 V; Ie = 160 A DC 21 B @ Ue = DC 440 V; Ie = 100 A
Switchability 3-pole switching
ROHS Compliant Yes
AC or DC AC/DC
Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 160 A / 80kA@Ue = AC 500 V; Ie = 160 A / 80kA@Ue = AC 690 V; Ie = 125 A
Fuse Size 00
Number of Poles 3-Pole
Degree of Pollution 3
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 4 kA / 1 s
Max Power dissipation of Fuse Links Pn 12 W
Max Power dissipation of Solid Links Pn 1.2 W
Power Dissipation by Ith without Fuse-Links 12 W
Power Dissipation by Ith without Solid Links 19 W
Rated short circuit making capacity with solid links Icm 6.2 kA
Installation Mounting Bus bar system 40 mm (clamping bar)
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 160 A
Conventional Free Air thermal Current - Solid Links 200 A
Product Width 108 mm
Product Length 95.5 mm
Product Height 202 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 1.06 kg
Sell Pack Width 111 mm
Sell Pack Length 205 mm
Sell Pack Height 120 mm
Product Weight 1.06 kg
EAN/UPC 9008567006160

Certifications & Compliance

  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
NH fuse-switch disconnector MULTIBLOC® Size 00 160A 3-Pole switching Bus bar system 40mm Connection Clamp Strap clamp straps M8
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Bus bar system 40 mm (clamping bar)
Catalog No
2.074.000
Standards
CE, RoHS, UKCA, REACH
Model Number
2.074.000
Tariff Code
85362090
