Mersen P097970 Semiconductor Protection Fuse

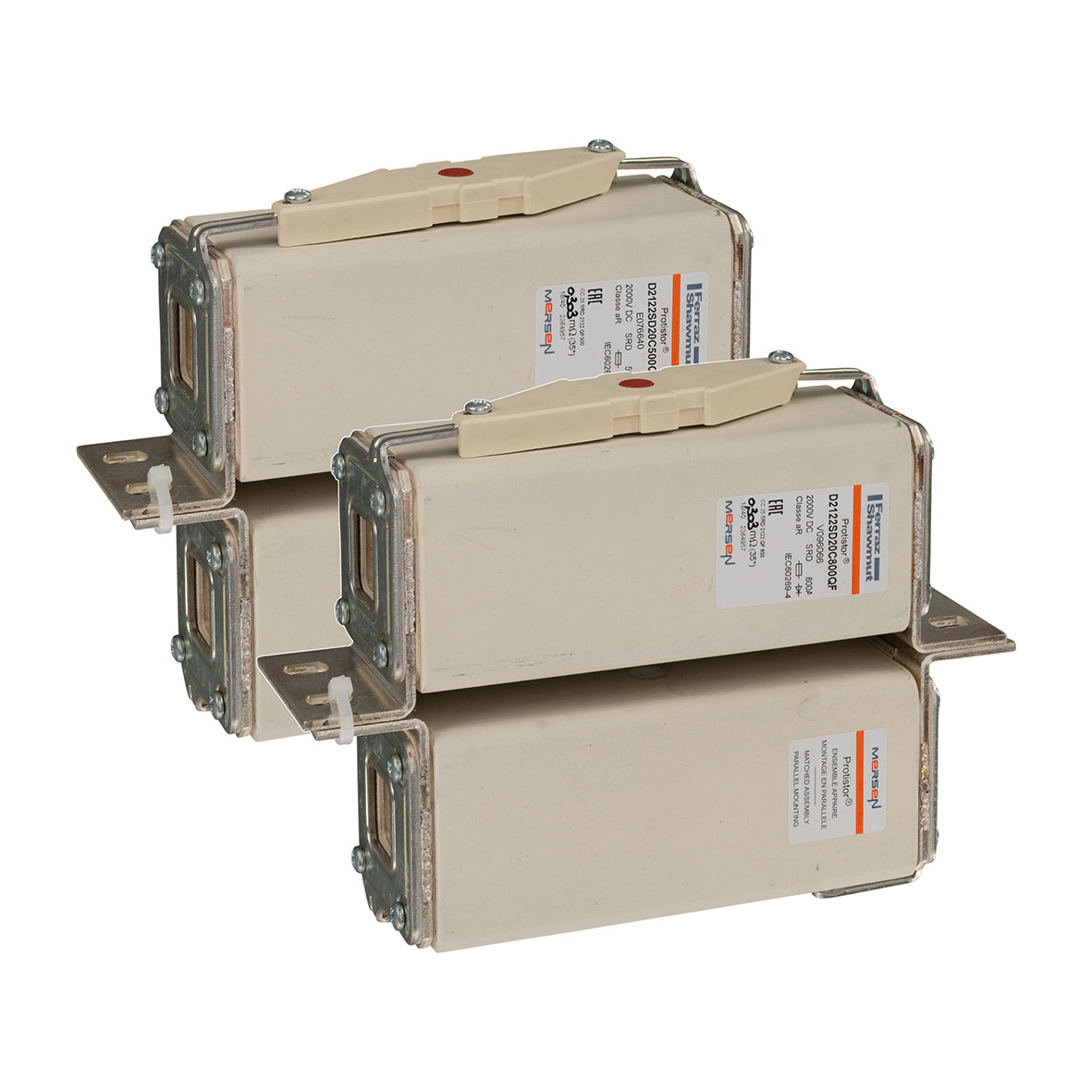

Mersen P097970 D2122SD20C700QF Square Body High-Speed Fuse Protistor® Size 2x122 aR 2000VDC IEC 700A Striker L Brackets

Name: Mersen P097970 D2122SD20C700QF Square Body High-Speed Fuse Protistor® Size 2x122 aR 2000VDC IEC 700A Striker L Brackets
Brand: Mersen
SKU: P097970
Price: 5395.34 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: P097970

Catalog No: D2122SD20C700QF

Series: Protistor® size 2x122 aR , 2000VDC

Tariff Code (HS): 85361090

Rated Current: 700 A

Rated Voltage: 2000 V

Stock: 0

Shipping Origin: Turkey EXW

$5,395.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen D2122SD20C700QF (P097970) is a square Body High-Speed Fuse Protistor® Size 2x122 aR 2000VDC IEC 700A Striker L Brackets from the Protistor® size 2x122 aR , 2000VDC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	D2122SD20C700QF
Rated voltage DC IEC	2000 V
Ampere Rating	700 A
ROHS Compliant	Yes
AC or DC	DC
Speed/Characteristic	aR
Fuse Size	2x122
Mounting	Bolted
Clearing I2t At Rated Voltage	592000 A²s
Melting I2t	106168 A²s
Max. Rated Breaking Capacity DC	100 kA
Indication System	Yes
Indication System Type	Striker
Connection/Terminal Material	Silver-Plated Copper
Connection/Terminal Type	L Brackets
Product group	High-Speed and Semiconductor protection fuses
Body/Insulating Material	Ceramic
Power Dissipation at Rated Current Value	332 W
Product Width	60 mm
Product Length	217 mm
Product Height	162.7 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	3.35 kg
Sell Pack Width	110 mm
Sell Pack Length	250 mm
Sell Pack Height	90 mm
Product Weight	3.35 kg
EAN/UPC	3605340150292

Certifications & Compliance

REACH
RoHS

Technical Details

Short Description

Square Body High-Speed Fuse Protistor® Size 2x122 aR 2000VDC IEC 700A Striker L Brackets

Rated Current (Ampere)

700 A

Rated Voltage (VAC)

2000 V

Mounting Type

Bolted

Catalog No

D2122SD20C700QF

Standards

REACH, RoHS

Model Number

D2122SD20C700QF

Tariff Code

85361090
