Siemens 6ES7392-1AJ00-0AA0 SIMATIC S7-300 Front Connector 20-Pole Screw PLC Connection Module

% $-56.35

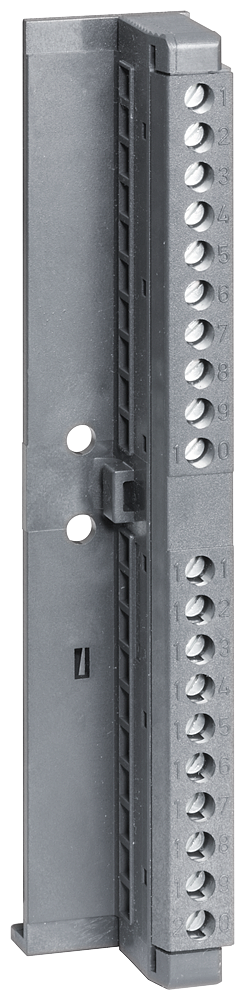

Siemens 6ES7392-1AJ00-0AA0 SIMATIC S7-300 front connector – 20-pole screw terminals
Siemens 6ES7392-1AJ00-0AA0 SIMATIC S7-300 front connector – 20-pole screw terminals

Siemens 6ES7392-1AJ00-0AA0 SIMATIC S7-300 Front Connector 20-Pole Screw PLC Connection Module

Brand: Siemens
Reference No: 6ES7392-1AJ00-0AA0
Catalog No: 6ES7392-1AJ00-0AA0
Series: SIMATIC
Tariff Code (HS): 85369010
Stock: 62
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$56.35

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7392-1AJ00-0AA0 is a SIMATIC S7-300 front connector with 20 screw terminals for wiring digital and analog signal modules, accepting conductor cross-sections from 0.25 to 1.5 mm². It mounts into the module's front slot, accepts single or twin conductors per terminal via shared ferrules, and is rated for -40 to +70C storage and 0 to 60C operation.

Technical Specifications

Order No. (MLFB) 6ES7392-1AJ00-0AA0
EAN 4025515061960
Brand Siemens
Series SIMATIC S7-300
Product Type Front Connector (20-pole, Screw)
Terminal Type Screw terminals
Number of Lines per Connection 1 (or 2 conductors up to 1.5 mm² combined via shared ferrule)
Conductor Cross-Section 0.25-1.5 mm² (AWG 24-16)
Tightening Torque 0.4-0.7 N·m
Dimensions (W x H x D) 23 x 131 x 36 mm
Weight 70 g
Ambient Temperature (Operation) 0 to +60 °C
Ambient Temperature (Storage/Transport) -40 to +70 °C

Selection Notes

This 20-pole screw-terminal connector is the manual-wiring counterpart to the S7-300 spring-terminal front connectors — pick it when the panel build standard specifies screw termination for signal-module field wiring rather than push-in. It fits any S7-300 signal module with a 20-pin front slot; matching the pole count to the module's I/O count avoids ordering the 40-pole version for a module that only needs 20.

Applications

Terminates field wiring for S7-300 digital and analog signal modules in panel builds using screw-terminal wiring standards.

Technical Details

Short Description
SIMATIC S7-300 front connector, 20-pole, screw terminals, 0.25-1.5 mm² conductors.
Mounting Type
Plug-in
Catalog No
6ES7392-1AJ00-0AA0
Delivery Date (Days)
1-2 days
Model Number
6ES7392-1AJ00-0AA0
Tariff Code
85369010
