Siemens 6ES7297-0AX30-0XA0 SIMATIC S7-1200 Battery Board BB 1297 RTC Backup PLC Accessory

% $-79.70

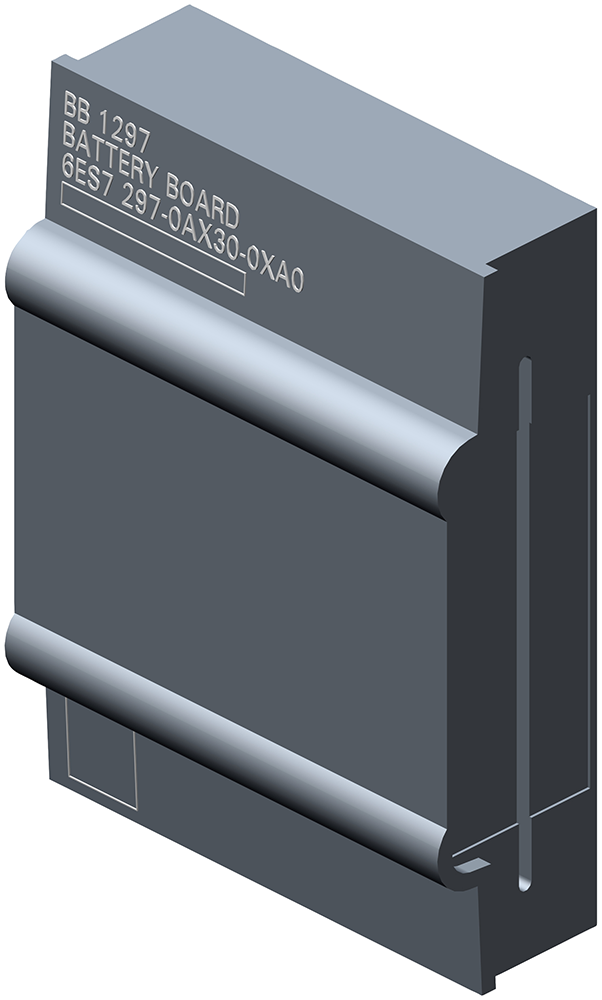

Siemens 6ES7297-0AX30-0XA0 Battery Board BB 1297 for S7-1200 CPU RTC backup
Siemens 6ES7297-0AX30-0XA0 Battery Board BB 1297 for S7-1200 CPU RTC backup

Siemens 6ES7297-0AX30-0XA0 SIMATIC S7-1200 Battery Board BB 1297 RTC Backup PLC Accessory

Brand: Siemens
Reference No: 6ES7297-0AX30-0XA0
Catalog No: 6ES7297-0AX30-0XA0
Series: SIMATIC S7-1200
Tariff Code (HS): 85389091
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$79.70

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7297-0AX30-0XA0 is a SIMATIC S7-1200 Battery Board BB 1297, a plug-in board for the signal-board slot of an S7-12xx CPU (firmware V3.0 or higher) that buffers the real-time clock over long power-off periods using a CR1025 battery, which is not included. It is rated IP20 and weighs 40 g.

Technical Specifications

Catalog No / SKU 6ES7297-0AX30-0XA0
Brand Siemens
Series SIMATIC S7-1200
Product type designation Battery Board BB 1297
Function Long-term buffering of the real-time clock; plugs into the signal board slot of S7-12xx CPUs, FW V3.0 or higher
Battery CR1025 (not included in scope of delivery)
Maintenance LED MAINT LED on the CPU signals battery replacement needed
Degree of protection IP20
Ambient temperature, operation -20 to 60 degC
Ambient temperature, storage/transport -40 to 70 degC
Relative humidity, operation at 25 degC, max. 95 %
Dimensions (W x H x D) 38 x 62 x 21 mm
Net weight 0.023 kg

Certifications & Standards

  • CE
  • CSA
  • FM
  • RCM
  • Marine

Selection Notes

This board only makes sense on installations where the RTC must survive extended power-off periods beyond the CPU's own 480-hour capacitor backup; short outages don't need it. Because it plugs into the signal-board slot rather than a full expansion slot, adding it does not reduce the CPU's signal-module or communication-module count. The CR1025 battery ships separately, so it has to be ordered alongside this board to be functional.

Technical Details

Short Description
SIMATIC S7-1200 Battery Board BB 1297: RTC long-term buffering, plug-in, CR1025 battery not included, IP20.
Mounting Type
Plug-in
Protection Type
IP20
Catalog No
6ES7297-0AX30-0XA0
Standards
CE mark, CSA approval, FM approval, RCM (formerly C-TICK), Marine approval
Delivery Date (Days)
10-15 days
Model Number
6ES7297-0AX30-0XA0
Tariff Code
85389091
