Schneider Electric LRE322 Easy TeSys Protect Differential 17-25 A Class 10A Thermal Overload Relay

% $-36.00

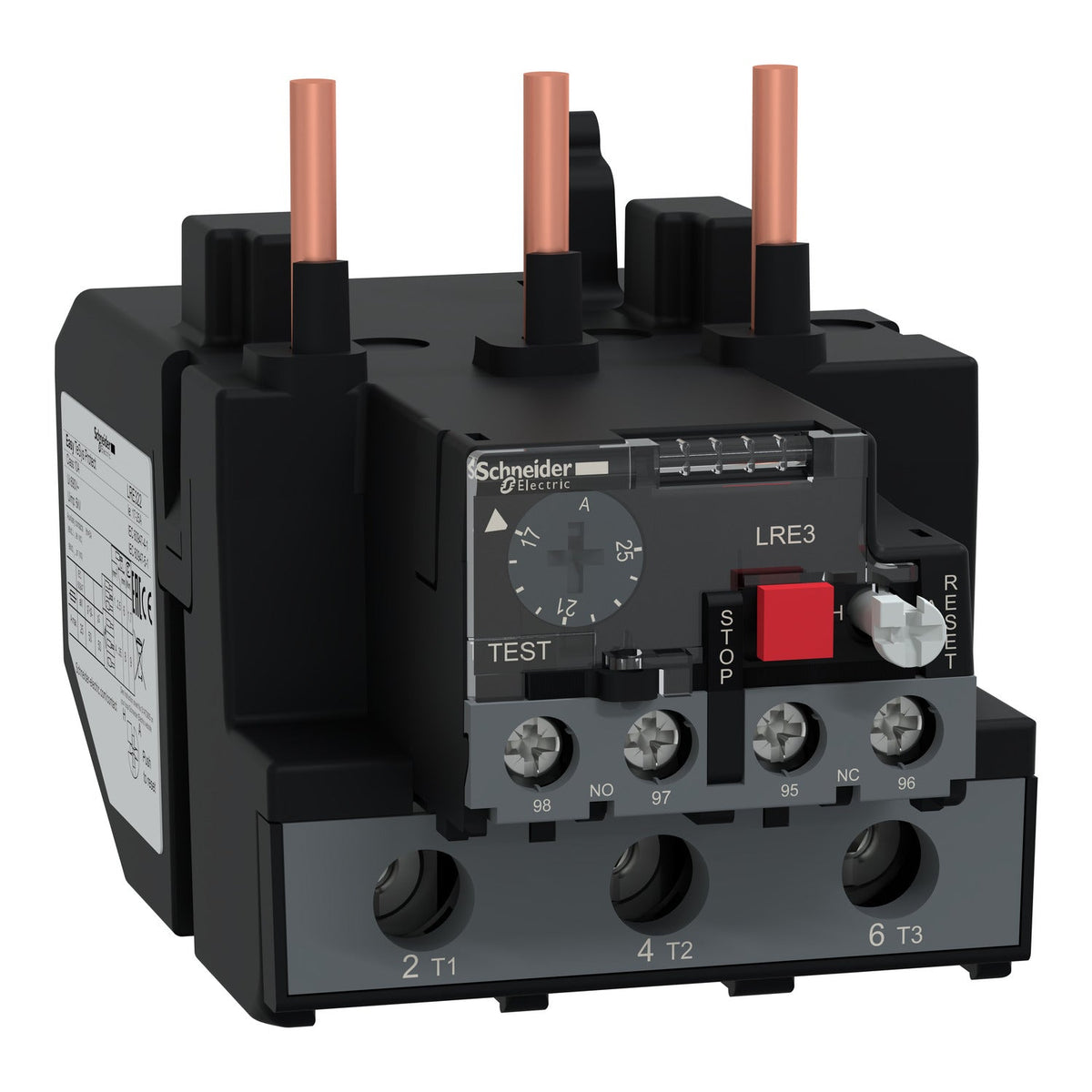

Schneider Electric LRE322 Easy TeSys Protect differential thermal overload relay - 17-25 A
Schneider Electric LRE322 Easy TeSys Protect differential thermal overload relay - 17-25 A

Schneider Electric LRE322 Easy TeSys Protect Differential 17-25 A Class 10A Thermal Overload Relay

Brand: Schneider Electric
Reference No: LRE322
Catalog No: LRE322
Series: Easy TeSys Protect
Tariff Code (HS): 853649
Rated Current: 25
Rated Voltage: 690 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$36.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LRE322 is an Easy TeSys Protect differential thermal overload relay with a 17-25 A class 10A thermal setting range, direct-mounted on LC1E40...95 contactors to protect 11 kW motors at 400 V against overload and phase loss.

Technical Specifications

Reference LRE322
Brand Schneider Electric
Range Easy TeSys Protect
Device short name LRE
Relay application Motor protection
Product or component type Differential thermal overload relay
Product compatibility LC1E40...95
Thermal protection adjustment range (Ir) 17-25 A
Thermal overload class Class 10A
Tripping threshold 1.14 +/- 0.06 x Ir
Phase failure sensitivity Trips at 130% of Ir on two phases, the third at 0
Auxiliary contact composition 1 NO + 1 NC
[Ith] conventional free air thermal current (signalling) 5 A
[Ue] rated operational voltage <= 690 V AC
[Ui] rated insulation voltage 690 V
[Uimp] rated impulse withstand voltage 6 kV
Motor protection (400 V AC) 11 kW
Mounting support Under contactor, or plate/rail with accessories
Dimensions (H x W x D) 54 x 70 x 113 mm
Net weight 0.47 kg
IP degree of protection IP20
Ambient air temperature for operation -20...60 °C (without derating)
Dielectric strength 6 kV at 50 Hz

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • EN/IEC 60947-5-1
  • GB/T 14048.1
  • GB/T 14048.4
  • GB/T 14048.5
  • EN/IEC 60335-1
  • EN/IEC 60335-2-40

Selection Notes

The 17-25 A setting covers 11 kW motors with LC1E40...95 EasyPact TVS contactors; step down to the 30-38 A LRE35 only if current rises above this range, or select a different LRE model sized to a smaller or larger contactor frame.

Technical Details

Short Description
Easy TeSys Protect differential thermal overload relay, 17-25 A, class 10A, for LC1E40...95
Rated Current (Ampere)
25
Rated Voltage (VAC)
690 V AC
Mounting Type
DIN Rail
Protection Type
IP20
Catalog No
LRE322
Delivery Date (Days)
30 days
Model Number
Easy TeSys Protect (LRE)
Tariff Code
853649
