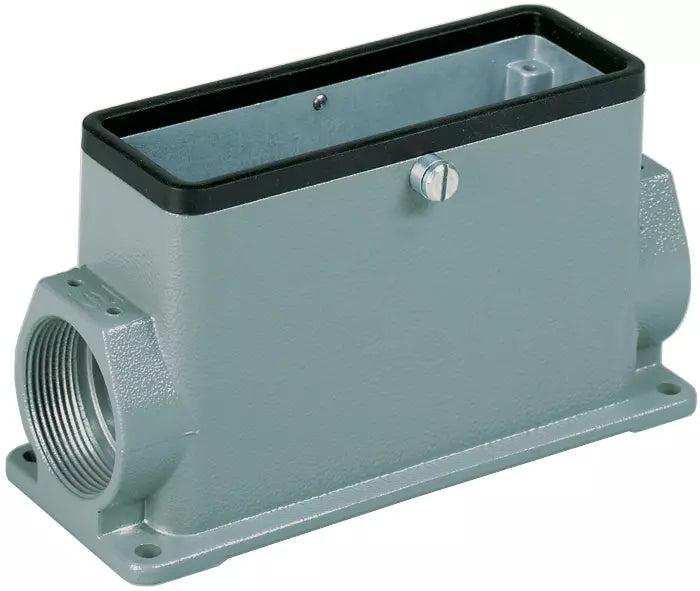

Harting 19300240282 Han B Central-Lever Surface Base 24B HC 2x M32 IP65 Heavy Duty Connector Housing

The Harting 19300240282 is a Han B surface mounted housing in size 24 B, rated IP65 and built in high construction for pairing with a central-locking-lever hood. Two M32 cable entries come in from the side face, and the aluminium die-cast body with an NBR seal is rated for continuous service from -40 to +125 °C.

Technical Specifications

Certifications & Standards

• CE
• DNV GL
• EN 45545-2

Selection Notes

This base takes a size 24 B Han B insert frame and pairs only with a matching central-locking-lever hood - a double-lever hood will not latch onto this base, so lever type has to match across the two halves. The two M32 side entries route both cables out from the same face, which helps in panel layouts where entry depth above the connector is tight. IP65 covers washdown-adjacent panel mounting; the double-lever PG-entry hood in the same frame size reaches IP66/IP67 when fully sealed cable glands are needed instead of M32 fittings.
