Schneider Electric LV850064SP MasterPact MTZ1 ULP Port Module Drawout Spare Air Circuit Breaker Accessory

% $-146.67

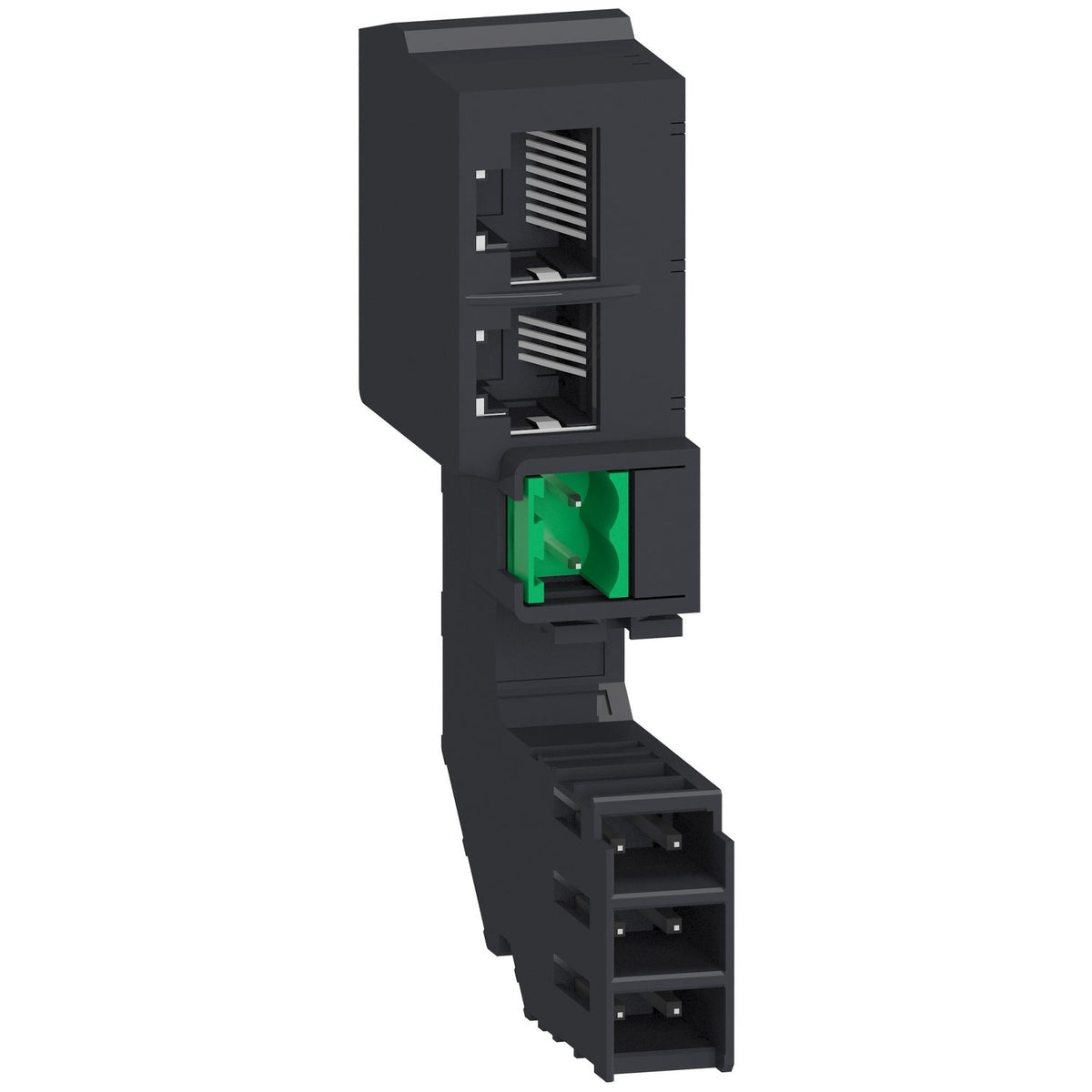

Schneider Electric LV850064SP ULP port module – drawout MTZ1
Schneider Electric LV850064SP ULP port module – drawout MTZ1

Schneider Electric LV850064SP MasterPact MTZ1 ULP Port Module Drawout Spare Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV850064SP
Catalog No: LV850064SP
Tariff Code (HS): 853890
Communication: ULP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$146.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV850064SP is a ULP port module supplied as a spare part for drawout MasterPact MTZ1 breakers, mounted on the chassis. It gives the breaker's control unit a ULP communication port, drawing up to 0.8 A and 14 W from the bus. and is supplied with 1 instruction sheet in packs of 32.

Technical Specifications

Reference LV850064SP
Brand Schneider Electric
Range MasterPact
Product or Component Type Connection adapter
Device Application Communication
Range compatibility MasterPact MTZ1
Circuit breaker mounting mode Drawout
Localisation on device Chassis
Maximum supply current 0.8 A
Power Consumption 14 W
Provided equipment 1 instruction sheet
Offer type Spare part
Number of units in package 32

Selection Notes

The LV850064SP is the drawout counterpart of the fixed-breaker LV850063SP on the MTZ1 frame, mounted on the chassis so the ULP port stays accessible with the breaker racked out. It draws the same 0.8 A, 14 W as the fixed MTZ1 version, unlike the MTZ2/MTZ3 drawout module which draws slightly more at 16 W. Fit it before adding any ULP-based communication accessory to a drawout MTZ1 breaker. Fitting it is the first step before adding any ULP-based accessory to a drawout MTZ1 breaker already in the field.

Technical Details

Short Description
ULP port module spare part, drawout MasterPact MTZ1, chassis mounted.
Mounting Type
Drawout
Catalog No
LV850064SP
Delivery Date (Days)
30 days
Model Number
ULP Port Module
Tariff Code
853890
