Schneider Electric LV850061SP MasterPact MTZ2/MTZ3 ULP Port Module Fixed Spare Air Circuit Breaker Accessory

% $-146.67

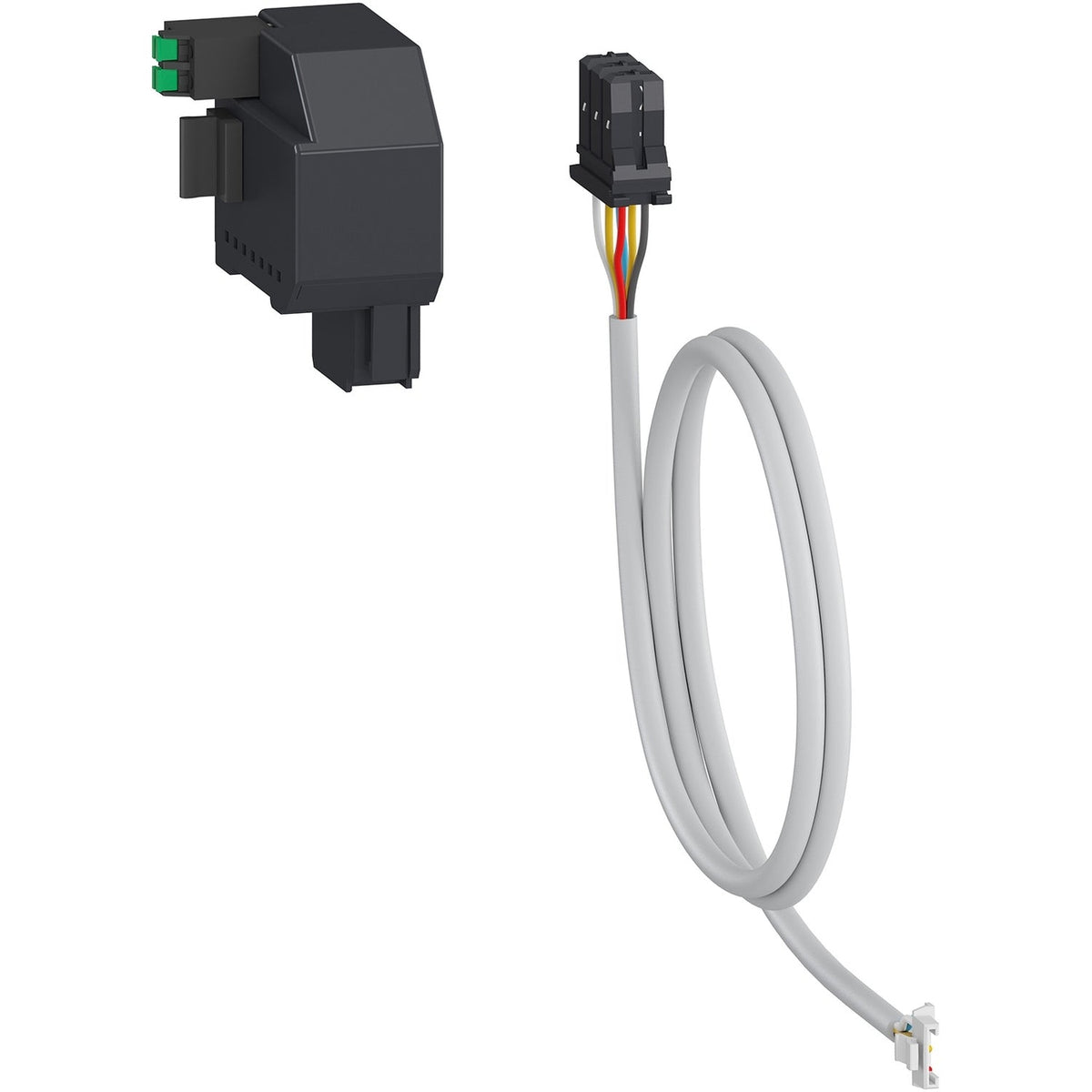

Schneider Electric LV850061SP ULP port module – fixed MTZ2/MTZ3
Schneider Electric LV850061SP ULP port module – fixed MTZ2/MTZ3

Schneider Electric LV850061SP MasterPact MTZ2/MTZ3 ULP Port Module Fixed Spare Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV850061SP
Catalog No: LV850061SP
Tariff Code (HS): 853890
Communication: ULP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$146.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV850061SP is a ULP port module kit supplied as a spare part for fixed MasterPact MTZ2 and MTZ3 breakers, mounted on the connection terminals. It gives the breaker's control unit a ULP communication port, drawing up to 0.8 A and 14 W from the bus, and is the entry point for fitting a ULP-based communication accessory such as the EIFE Ethernet interface module.

Technical Specifications

Reference LV850061SP
Brand Schneider Electric
Range MasterPact
Product or Component Type Connection adapter
Device Application Communication
Range compatibility MasterPact MTZ2, MTZ3
Circuit breaker mounting mode Fixed
Localisation on device On connection terminals
Maximum supply current 0.8 A
Power Consumption 14 W
Provided equipment 1 instruction sheet
Offer type Spare part
Number of units in package 32

Selection Notes

The LV850061SP is built for fixed MTZ2/MTZ3 breakers, mounted directly on the connection terminals rather than the chassis — the LV850062SP is the drawout equivalent mounted on the chassis instead. It is the entry point for ULP-based communication accessories such as the EIFE Ethernet interface module; without it, the breaker has no ULP port to connect to. Its 0.8 A, 14 W draw should be included in the control circuit's power budget for the breaker.

Technical Details

Short Description
ULP port module spare part, fixed MasterPact MTZ2/MTZ3, on connection terminals.
Mounting Type
Fixed
Catalog No
LV850061SP
Delivery Date (Days)
30 days
Model Number
ULP Port Module
Tariff Code
853890
