Schneider Electric LV847930SP MasterPact MTZ2/3 Rod Interlock Plate Spare Air Circuit Breaker Accessory

% $-421.45

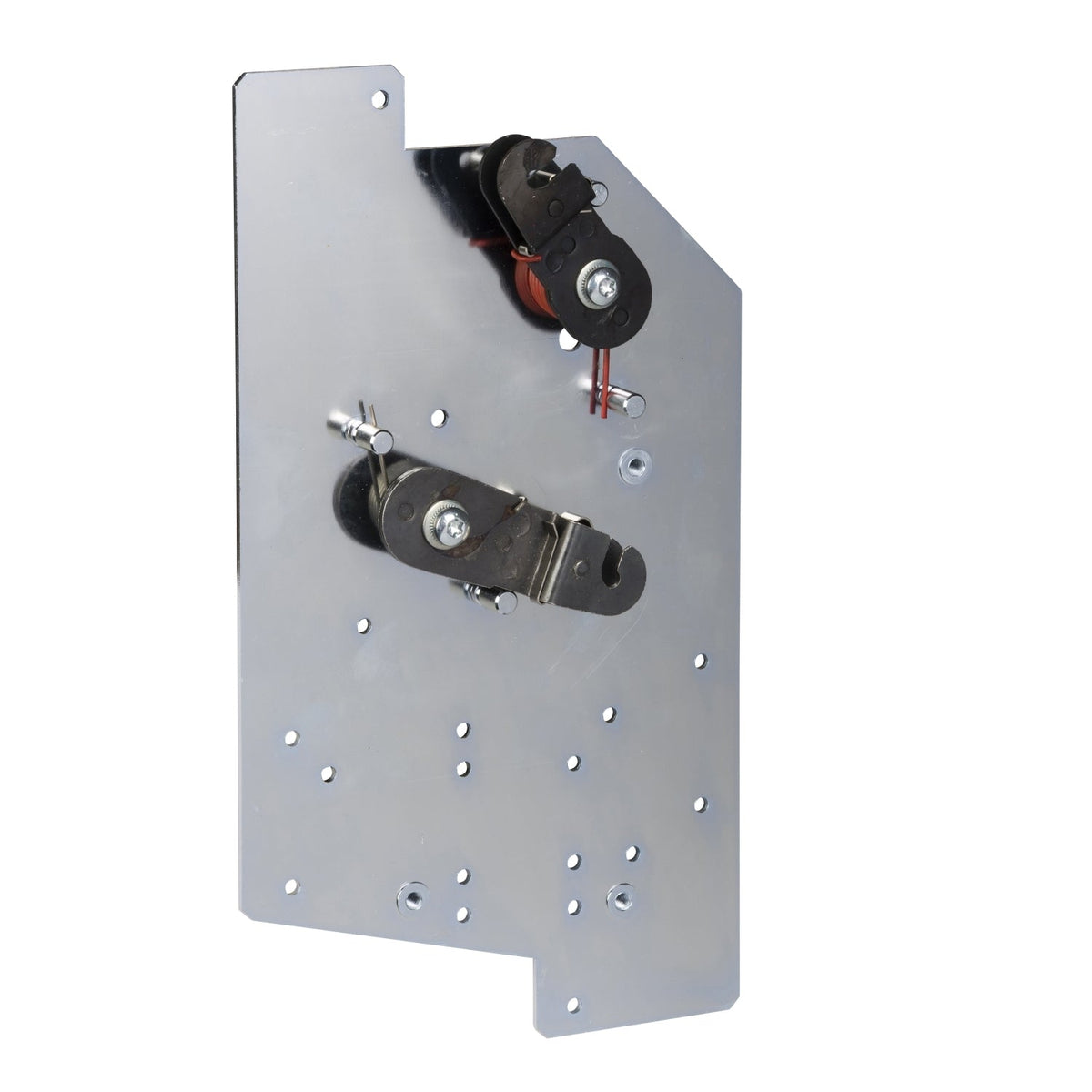

Schneider Electric LV847930SP rod interlock plate – MTZ2/MTZ3
Schneider Electric LV847930SP rod interlock plate – MTZ2/MTZ3

Schneider Electric LV847930SP MasterPact MTZ2/3 Rod Interlock Plate Spare Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847930SP
Catalog No: LV847930SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$421.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV847930SP is a mechanical rod interlocking adaptation plate supplied as a spare part for MasterPact MTZ2 and MTZ3 circuit breakers, fixed or drawout. It couples two breakers with a rigid rod so a mechanical interlock prevents both from closing at the same time. It is supplied with 1 instruction sheet for the field installation.

Technical Specifications

Reference LV847930SP
Brand Schneider Electric
Range MasterPact
Product or Component Type Rod interlock
Accessory / separate part category Locking accessory
Range compatibility MasterPact MTZ2, MTZ3
Mechanical interlocking With mechanical interlocking
Keylock destination Circuit breaker
Mounting Mode Fixed, Drawout
Type of coupling 2 devices
Provided equipment 1 instruction sheet
Offer type Spare part

Selection Notes

The LV847930SP ships with 2 adaptation fixture kits and uses a rigid rod rather than a cable, which makes it the simpler, lower-cost interlock choice when the two MTZ2/MTZ3 breakers sit close together on the same structure; the LV847926SP cable version is the alternative when the breakers are too far apart or misaligned for a rigid rod run. It couples exactly 2 devices and fits fixed or drawout breakers. Both the plate and the coupling hardware are included, so no separate cable or rod needs to be sourced.

Technical Details

Short Description
Mechanical rod interlock adaptation plate, MasterPact MTZ2/MTZ3 fixed/drawout, 2-device.
Catalog No
LV847930SP
Delivery Date (Days)
30 days
Model Number
Rod Interlock
Tariff Code
853890
