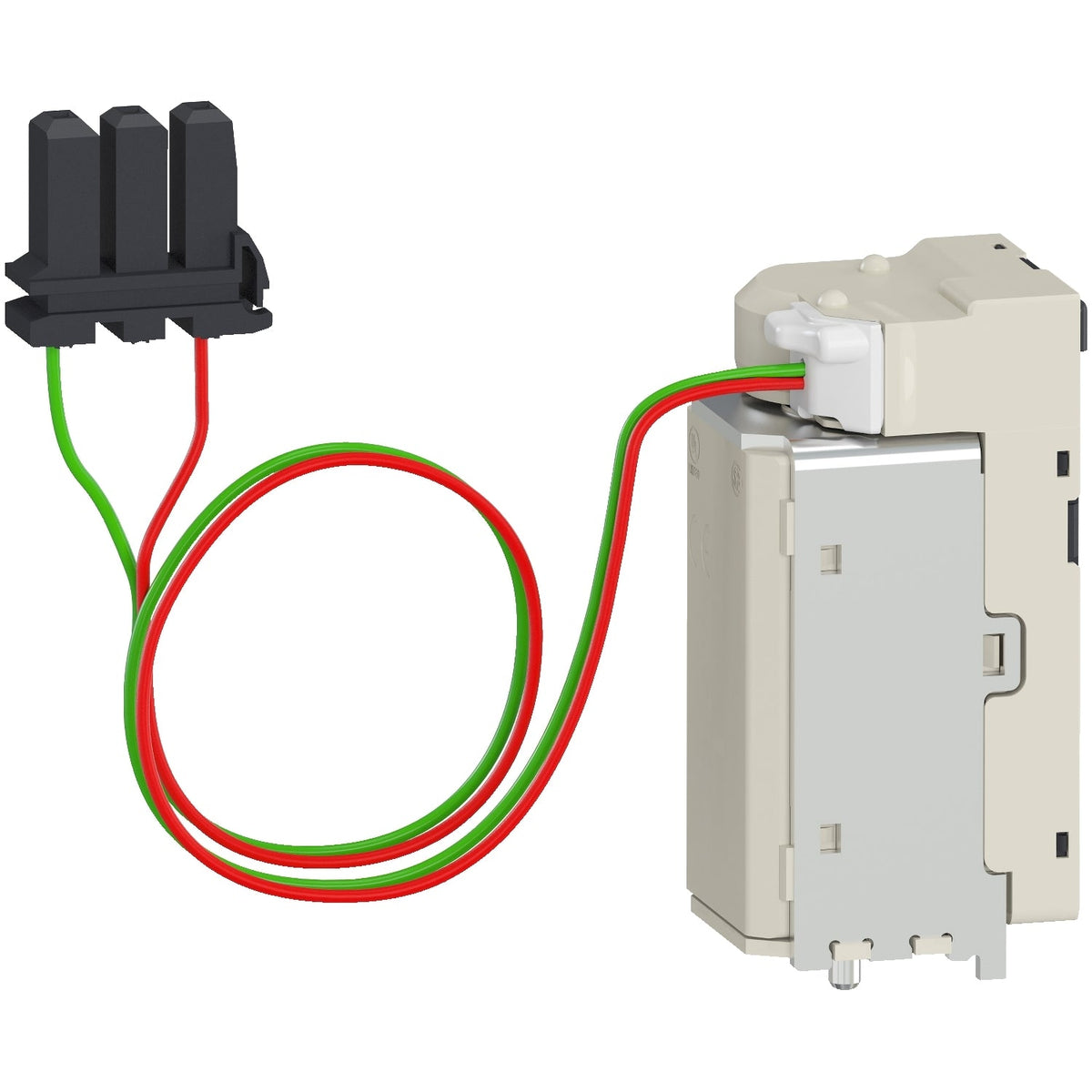

Schneider Electric LV847363 MasterPact MTZ Fixed MX Opening Coil 200-250V AC Air Circuit Breaker Accessory

% $-119.44
Schneider Electric LV847363 MasterPact MTZ fixed MX opening coil - 200/250 V AC / 200/250 V DC
Schneider Electric LV847363 MasterPact MTZ fixed MX opening coil - 200/250 V AC / 200/250 V DC

Schneider Electric LV847363 MasterPact MTZ Fixed MX Opening Coil 200-250V AC Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847363
Catalog No: LV847363
Tariff Code (HS): 853890
Rated Voltage: 200/250 V AC / 200/250 V DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$119.44

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV847363 is a fixed-mount MX opening voltage release for MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, wired for a 200/250 V AC / 200/250 V DC control supply and dedicated to the opening function only, with no diagnostic signalling and no compatibility with drawout-mounted frames.

Technical Specifications

Reference LV847363
Brand Schneider Electric
GTIN 3606480806483
Range MasterPact
Device Short Name MX
Product Type Voltage release
Device Application Control
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
Voltage Release Type Opening coil
Control Type Standard
[Un] Voltage Power Supply 200/250 V AC / 200/250 V DC, 50/60 Hz
Threshold Tripping Voltage 0.85-1.1 Un on opening
Holding Power Consumption 4.5 W
Circuit Breaker Mounting Mode Fixed
Max. Response Time (Opening) 60 ms on MTZ1, MTZ2, MTZ3

Selection Notes

LV847363 is a fixed-mount-only, single-function coil — order the drawout equivalent (LV8336xxSP series) instead if the breaker is on a cradle, and order the opposite-function coil separately if the application needs both opening and closing control, since this reference covers opening only.

Technical Details

Short Description
Schneider Electric LV847363 fixed MX opening voltage release coil, 200/250 V AC / 200/250 V DC, MasterPact MTZ1/2/3.
Rated Voltage (VAC)
200/250 V AC / 200/250 V DC
Mounting Type
Fixed
Catalog No
LV847363
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Fixed MX Opening Coil
Tariff Code
853890
