Schneider Electric LV833203SP MasterPact MTZ1 Rod Interlock Fixture Fixed Air Circuit Breaker Accessory

% $-521.09

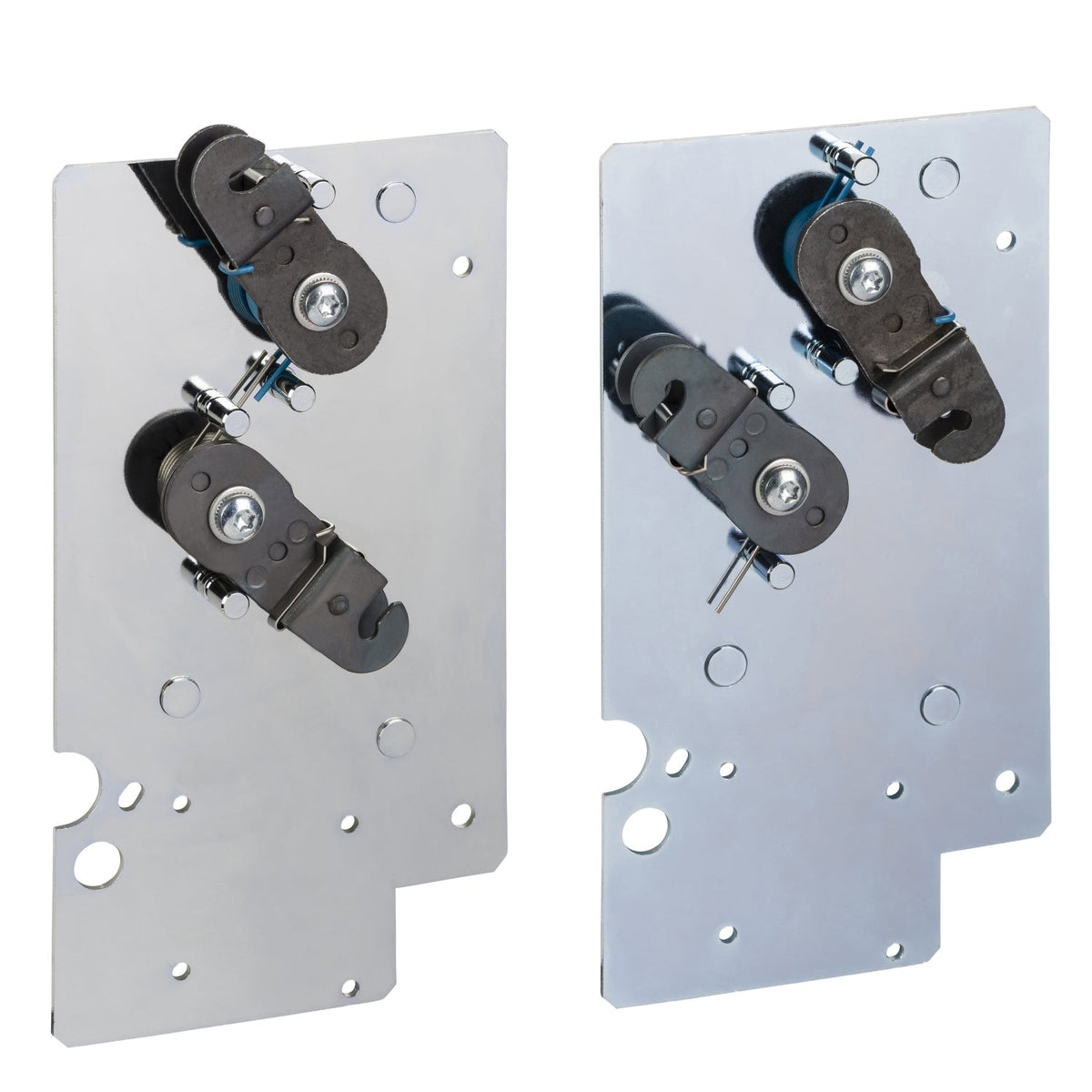

Schneider Electric LV833203SP MasterPact MTZ1 fixed rod interlocking adaptation fixture
Schneider Electric LV833203SP MasterPact MTZ1 fixed rod interlocking adaptation fixture

Schneider Electric LV833203SP MasterPact MTZ1 Rod Interlock Fixture Fixed Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833203SP
Catalog No: LV833203SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$521.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833203SP is a rod interlocking adaptation fixture for fixed MasterPact MTZ1 air circuit breakers, mechanically linking two breakers by rod so only one of the two sources can ever be closed at the same time in a changeover configuration. It is operated remotely and fits only the mounting mode — fixed or drawout — it is specified for.

Technical Specifications

Reference LV833203SP
Brand Schneider Electric
Range MasterPact
Product Type Rod adaptation fixture
Accessory Category Interlocking accessory
Range Compatibility MasterPact MTZ1
Mounting Mode Fixed
Source-Changeover Interlock Interlocking 2 sources by rod
Interlocked Device MasterPact MTZ1
Control Type Remote control
Offer Type Spare part

Selection Notes

LV833203SP is built for fixed MTZ1 breakers only — the rod geometry and fixture mounting points differ between fixed and drawout frames, so it cannot be swapped onto the other mounting mode. It covers a 2-source interlock; a 3-source changeover scheme needs the matching 3-source interlock kit instead.

Technical Details

Short Description
Schneider Electric LV833203SP rod interlocking adaptation fixture, fixed MasterPact MTZ1, 2-source.
Mounting Type
Fixed
Catalog No
LV833203SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ1 Rod Interlock Fixture (Fixed)
Tariff Code
853890
