Schneider Electric LV481015 VigiPacT TB35P Closed Toroid B Type 35 mm 80 A Relay Accessory

% $-1,051.43
Schneider Electric LV481015 VigiPacT TB35P closed toroid 35 mm 80 A – Relay Accessory
Schneider Electric LV481015 VigiPacT TB35P closed toroid 35 mm 80 A – Relay Accessory

Schneider Electric LV481015 VigiPacT TB35P Closed Toroid B Type 35 mm 80 A Relay Accessory

Brand: Schneider Electric
Reference No: LV481015
Tariff Code (HS): 85389099
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,051.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

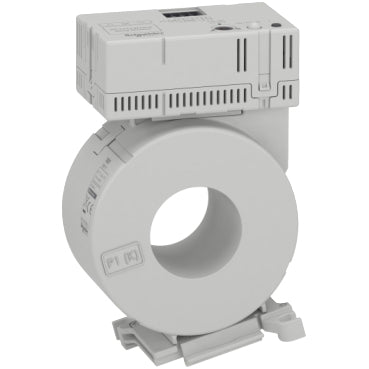

The Schneider Electric LV481015 is a VigiPacT TB35P closed toroid, a type B earth-leakage current sensor dedicated to VigiPacT RHB residual current protection and monitoring relays. It measures current up to 80 A with a 35 mm inner diameter and a 1/600 transformer ratio, weighing 0.390 kg.

Technical Specifications

Reference LV481015
Brand Schneider Electric
Range VigiPacT
Device Short Name TB35P
Product or Component Type Earth leakage current sensor (B type closed toroid)
Range Compatibility VigiPacT RHB residual current protection relay, RHB wiring kit
[Ie] Rated Operational Current 80 A
Network Frequency 50/60 Hz, 0-2000 Hz
[Icw] Rated Short-Time Withstand Current 25 kA for 0.5 s
Residual Short-Circuit Withstand Current 36 kA / 0.5 s (IEC 60947-2)
[Ui] Rated Insulation Voltage 800 V
Overvoltage Category III
[Uimp] Rated Impulse Withstand Voltage 8 kV
Mounting Mode Fixed (plain backplate or DIN rail)
Inner Diameter 35 mm
Dimensions (H x W x D) 130 x 97 x 61 mm
Net Weight 0.390 kg
IP Degree of Protection Body IP40, Connectors IP20
Ambient Temperature (Operation/Storage) -25...70 °C

Certifications & Standards

  • CE
  • IEC 60947-2

Selection Notes

The TB35P shares the TB35's 35 mm bore but is rated to 80 A instead of 63 A, giving more current headroom on the same conductor size; choose it over the standard TB35 when the protected circuit runs above 63 A. It mounts on either a plain backplate or a DIN rail and must pair with a compatible VigiPacT RHB relay.

Technical Details

Short Description
VigiPacT TB35P closed toroid, type B, 35 mm, 80 A, for RHB residual current relays.
Mounting Type
Fixed (plain backplate or DIN rail)
Protection Type
Body IP40 / Connectors IP20
Delivery Date (Days)
30 days
Model Number
TB35P Toroid
Tariff Code
85389099
