Schneider Electric LV481014 VigiPacT TB210 Closed Toroid B Type 210 mm 630 A Relay Accessory

% $-2,712.82
Schneider Electric LV481014 VigiPacT TB210 closed toroid 210 mm 630 A – Relay Accessory
Schneider Electric LV481014 VigiPacT TB210 closed toroid 210 mm 630 A – Relay Accessory

Schneider Electric LV481014 VigiPacT TB210 Closed Toroid B Type 210 mm 630 A Relay Accessory

Brand: Schneider Electric
Reference No: LV481014
Tariff Code (HS): 85389099
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,712.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

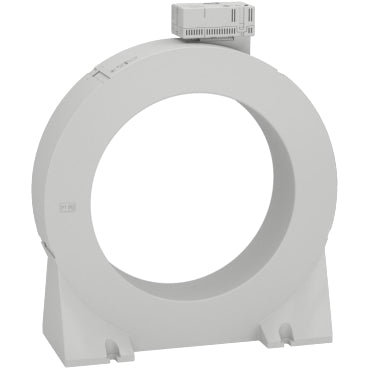

The Schneider Electric LV481014 is a VigiPacT TB210 closed toroid, a type B earth-leakage current sensor dedicated to VigiPacT RHB residual current protection and monitoring relays. It measures current up to 630 A with a 210 mm inner diameter and a 1/600 transformer ratio, weighing 4.290 kg.

Technical Specifications

Reference LV481014
Brand Schneider Electric
Range VigiPacT
Device Short Name TB210
Product or Component Type Earth leakage current sensor (B type closed toroid)
Range Compatibility VigiPacT RHB residual current protection relay, RHB wiring kit
[Ie] Rated Operational Current 630 A
Network Frequency 50/60 Hz, 0-2000 Hz
[Icw] Rated Short-Time Withstand Current 25 kA for 0.5 s
Residual Short-Circuit Withstand Current 36 kA / 0.5 s (IEC 60947-2)
[Ui] Rated Insulation Voltage 800 V
Overvoltage Category III
[Uimp] Rated Impulse Withstand Voltage 8 kV
Mounting Mode Fixed (plain backplate)
Inner Diameter 210 mm
Dimensions (H x W x D) 339 x 339 x 113 mm
Net Weight 4.290 kg
IP Degree of Protection Body IP40, Connectors IP20
Ambient Temperature (Operation/Storage) -25...70 °C

Certifications & Standards

  • CE
  • IEC 60947-2

Selection Notes

The TB210 is the largest-bore toroid in the VigiPacT B-type family, sized for heavy busbar runs on a 630 A circuit; the TB120 covers the next size down at 250 A. It mounts on a plain backplate and must pair with a compatible VigiPacT RHB relay.

Technical Details

Short Description
VigiPacT TB210 closed toroid, type B, 210 mm, 630 A, for RHB residual current relays.
Mounting Type
Fixed (plain backplate)
Protection Type
Body IP40 / Connectors IP20
Delivery Date (Days)
30 days
Model Number
TB210 Toroid
Tariff Code
85389099
