Schneider Electric LV481013 VigiPacT TB120 Closed Toroid B Type 120 mm 250 A Relay Accessory

% $-1,289.73
Schneider Electric LV481013 VigiPacT TB120 closed toroid 120 mm 250 A – Relay Accessory
Schneider Electric LV481013 VigiPacT TB120 closed toroid 120 mm 250 A – Relay Accessory

Schneider Electric LV481013 VigiPacT TB120 Closed Toroid B Type 120 mm 250 A Relay Accessory

Brand: Schneider Electric
Reference No: LV481013
Tariff Code (HS): 85389099
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,289.73

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

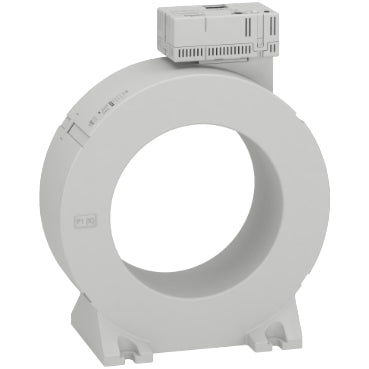

The Schneider Electric LV481013 is a VigiPacT TB120 closed toroid, a type B earth-leakage current sensor dedicated to VigiPacT RHB residual current protection and monitoring relays. It measures current up to 250 A with a 120 mm inner diameter and a 1/600 transformer ratio, weighing 1.460 kg.

Technical Specifications

Reference LV481013
Brand Schneider Electric
Range VigiPacT
Device Short Name TB120
Product or Component Type Earth leakage current sensor (B type closed toroid)
Range Compatibility VigiPacT RHB residual current protection relay, RHB wiring kit
[Ie] Rated Operational Current 250 A
Network Frequency 50/60 Hz, 0-2000 Hz
[Icw] Rated Short-Time Withstand Current 25 kA for 0.5 s
Residual Short-Circuit Withstand Current 36 kA / 0.5 s (IEC 60947-2)
[Ui] Rated Insulation Voltage 800 V
Overvoltage Category III
[Uimp] Rated Impulse Withstand Voltage 8 kV
Mounting Mode Fixed (plain backplate)
Inner Diameter 120 mm
Dimensions (H x W x D) 225 x 188 x 96 mm
Net Weight 1.460 kg
IP Degree of Protection Body IP40, Connectors IP20
Ambient Temperature (Operation/Storage) -25...70 °C

Certifications & Standards

  • CE
  • IEC 60947-2

Selection Notes

The TB120 covers a 250 A protected circuit through a 120 mm bore for larger busbar or cable bundles; step down to the TB60 for 125 A circuits or up to the TB210 for 630 A circuits. It mounts on a plain backplate and must pair with a compatible VigiPacT RHB relay.

Technical Details

Short Description
VigiPacT TB120 closed toroid, type B, 120 mm, 250 A, for RHB residual current relays.
Mounting Type
Fixed (plain backplate)
Protection Type
Body IP40 / Connectors IP20
Delivery Date (Days)
30 days
Model Number
TB120 Toroid
Tariff Code
85389099
