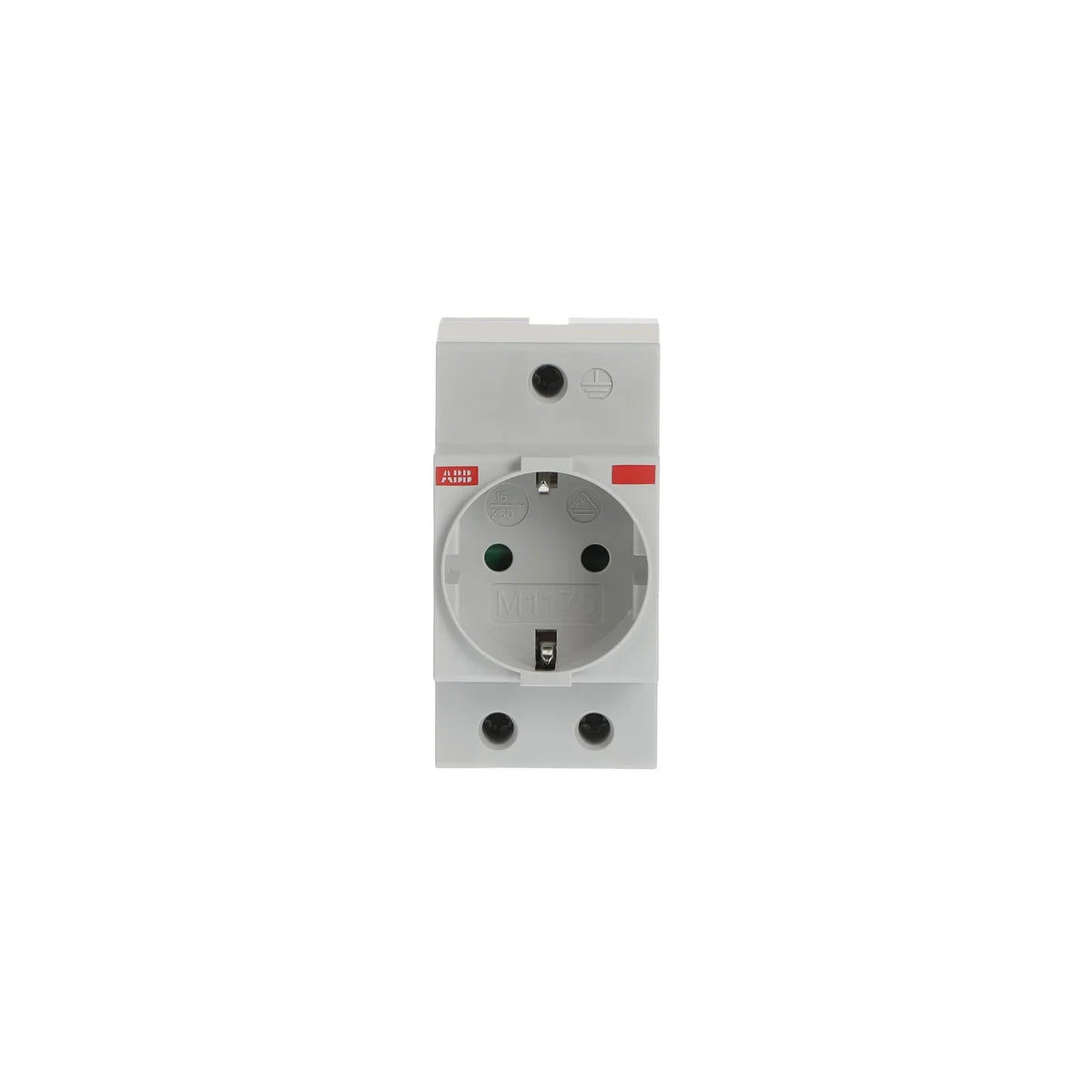

ABB 2CSM210000R0721 M1175 16A 250V Modular DIN Rail Socket Outlet for Distribution Board

The ABB M1175 (SKU: 2CSM210000R0721) is a 16A 250V modular socket outlet designed for direct DIN rail mounting inside distribution boards and control panels. The M1175 provides a convenient, standards-compliant power access point within enclosures, rated at 16 A and 250 V AC, with compact dimensions of 44 mm × 85 mm × 70 mm and a lightweight 92 g profile ideal for space-constrained panel installations.

Technical Specifications

Certifications & Standards

• CE: Conforms to applicable European Union directives for safety and electromagnetic compatibility
• VDE: Tested and certified by the German Association for Electrical, Electronic & Information Technologies
• RoHS: Compliant with EU Directive 2011/65/EU on the restriction of hazardous substances in electrical and electronic equipment
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances
• EU Directive 2011/65/EU: RoHS recast directive governing hazardous substance restrictions
• Amendment 2015/863: Compliance with the updated RoHS annex introducing additional restricted substances
• WEEE: Registered under the Waste Electrical and Electronic Equipment directive for proper end-of-life recycling

Applications & Use Cases

• Providing mains power access inside industrial distribution boards and control panels
• Powering service tools, laptops, and diagnostic equipment during panel maintenance
• Machine control enclosures requiring an internal socket for auxiliary equipment
• Building automation and HVAC control panels where a local power outlet is required
• Any DIN rail-based panel assembly where a modular, integrated socket is preferred over field-wired alternatives
