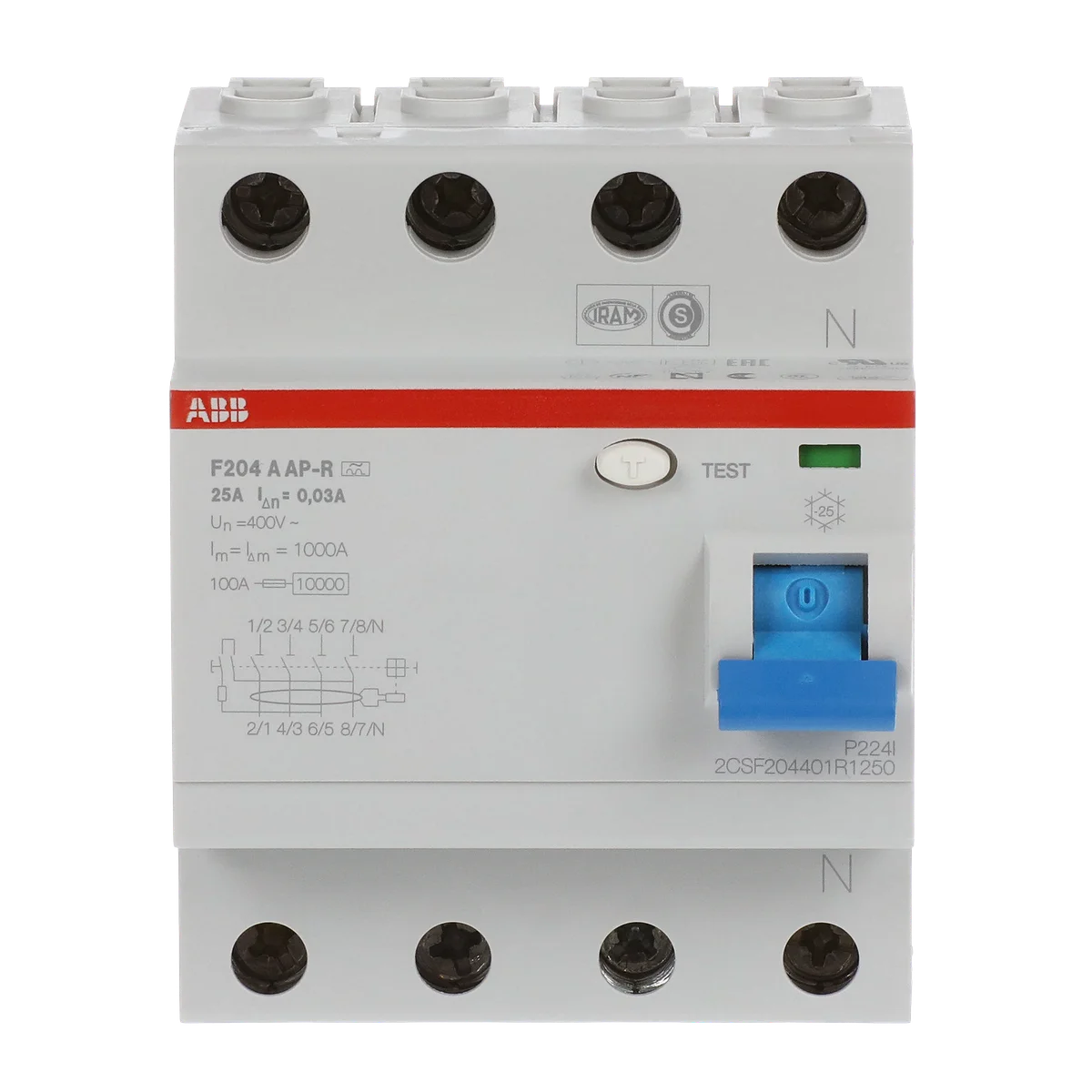

ABB 2CSF204401R1250 F204 A-25/0.03 AP-R 4P 25A 30mA Type A-APR Residual Current Circuit Breaker

The ABB F204 A-25/0.03 AP-R (SKU: 2CSF204401R1250) is a 4-pole 25A residual current circuit breaker (RCCB) from the F200 series, offering 30mA sensitivity with Type A-APR fault-current detection for reliable personnel and installation protection. Designed for DIN-rail mounting in industrial and commercial control panels, the F204 A-25/0.03 AP-R delivers robust residual current protection against both sinusoidal and pulsating DC fault currents, meeting the rigorous demands of modern electrical installations.

Technical Specifications

Certifications & Standards

• IEC 61008: International standard for residual current operated circuit breakers without integral overcurrent protection
• EN 61008: European harmonised standard for RCCB devices, ensuring compliance across EU markets
• IEC 60068-2: Environmental testing standard covering climatic and mechanical robustness
• EN 45555-82: European standard addressing sustainability and end-of-life provisions for electrical equipment
• EN 45555: General methods for the assessment of the ability of electrical and electronic household and office equipment to be repaired and upgraded
• CSA: Canadian Standards Association certification for North American market acceptance
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical safety
• WEEE: Waste Electrical and Electronic Equipment Directive compliant — supports responsible disposal and recycling

Applications & Use Cases

• Personnel protection against indirect contact in industrial control panels and distribution boards
• Protection of circuits supplying variable speed drives, inverters, and equipment with DC residual current components (Type A-APR)
• Commercial building electrical installations requiring 4-pole RCCB protection on three-phase systems
• Automation and control panel assemblies demanding compact DIN-rail mounted residual current protection
• Installations requiring compliance with IEC 61008 and EN 61008 in European and international markets
