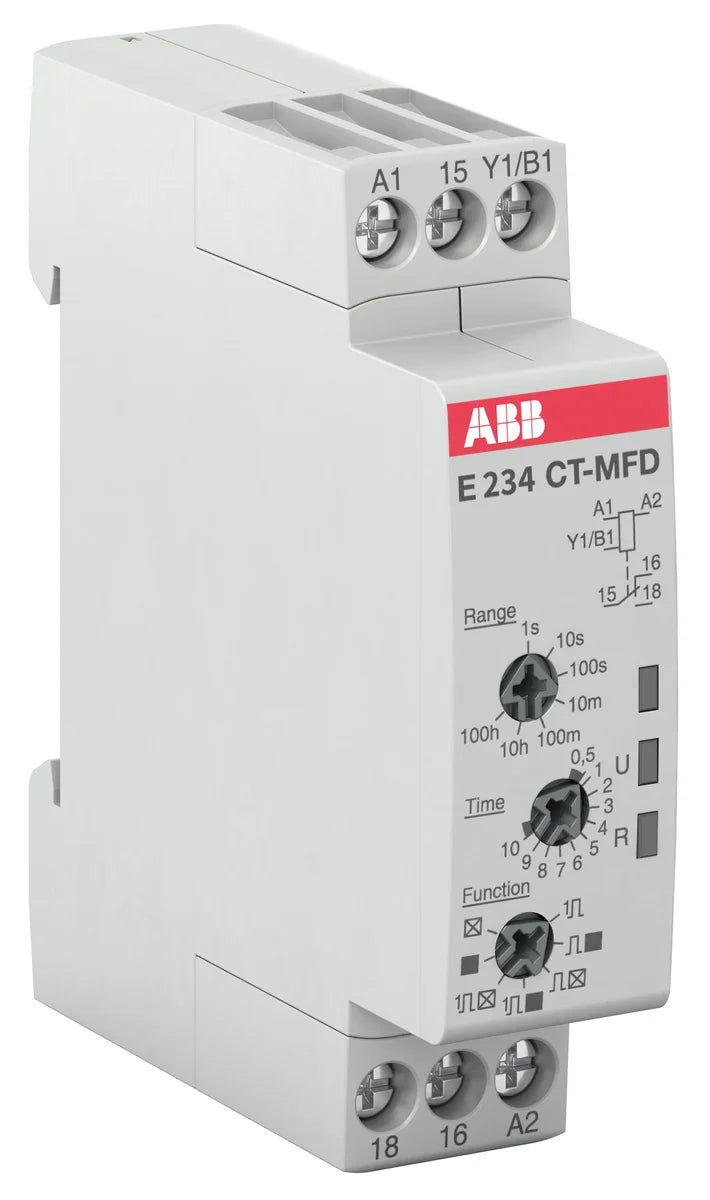

ABB 1SVR500020R0000 CT-MFD.12 Multifunction Timer Relay 1C/O 24-240VAC 24-48VDC 6A CT-D Series

The ABB CT-MFD.12 (SKU: 1SVR500020R0000) is a multifunction timer relay from the CT-D series, offering 1 changeover (1C/O) output contact rated at 6A/250V. The CT-MFD.12 supports a wide supply voltage range of 24–240V AC and 24–48V DC, making it highly versatile for industrial control panel applications across diverse automation environments. With compact 17.5 x 70 x 63 mm dimensions and a weight of just 53 g, it is designed for space-efficient DIN rail mounting.

Technical Specifications

Certifications & Standards

• CE: Complies with European CE marking requirements for industrial electrical equipment
• UKCA: UK Conformity Assessed marking for the UK market
• cULus: Listed by Underwriters Laboratories for both US (UL) and Canadian (cUL) markets
• UL 508: UL standard for industrial control equipment
• CSA / CAN/CSA C22.2 No.14: Canadian Standards Association certification for industrial control equipment
• CCC: China Compulsory Certification for the Chinese market
• IEC/EN 61812-1: International/European standard for time relays for industrial and residential use
• IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substance safety
