ABB 1SDA105012R1 PB 200mm 4pcs XT6 3p KIT PA.DI.PH.HI Kit Partitions Divider Phase High for Three-Pole

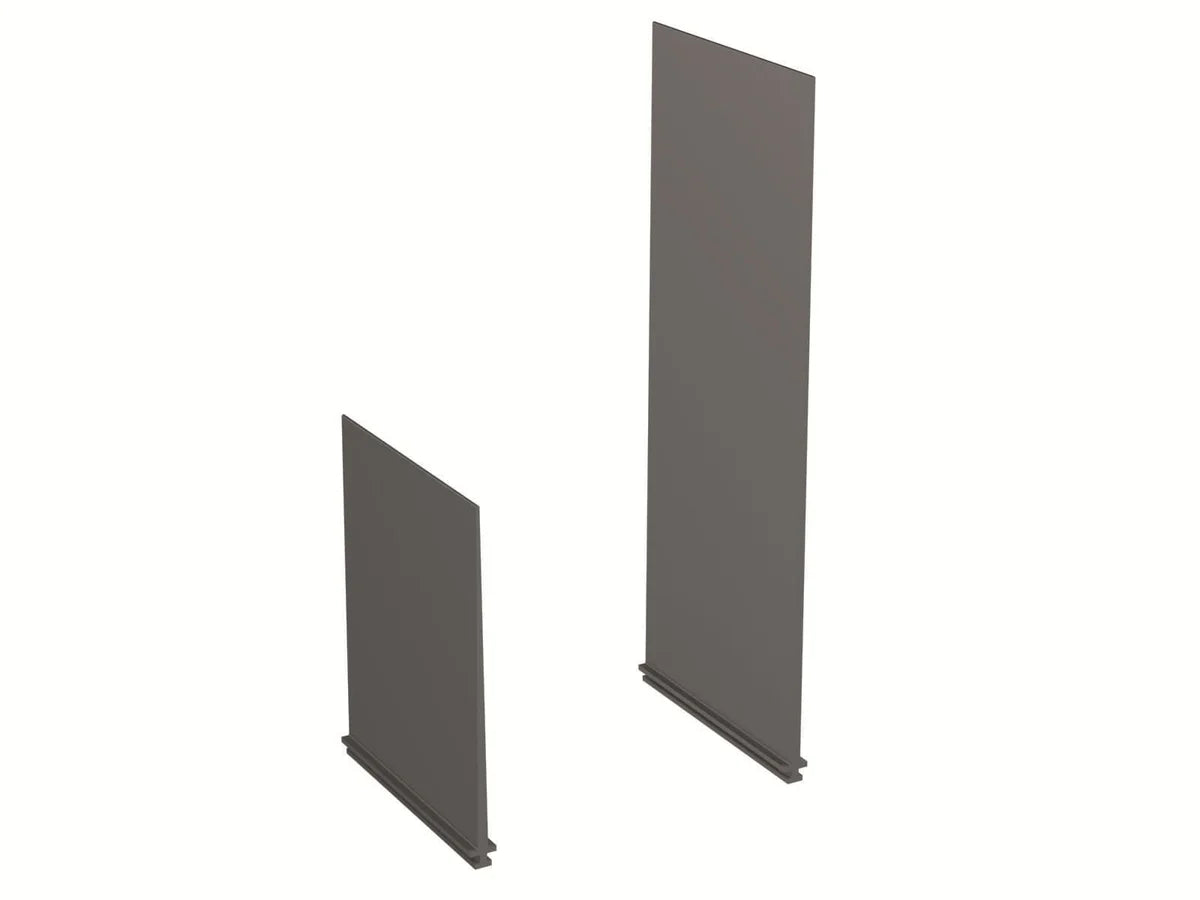

The ABB 1SDA105012R1 PB 200mm 4pcs XT6 3p KIT PA.DI.PH.HI is a factory-engineered kit of phase partitions and dividers designed specifically for ABB Tmax XT6 three-pole moulded case circuit breakers. This four-piece high-profile divider kit provides robust phase segregation within distribution assemblies, reducing the risk of phase-to-phase contact and ensuring safe, compliant installation in industrial switchgear panels.

Technical Specifications

Certifications & Standards

• CE: Compliant with EU low-voltage and electromagnetic compatibility directives
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical substances
• EU Directive 2011/65/EU & Amendment 2015/863: Full compliance with the updated RoHS framework including Annex II substances
• IEC 60947-2: Manufactured and tested in accordance with the international standard for low-voltage circuit breakers and associated accessories
• WEEE: Product registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life management

Applications & Use Cases

The PB 200mm 4pcs XT6 3p KIT PA.DI.PH.HI is used during the assembly and installation of ABB Tmax XT6 three-pole circuit breakers in industrial motor control centres (MCCs), main distribution boards (MDBs), and sub-distribution panels. The high-profile phase dividers create a physical barrier between live conductors, improving operational safety, facilitating maintenance, and meeting the creepage and clearance requirements mandated by IEC 60947-2. Typical deployment environments include manufacturing plants, infrastructure projects, commercial buildings, and process automation facilities where XT6-series breakers are specified.
